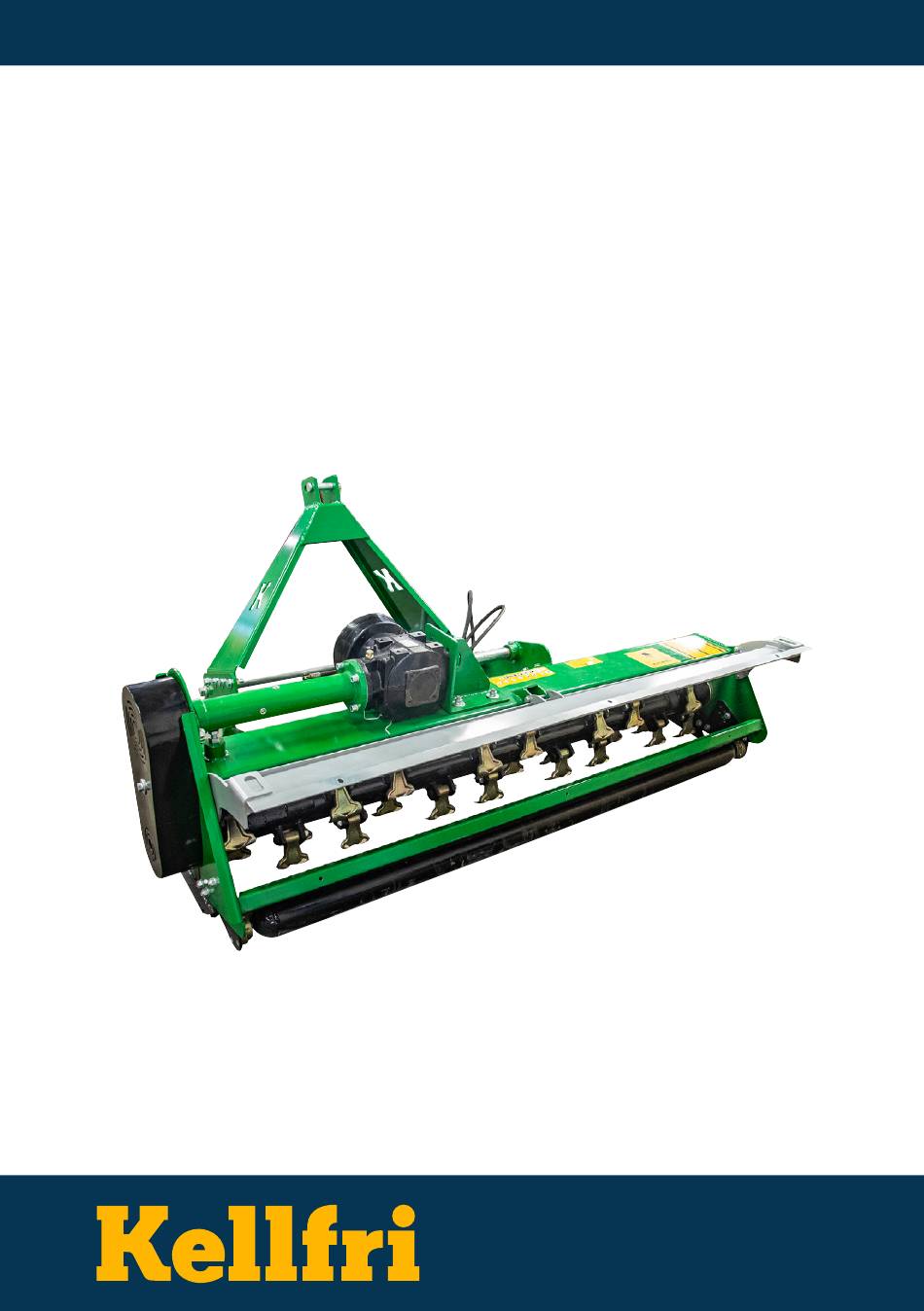

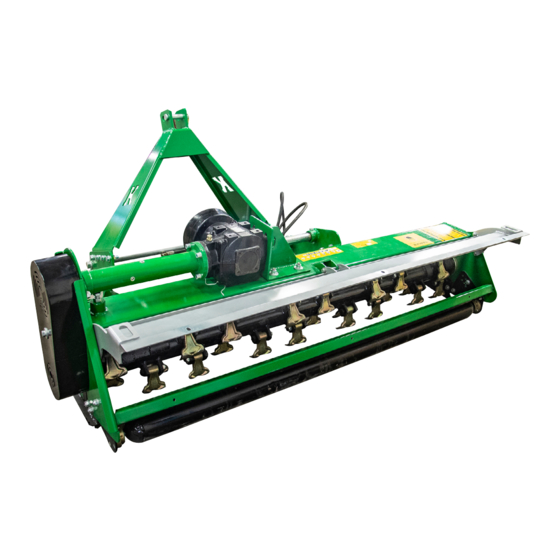

- Page 1 35-WKH195 FLAIL MOWERS Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the machine’s operating manual. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the general safety instructions, operating instructions and common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers who have stringent performance demands. -
Page 4: Safety Instructions
If the safety instructions or the operating manual are damaged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 37 SKARA, Sweden. Tel.: +46 511 242 50 The safety instructions can also be downloaded from Kellfri’s website: www.kellfri.co.uk... -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or product and only use it in the way described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. -
Page 7: Maintenance And Service
Do not use your hands to locate leaks. Use a piece of paper or cardboard to search for leaks. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. -
Page 8: When Using Machine/Equipment Connected To Tractor
FOR USING MACHINE/EQUIPMENT CONNECTED TO TRACTOR PAY ATTENTION TO THE FOLLOWING: • Carefully read the machine’s operating manual before using the machine! It is important that you understand the directions in the manual. • Keep the work area clear of children and other people. Moving parts increase the risk of accidents. -
Page 9: Machines/Equipment Connected To Hydraulics
MACHINERY/EQUIPMENT CONNECTED TO HYDRAULICS Be careful when you connect your machine or equipment to a hydraulic hose. DANGER! Pressurised oil and fuel leaks can penetrate skin and cause serious injuries. Do not use your hands to locate leaks. Use a piece of paper or cardboard to search for leaks. •... -
Page 10: Risks And Hazards Associated With The Use Of Grassland Machinery
RISKS AND HAZARDS ASSOCIATED WITH THE USE OF GRASSLAND MACHINERY Risk of crushing Observers can be injured when the machine is lowered in the cutting position. Pasture toppers have crushing points around the hinge areas and between the 3-point linkage and the main body. Respect the risk zone of 15 m! Rotating blades WARNING! Any person can risk injury by putting their hands or feet under the machine when it is... - Page 11 All unprotected rotating machine parts increase the risk of accidents. Accidents usually occur when loose-fitting clothing or long hair is caught and wrapped around rotating parts, such as PTO shafts or drive shafts on the machine. Ensure that all guards are correctly fitted. DRIVE SAFELY ON PUBLIC ROADS •...
-
Page 12: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high- pressure washer directly on the warning decal. If a part with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before carrying out work. -
Page 13: Chemicals
We recommend degreasing to achieve thorough cleaning and to remove all residues of old lubricant, which may contain destructive particles. The degreasing agent we supply at Kellfri is OKQ8, in a 20-litre can. Table of Contents >>... -
Page 14: Connecting
CONNECTING • Connect the machine to the tractor’s rear 3-point linkage. • Connect the PTO shaft. Secure the chain properly. • Connect hydraulic hoses. Raise the equipment and check its functioning. • Ready for use. TIGHTEN BOLTS AFTER A FEW HOURS OF OPERATION!!! SERVICE INTERVAL MEASURE... -
Page 15: Gearbox Wkh195
GEARBOX WKH195 REFILLING WITH OIL - TRANSMISSION OIL 80W-90 (1.5 L) LEVEL PLUG DRAINAGE PLUG CHECK AND TIGHTEN THE BELTS AT REGULAR INTERVALS. NEW MACHINE - CHECK AND TIGHTEN THE BELTS AFTER TWO HOURS OF OPERATION. CHECKING BELT TENSION BELT GUARD DISASSEMBLE BELT GUARD ILLUSTRATION 1 CHECK BELT TENSION REGULARLY... -
Page 16: Adjustment Of Belt
BELT ADJUSTMENT MOUNTING BOLTS ADJUSTMENT BOLT Loosen the mounting bolts for the gearbox and pulley. (See illustration.) Then adjust the adjustment bolt until the belts are adequately tightened. CHECK AND TIGHTEN COG BELT AFTER ONE HOUR OF OPERATION!! Re-tighten the pulley bolts at regular intervals. To keep the clamp bushing in place while replacing belt or pulley: •... -
Page 17: Grease Points
REFILLING PIPE WITH OIL - TRANSMISSION OIL 80W-90 (0.2 L) DRAINAGE PLUG IMPORTANT! LUBRICATE ALL GREASE POINTS BEFORE OPERATION. GREASE POINTS Lubricate the indicated grease nipples regularly, and every time you rinse off the machine, to remove the water that has penetrated into the bearings during the rinsing. Inadequate lubrication can result in unnecessary wear and mechanical damage. -
Page 18: Exploded Diagrams And Materials List
Table of Contents >>... - Page 19 ITEM NO. DESIGNATION QUANTITY ITEM NO. DESIGNATION QUANTITY Frame Hex lock nut M18x1.5 Gear back Hex key M10x70 Belt guard Hex key M12x40 Shaft pipe Gearbox 10 Flat washer Plate Hex key M10x35 Connection shaft Bakelite bolt M10-22 Shaft sleeve Slide rail, left Spanner 10x70 Slide rail, right...
- Page 20 Table of Contents >>...
- Page 21 ITEM NO. DESIGNATION QUANTITY Suspension pin Flat washer 22 Hex lock nut M22 Upper pin Spring pin Locking pin 11 R-clip 4 Blade shaft Hammer flails Oil seal 55x80x8 Sleeve Bearing housing UC207 Hex key M16x90 Hex lock nut M16 Connecting plate, left Connecting plate, right Roller...
-
Page 22: Flails
FLAILS The product is supplied with hammer flails. The possibility of replacing them with Y-flails is available as an option. Hammer flail - article no.: R35-VKM195H.001 Table of Contents >>... - Page 23 Y-flails - article no.: R35-SK180.003 Spacer - article no.: R35-VKM175.008 Table of Contents >>...
-
Page 24: Movement Pattern
MOVEMENT PATTERN Table of Contents >>... -
Page 25: Notes
NOTES: Table of Contents >>... - Page 26 NOTES: Table of Contents >>...
-
Page 27: Deviation Form
DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. -
Page 28: Warranty Terms And Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
