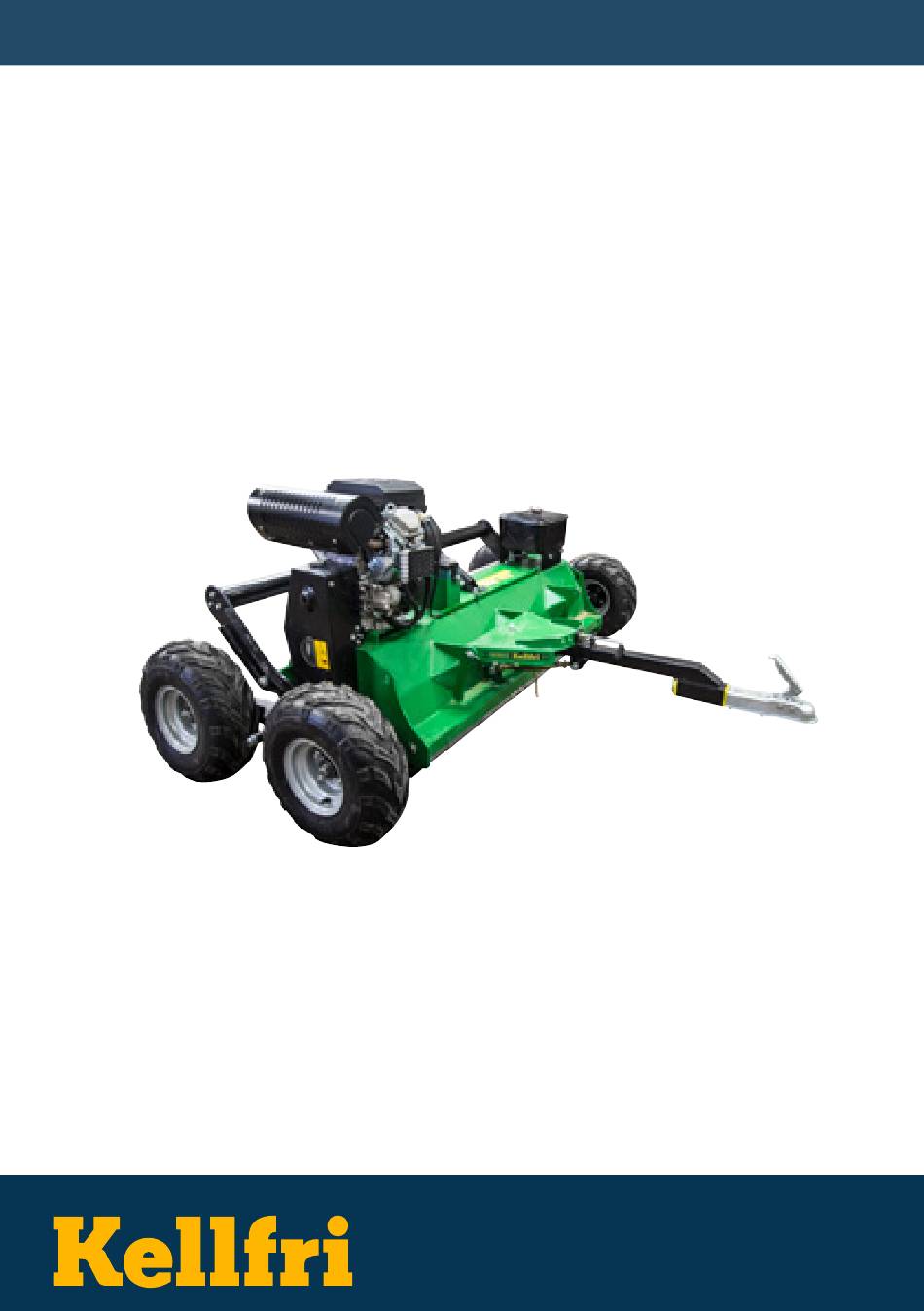

- Page 1 5-VKMATV150HXL ATV MOWER Read this manual carefully before using the product! Translated from the original...
-
Page 2: Table Of Contents
CONTENTS Introduction Product information Intended use Technical data Safety information Product safety information Surroundings Incase of emergencies Personal protection Warning labels Before use Operation Riskrisks and hazards of use of mowing machine 10-11 Setting of drawbar Start the engine Driving and speed After use Transport mode Transportation and storage... -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following general safety information, operating instructions and common sense, you will have many years of enjoyable use of the product. Kellfris equipment and products are aimed to be use by active farmers with high demands on functionality. -
Page 4: Product Information
PRODUCT INFORMATION • 32 Heavy Duty hammer flails weighing 354 g each: Robust cast flails for grass and saplings • Working width 150 cm • Strong bogie clevis with two 19x7-8 wheels on each side • Adjust the angle of operation with the turnbuckle under the tow bar •... -
Page 5: Intended Use
INTENDED USE The equipment is intended to only cut and trim grass. Make sure that there are no rocks or obstacles in the fields before you start the operation. Caution! The machine is delivered without engine oil! TECHNICAL DATA Working width 1500 mm Power requirements 23 hk... -
Page 6: Safety Information
Your retailer The general safety instruction is also available from Kellfris website: www.kellfri.co.uk Do not use this equipment if you are feeling sick, tired or in influence of alcohol. Nor if you are under the influence of strong medications or drugs, suffering from strong depression or severe mental illness. -
Page 7: Surroundings
WARNING! Never use a tool or product with defective safety equipment. SURROUNDINGS Check and make sure that the area is clear of people, children and objects before switching on or using the equipment. Risk of serious personal injury. Be especially careful if children are in the area where the equipment is being use or stored. -
Page 8: Warning Labels
WARNING LABELS Make sure that the warning labels are always visible, clean the warning labels if necessary. Do not wash with high pressure washer directly on the warning label. If any part of the decal is worn or label becomes frayed or otherwise unreadable, order new decals. Symbols and expla- nations of the common signs and decals placed on the machine. -
Page 9: Before Use
BEFORE USE Read the safety information and operating instructions carefully. Be sure that you understand the safety information, operating instructions and warning labels. Use common sense when using the machine and use appropriate personal protective equipment Always check the per- formance and the machine combination that are use. -
Page 10: Operation
OPERATION Only people who understand the safety information and operating instructions to operate this equipment or product. Be alert and cautious while working with the tool or product, and use only the tool or product in the manner described in the manual. When working with equipment that has moving parts, there is always the risk of injury. - Page 11 • When the operator releases the equipment, and try to clean or adjust the machine before the components have stopped rotating. • When the shear bolt in the protective device in the power take breaks and rotors still spinning while the PTO has stopped. Operator’s awareness is the key to safety around rotating parts.
-
Page 12: Setting Of Drawbar
SETTING OF DRAWBAR Drawbar coupling height of the towing vehicle may vary. To customize the settings, there is a screw rod in the drawbar which can be extended or shortened so that the mower is horizontal with the ground. (This brings the more efficient mowing). Turn/rotate the lever, extend the lever to raise the drawbar or shorten to lower it. -
Page 13: Start The Engine
START THE ENGINE • Read and understand the engine manual before using the machine. • Observe all safety precautions: Keep hands and feet away from blades and other moving parts. • Ensure that bystanders are at a safe distance from the machine. •... -
Page 14: After Use
When driving from normal work of the heavier mowing, it is normal that the engine runs heavy and the turning speed get slower. When this happen SLOW DOWN IMMEDIATELY so that the engine can resume the normal speed. Follow the instructions above at “Normal speed”. -
Page 15: Maintenance And Service
• Lubricate moving parts regularly. For maintenance of the engine, see separate manual. For spare parts: Contact Kellfri Service SERVICE INTERVALS / MAINTENANCE Check oil level before each run. Change the oil regularly in a range of about 100 hours... -
Page 16: Inspection
INSPECTION It is very important to regularly check the machine, in order to detect and prevent wear, tear, damage, etc. INSPECTION OF OIL LEVEL IN ENGINE When your mover is placed horizontal, open the oil filler cap and make sure that the oil level is up to the edge - see illustration 1. -
Page 17: Inspection Of Rotor Bearings
INSPECTION OF ROTOR BEARINGS Spin the rotor shaft by hand and feel any irregularities in the bearings. Moreover, try to move the axle from side to side to detect any gaps. If either or both of these occur, remove the axle caps to closer inspect the bearings. -
Page 18: Support Roller And Side Rails
SUPPORT ROLLER AND SIDE RAILS The main purpose of the support roller and side rails is to prevent damage. If one wheel goes into a hole, or if the ground becomes uneven between the wheels, the roll will bear the mower’s weight and thus prevents the blades from hitting the ground. -
Page 19: Assembly
ASSEMBLY The machine is delivered partially assembled. CAUTION! The machine is heavy! It is recom- mended that the assembly is carried out by 2 persons. Lifting device may be required. Risk of crushing! 1.) Remove the transport crate and remove all parts packed together with the machine 1x - cutting unit with motor 2x - Boggie with 2 wheels (right and left) 1x - Towing bar... -
Page 20: Recycling
3.) The drawbar can be mounted in different positions: in the center of the cutting unit straight behind the ATV or move the drawbar to the left for cutting aside. Chose the desired cutting position and install the drawbar. Note The turn buckel (Figure 4) must be mounted under the drawbar. - Page 21 TABLE OF CONTENTS...
-
Page 22: Machine Assembly
MACHINE ASSEMBLY TABLE OF CONTENTS... - Page 23 DESCRIPTION DESCRIPTION hexagon bolt M16×90 machine cover welding hexagon locking nut M12 cutter shaft welding hexagon locking nut M20 UC207 bearing with housing plain washer 8 16*9*1.6 plain washer spring washer 8 driving system hexagon bolt full thread support plate M8×20 10cun big washer 30*11*2.5...
-
Page 24: Driving System Assembly
DRIVING SYSTEM ASSEMBLY DESCRIPTION driving pulley clutch deep groove ball bearing[60000-2Z] circlip for hole A type 62 circlip for shaft B type 35 DESCRIPTION pulley cover welding hexagon bolt 3/8-24*35 cover split washer 9 tensioning wheel deep groove ball bearing[60000-2Z] tensioning wheel bracket welding circlip for hole A type 47... -
Page 25: Wheel Assembly
WHEEL ASSEMBLY DESCRIPTION wheel arm welding(right) wheel arm welding(left) connecting pipe welding plain washer 8 16*9*1.6 spring washer 8 hexagon bolt M8×20 hexagon locking nut M16 double bridge gasket wheel wheel flange welding deep groove ball bearing 6205-Z grease fitting M8×1 bolt M12X37 special nut M12 shaft cushion covers... -
Page 26: Towing Bar Assembly
TOWING BAR ASSEMBLY DESCRIPTION traction panel welding compressed spring shake handshandle elastic cylindrical pin 3×22 sleeve traction square tube welding joint pipe welding trailier coupler plain washer 12 hexagon bolt full thread M12×65 hexagon locking nut M12 plain washer 16 hexagon bolt M16×85 hexagon locking nut M16 glove 11*55... -
Page 27: Complaint Form
COMPLAINT FORM We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a com- plaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine. -
Page 28: Ec-Declaration Of Conformity
You are always welcome to give your feedbacks, reviews or ask us about our equipment and products. Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
