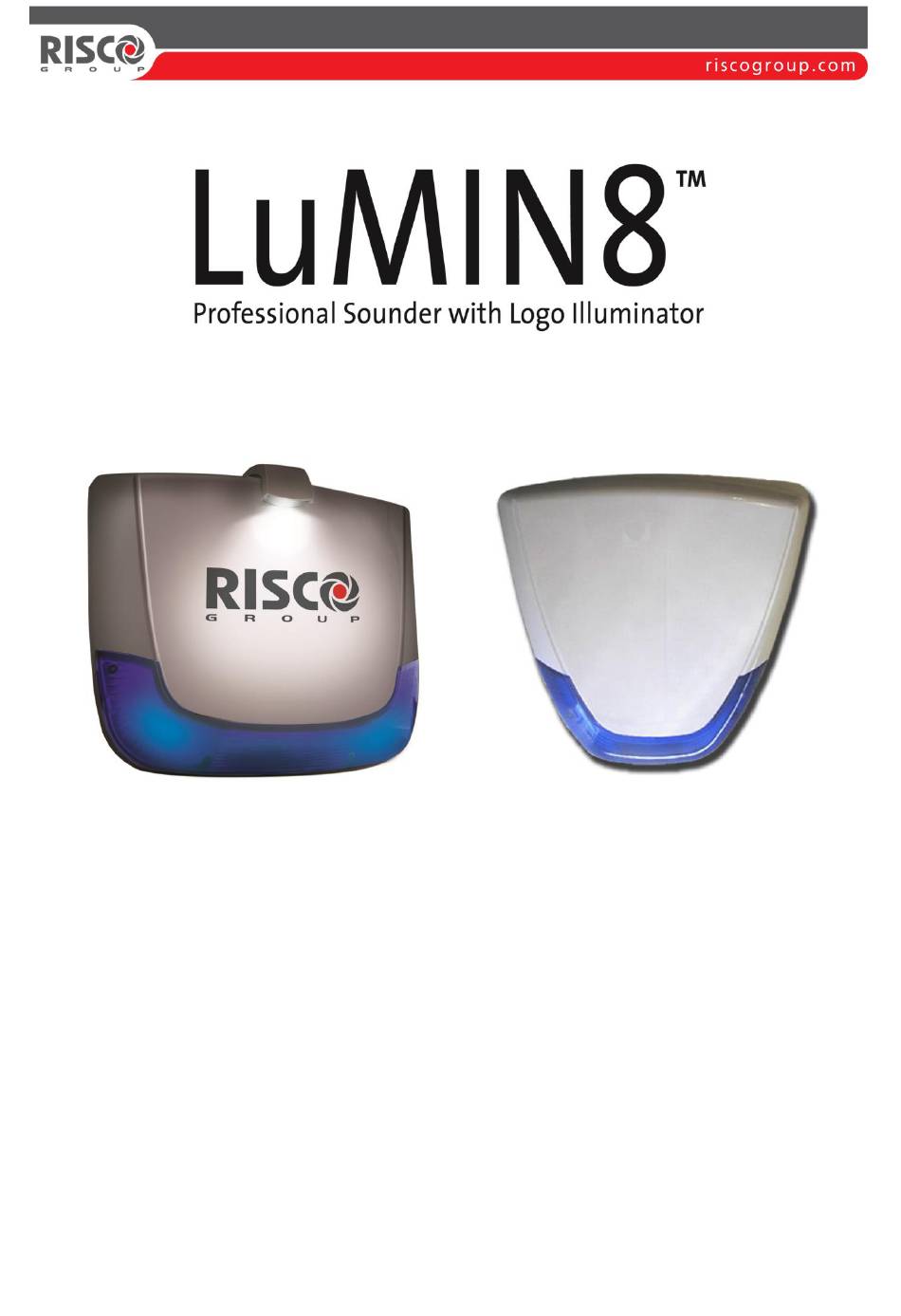

- Page 1 Installation Instructions Models: Lumin8 4012 Lumin8 Delta 4022...
- Page 2 LuMIN8 Installation Instructions...
-
Page 3: Table Of Contents
Table of Contents Introduction ............................4 Main Features............................4 Installation ............................4 Dipswitch Settings ..........................5 Terminal Block Wiring .......................... 6 Sounder Trigger Connection - Stand Alone mode ................7 Sounder Trigger Connection - Stand Alone Mode to GT Control Panel, Parallel Mode ...... 9 Sounder Trigger Connection - Serial Mode, GT Control panels ............ -
Page 4: Introduction
LuMIN8 can be connected to any alarm system, or it can be installed on serial BUS of RISCO Group’s ProSYS FreeCom Integrated Security System or GT series Control Panels. -
Page 5: Dipswitch Settings
Dipswitch Settings Note: All switches must be positioned before powering up. Description SW1: Used to select SAB or SCB mode for the sounder. SCB/SAB ON (SCB): Current for the sounder will be drawn from the sounder’s rechargeable battery. OFF (SAB): Current for the sounder will be drawn from the control panel. SW2-SW4: The operation of the dipswitches varies according to the sounder operation mode (BUS or A1, A2, A3... -
Page 6: Terminal Block Wiring
Description SW6: Stand Alone Mode (SW5 OFF): PRO/ACT Select the triggering command that will activate the sounder. ON: Positive trigger OFF: Negative trigger BUS (Serial) Mode (SW5 ON): Defines the BUS protocol when SW5 is set to BUS. ON (PRO): Connection to ProSYS Freecom. OFF (ACT): Connection to GT (NovaActive) control panels. -
Page 7: Sounder Trigger Connection - Stand Alone Mode
Terminal Description provided by the on-board battery. ACT BUS BUS (Serial) Mode (SW5 ON and SW6 Stand Alone Mode (SW5 OFF): OFF): TMPR Negative Tamper Return to the GT (NovaActive) control panels. This terminal will be used as a data output to the GT panel. - Page 8 and the 0V terminal. Connect Switched Negative (Bell-) Trigger signal from Control Panel to TRIG terminal on Sounder. Monitored Positive Trigger. On the Control Panel fit a 1K resistor (or 2 x 2K2 resistors in parallel) between the Trigger positive terminal and 0V.
-
Page 9: Sounder Trigger Connection - Stand Alone Mode To Gt Control Panel, Parallel Mode
Sounder Trigger Connection - Stand Alone Mode to GT Control Panel, Parallel Mode A maximum of 2 LuMIN8 sounders may be fitted to a single system. The illustration below is an example of a typical system using a maximum number of LuMIN8 sounders. Note: In the following illustration the maximum distance for the first sounder set to SAB using a 6 core cable is 35m for a single piezo or 25m for a twin piezo. -
Page 10: Sounder Trigger Connection - Serial Mode, Prosys Freecom
Sounder Trigger Connection - Serial Mode, ProSYS FreeCom BUS (Serial) connection to ProSYS FreeCom LuMIN8 Sounder HOLD PRO BUS DIPSWITCH TMF/EXT MON/NM PRO/ACT BUS/STD SCB/SAB Sounder defined as unit No. 2 BELL YEL GRN ProSYS FreeCom Sounder Trigger Connection - Serial Mode to GT Control Panel, Parallel Mode 2 Lumin8 Sounders connection to GT Panel in Serial mode using power supply for unit 2 LuMIN8 ID 2... -
Page 11: Technical Specification
Technical Specification Single Piezo Twin Piezo Input DC Power Regulated 13.0- 14.2V Quiescent Current 23mA 23mA Sounder current 350mA (Regulated) 450mA (Regulated) Sounder current (Quiet mode) 150mA 180mA Strobe current 10mA 10mA Battery charging current 15mA Speaker Sound level 111dbA 114dbA Strobe light Surface Light Technology SMT LED... -
Page 12: Appendix 1: Standard Terminal Wiring To Other Control Panels
Appendix 1: Standard Terminal wiring to other control panels LuMIN8 Hold - Hold + TRIG TMPR STB- ADE Optima Strobe- Scantronic +12V Bell Menivier Trig- Digital Audio (DA Systems) Pyronix STB- Texecom A1(Omnicron) SCB (0V) Bell Siren+ Bell Siren - SCB RT Strobe- Castle... -
Page 13: Appendix 2: Recommended Cable Distances Using 7/0.2 Alarm Cable In Serial Mode
Appendix 2: Recommended Cable Distances Using 7/0.2 Alarm Cable in Serial Mode Standard 7/0.2 alarm cable gives some limitation to the distance that a sounder may be wired away from the control panel for reliable operation. To overcome this limitation increase the number of cores used for the 0V and 12V feed to the sounder. -
Page 14: Appendix 3: Lumin8 Lamp Spotlight Installation
Appendix 3: LuMIN8 Lamp Spotlight Installation Also represents model: Lumin8 Delta 4022 Ø 3mm LuMIN8 Installation Instructions... - Page 15 (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this equipment which are not expressly approved by the party responsible for compliance (RISCO Group's.) could void the user's authority to operate the equipment.
- Page 16 Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website www.riscogroup.com or as follows: United Kingdom Belgium (Benelux) Tel: +44-161-655-5500 Tel: +32-2522-7622 E-mail: support-uk@riscogroup.com E-mail: support-be@riscogroup.com Italy China (Shanghai) Tel: +39-02-66590054 Tel: +86-21-52-39-0066 E-mail: support-it@riscogroup.com...
