Introduction

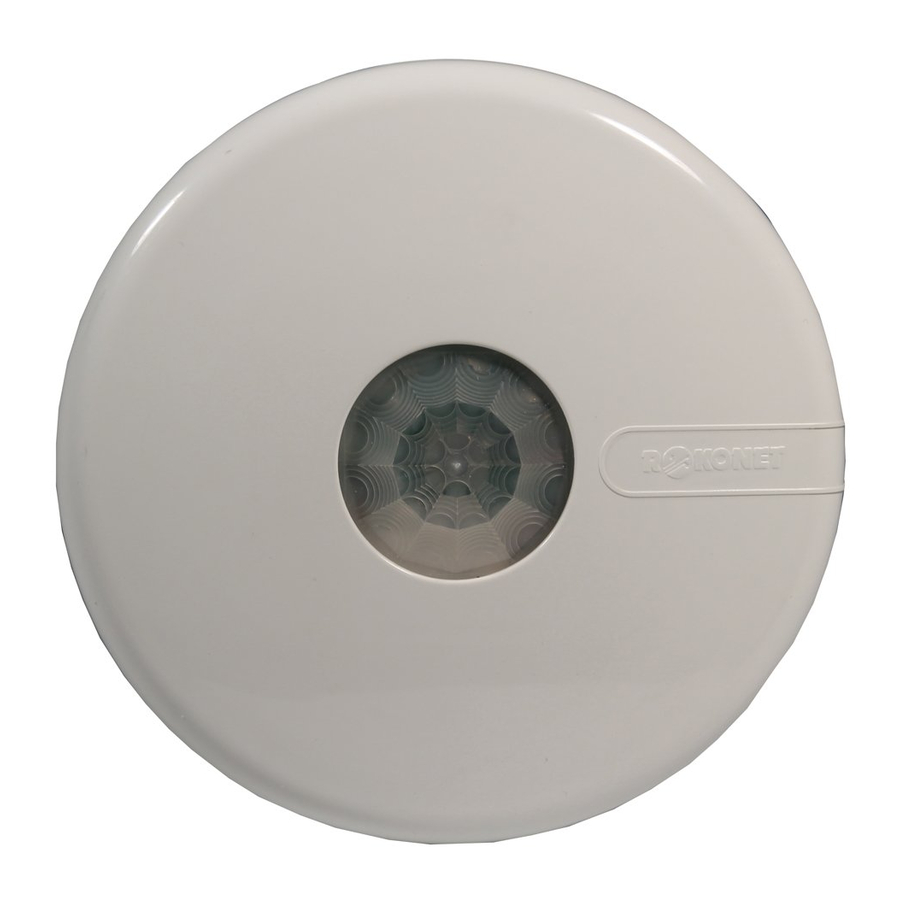

The LuNAR RK150DTG3 detectors are the ultimate ceiling motion detectors for professional installations, incorporating both Anti-Mask and Anti-Cloak™ Technologies (ACT™), adhering to new environmentally friendly guidelines. LuNAR RK150DTG3 detectors include built-in end-of-line (EOL) resistors to simplify installation.
The detector features 110º wide angle Fresnel lens, covering 360º field of view detection pattern.

Installation / Maintenance

  1. Remove the LuNAR front cover using the following procedure: Hold the base of the detector with one hand and twist the cover clockwise with the other hand until it stops (see Figure 1).
    Front Cover Removal
  2. Using a suitable tool, open the following knockouts on the detector's base (see Figure 2).
    General View

Note: If a back tamper is to be used it is mandatory to open the tamper back knockout.

  1. Set jumpers (see Jumper Setting section).


On the face of the Microwave, you will find a colored dot, this represents the Microwave channel. When installing two detectors in near locations, it is recommended that these dots (channels) are not of the same color. Example: Two Red should be avoided
Note: Reset the detector after each change made to the settings.

  1. Install the front cover back to its place (in a reverse sequence of the removal.
  2. Perform a Walk test (see Walk Test section).

Terminal Wiring

Terminal Wiring

Terminal Description
- 12V + 12VDC Input
ALARM N.C. Relay
TAMPER N.C. Tamper switch
FAULT/AM Normally Closed Relay: The FAULT/AM relay opens in the following events:
  • Detector is masked (Alarm relay is also opened)
  • Self test failed
  • Input voltage is lower than 8VDC
LED
LED operation remote control
When an "Activation Signal"** is applied to the LED input terminal, all LEDs will be disabled. LEDs are enabled if nothing is connected (unless LED jumper is OFF) or 0V/12V is applied (according to the LED/SET Input Jumper position, 12V or 0V).
SET
Remote SET/UNSET control
SET:If an "Activation Signal"** is applied, anti-mask detection is disabled (for Grade 2 configuration).
UNSET: If nothing is connected or 0V/12V is applied (according to the LED/SET Input Jumper position, 12V or 0V) anti-mask detection is enabled (see also "Green Line" and "Remote Self Test"

**Activation Signal-
If 12VDC is applied, and the LED/SET Input Jumper is on 12v position
- Or -
0V is applied and LED/SET Input Jumper is on 0V position

Jumper Settings

Schematic of EOL resistors

Jumper Function
SW1-1: LED Used to determine the operation of the detector's LEDs
ON: (Default) LEDs are enabled, allowing LED control via the LED input terminal
OFF: LEDs are disabled
SW1-2: ACT Used to determine if ACT mode is enabled or disabled
ON ACT Enabled

Do not use ACT™ mode if you are expecting that there will be moving objects outside the required protected area, a corridor for example.
OFF (Default) ACT Disabled.
SW1-3: Green Line
The LuNAR RK150DTG3 includes a 'Green Line' feature that follows environmental guidelines by avoiding surplus emission. This feature disables the MW channel when the alarm system is "Unset", thus eliminating surplus MW emission while the premises is occupied.
ON OFF (Default) Green Line feature is enabled: To deactivate the MW module in "UNSET" period, the LEDs must also be remotely disabled by the LED terminal.
Note: When 'Green Line' is on (Microwave off), the detector will still activate (PIR only) Green Line feature in disabled: MW is constantly in use.
SW1-4: Self Test Used to test detection technologies.
ON (Local Self Test): If there is no alarm detection in the PIR channel for a period of one 1 hour, the detector will self-test. If the local self test fails, the FAULT/AM Relay will activate.
OFF (Default) (Remote Self Test): Remote Self Test is activated when the SET terminal is switched from SET to UNSET mode. For remote self test pass, the Alarm Relay will activate for 5 seconds.
J1 - Tamper EOL
J2 - Alarm EOL
J3 - FAULT / AM EOL
Jumpers J1 and J2 allow the selection of Tamper and Alarm resistance (1K, 2.2K, 4.7K, 5.6K, 6.8K) according to the control panel (see Figure 4). Jumper J3 allows the selection of 12K for Fault/Anti-Mask.
Follow the terminal block connection diagram in Figure 4 when connecting the detector to a Double/Triple End Of Line (DEOL/TEOL) Zone.
J4 - SET/LED Used to determine the polarity of the external input. INPUT
See Terminal Wiring section, LED and SET Terminals
See Terminal Wiring section, LED and SET Terminals

Walk Test


The detector cover MUST be securely fitted before applying power.

  1. Two minutes after applying power (warm-up period), walk test the Detector over the entire protected area to verify proper operation of the unit (see Figure 5).
    Microwave Range
  2. The MW range can be adjusted by using the potentiometer located on the PCB. It is important to set the potentiometer to the lowest possible setting that will still provide enough coverage for the inner boundary protected area.

LEDs Display

LED State Description
Yellow
On PIR detection
Flashing Trouble in PIR channel
Green
On MW detection
Flashing Trouble in MW channel
Red
On ALARM
Flashing Fault / Anti-Masking detection
Note: Anti Masking detection is operational in "Unset" mode only (see Terminal Wiring section, SET terminal).
All LEDs Flashing (consecutively) At power-up, the LEDs will ash consecutively until the end of the warm-up period (2-3 minutes). At the end of the warm-up period the RED LED will continue to ash until the end of AM initiation.

Note: AM and Trouble indications continue until masking is removed or trouble is corrected.

Technical Specification

Electrical
Current consumption 16mA at 12VDC (Typical) 41mA at 12VDC (max.)
Voltage requirements 9 -16VDC*
Alarm contacts 24VDC, 0.1A
Tamper contacts 24VDC, 0.1A
FAULT/AM contacts 24VDC, 0.1A
Environmental
RF immunity According to EN50130-4
Operating temperature -20°C to 55°C (-4F to 131F)
Storage temperature -20°C to 60°C (-4F to 140F)
Optical
Filtering White Light Protection
Physical
Size Ø 135 x 27 mm (Ø 5.3 x 1 in)
Weight 200 gr. (7 oz.)

*Power to be supplied by 5A max. power source using safety approved wires, with a min Gauge of 20AWG.
