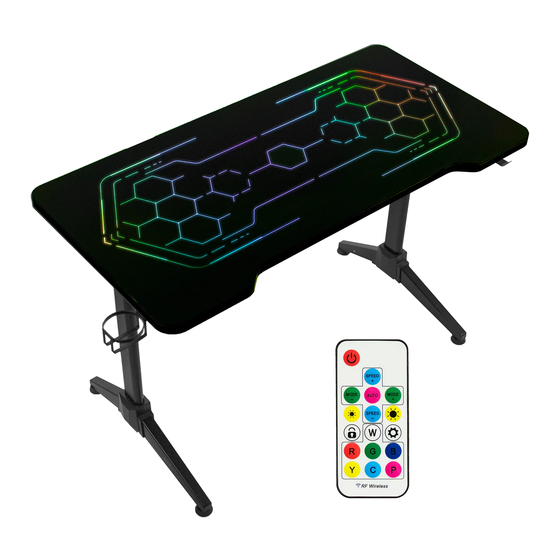

Black 48" x 24" Gaming Desk with RGB Lighting
Instruction Manual
SKU: DESK-GM48BG
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-gm48bg
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo DESK-GM48BG
Summary of Contents for Vivo DESK-GM48BG
- Page 1 Black 48” x 24” Gaming Desk with RGB Lighting Instruction Manual SKU: DESK-GM48BG Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-gm48bg GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 ASSEMBLY STEPS STEP 1 Place Desktop (A) upside down on a flat surface and place Left Leg (B) and Right Leg (C) over mounting holes in Desktop (A). Secure using M6x16 Screws (S-C) and Allen Wrench (T-A).
- Page 4 STEP 2 Mount Left Crossbar (D) to Left Leg (B) and Right Crossbar (E) to Right Leg (C), and secure the other end to Desktop (A) using M6x16 Screws (S-C) and Allen Wrench (T-A).
- Page 5 STEP 3 Stick Cable Clips (S-D) along the backside of the desk in desired locations. Mount Hook (F) and Cup Holder (G) to predrilled holes on eith side of Desktop (A) using ST4.2x14 Screws (S-B) and a phillips screwdriver. STEP 4 Insert Power Cable (I) into Desktop (A).
- Page 6 STEP 5 Mount Cable Cover (H) to Desktop (A) using ST3.5x20 Screws (S-A) and a phillips screwdriver. Connect Power Cable (I) to USB wall charger, or other device. NOTE: Power Cable (I) can be routed through either slot on Cable Cover (H).
- Page 7 STEP 6 Peel and stick Magnet (S-E) to the back of Remote (J) and secure to desk frame assembly. If necessary, the foot pads can be adjusted to level the desk assembly.
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
