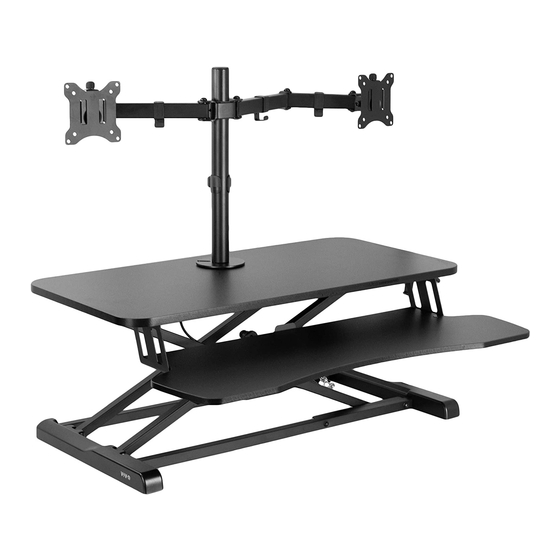

Black Desk Riser with Dual Monitor Mount
Instruction Manual
SKU: DESK-V000K-M2
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v000k-m2
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V000K-M2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo DESK-V000K-M2

  • Page 1 Black Desk Riser with Dual Monitor Mount Instruction Manual SKU: DESK-V000K-M2 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v000k-m2 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
  • Page 3 CAUTION! Keep monitor and Follow the cable Leave enough slack Raise desktop laptop base fully on routing instructions to in cable to allow for slowly to keep the desktop. avoid the potential to full range of vertical items stable. pinch cables. motion (15”...
  • Page 4 STEP 3 Raise Desk (A) by lifting the handle on the right side of the frame. STEP 4 Place Keyboard Tray (B) on the metal brackets on Desk (A). Secure Keyboard Tray (B) to brackets using M5x10mm Screws (S-B) and tighten with a Phillips screwdriver. STEP 5 Apply Cable Clips (F) to underside of Desk (A).
  • Page 5 STEP 7 Remove adhesive backing from Rubber Pads (P) and place them on the underside of over Grommet Plate (M). Remove plug from Desk (A). STEP 8 Position Pole (H) with Grommet Plate (M) over the grommet hole of Desk (A), and install to desktop using Hand Bolt (N) with Support Plate (O).
  • Page 6 STEP 10 Flat Back Monitor Install VESA Plates (I) to monitors using Screws (M-A or M-C) and M5 Washers (M-E). Curved / Recessed Back Monitor Install VESA Plate (I) to monitors using Screws (M-B or M-D), M5 Washers (M-E) and Spacers (M-F). STEP 11 If needed, adjust tilt joint support using 6mm Allen Wrench (T-A).
  • Page 7 STEP 13 Route cables through Arm Cable Clips (K) and Pole Cable Clip (J). STEP 14 Adjust monitor position and rotation as desired. Adjust monitor alignment by turning Knob (Q) with 6mm Allen Wrench (T-A). Store Allen Wrench (T-A) in the Pole Clip (J) for future adjustments. CAUTION: To prevent tipping, please be careful not to extend the arms too far forward or backward.
  • Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
