Summary of Contents for Spirit xt9

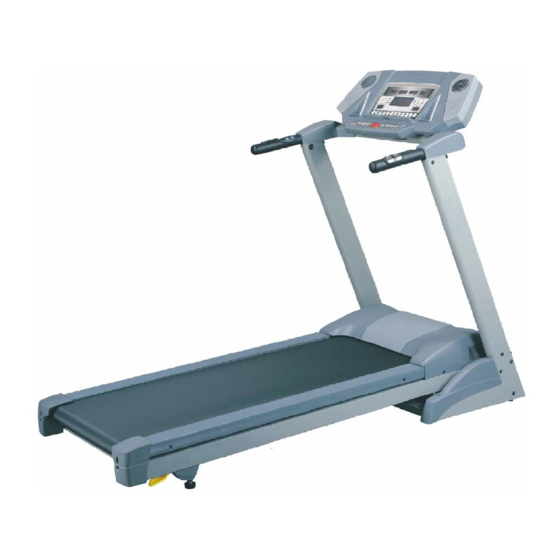

- Page 1 OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL!
-
Page 2: Table Of Contents
Table of Contents Product Registration Important Safety Instructions Important Electrical Information Important Operation Instructions Assembly instructions Folding & Transport Instructions Operation of Your New Treadmill Programmable Features General Maintenance. Service Checklist - Diagnosis Guide Manufacturer s Limited Warranty ATTENTION- THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THAT APPLICATION. -
Page 3: Product Registration
Through your dealer, Spirit will do all we can to make your ownership experience as pleasant as possible for many years to come. The local dealership where you purchased this treadmill is your administrator for all Spirit warranty and service needs. -
Page 4: Important Safety Instructions
Important Safety Instructions WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your Spirit treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 20-amp grounded outlet. -
Page 5: Important Electrical Information
Important Electrical Information WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%) or more, the performance of your treadmill may be affected. - Page 6 NEVER mount or dismount the treadmill while the belt is moving. Spirit treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit.
-
Page 7: Assembly Instructions
Assembly Instructions ASSEMBLY PACK CHECK LIST (4 pcs) 5/16 x 19 x 1.5T Curved Washer (4 pcs) M5 x 15 m/m Phillips Head Screw (14 pcs) 5/16 x15m/m Button Head Socket Screw (1pc) Safety Key (1 pc) Deck / Belt Lubricant (1 pc) Combination M5 Allen Wrench &... - Page 8 Assembly Instructions...
-
Page 9: Folding & Transport Instructions
Folding Instructions Do not attempt to move the unit unless it is in the folded and locked position. Be sure the power cord is secured to avoid possible damage. Use both handrails to maneuver the unit to the desired position. To Fold The Treadmill: Make certain the treadmill is at minimum incline. -
Page 10: Operation Of Your New Treadmill
Operation of Your Treadmill Getting familiar with the control panel XT9 Console Getting started: Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the safety key is... -
Page 11: Incline Feature
Quick-Start Operation: STEP 1: Attach the Safety key to STEP 2: Press the Start key to begin belt movement, then adjust to the desired speed using the Fast / Slow keys (console or handgrip). You may also use the rapid speed keys 2 through 10 to adjust the speed. - Page 12 Dot Matrix Center Display (Program Operation): Twenty rows of dots (8 high) indicate each segment of a workout. The dots are only to show an approximate level (speed/incline) of effort. They do not necessarily indicate a specific value - only an approximate percent to compare levels of intensity. In operation the Speed / Incline dot matrix window will build a profile picture as values are changed during a workout.
-
Page 13: Programmable Features
Programmable Features Factory preset programs (P1~P5), 2 user defined programs, and one Manual program. Each preset program has a maximum speed level that is displayed when a desired workout is chosen. The maximum speed that the particular program will achieve will be displayed in the Speed window. - Page 14 STEP 5: The first column (segment) will now be blinking. Using the Fast / Slow or rapid keys, adjust the speed level to your desired effort for the first segment then press enter. The second column will now be blinking. Repeat the above process until all segments have been programmed.
-
Page 15: General Maintenance
General Maintenance Belt and Bed - Your treadmill uses a very high-efficient low-friction bed. Performance is maximized when the bed is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the edge of the belt and the area between the belt edge and frame. Also reach as far as practical directly under the belt edge. - Page 16 Adjustments will become less of a maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with all treadmills. ATTENTION: DAMAGE TO THE RUNNING BELT RESULTING FROM IMPROPER TRACKING / TENSION ADJUSTMENTS IS NOT COVERED UNDER THE SPIRIT WARRANTY.
- Page 17 Spirit. There are commercially available lube kits, but the only one currently approved by Spirit is Lube-N-Walk. These kits come with an application wand that makes applying the lubrication easier. The kits can be purchased from Spirit or directly from Lube-N-Walk here: http://www.jadfitness.com/...
-
Page 18: Service Checklist - Diagnosis Guide
If an extension cord is required it should be as short as possible and heavy duty 16 gauge minimum. Low household voltage. Contact an electrician or your Spirit dealer. A minimum of 110 volt AC current is required. -
Page 19: Manufacturer S Limited Warranty
Manufacturer’s Limited Warranty Spirit Manufacturing Inc. warrants all its home use treadmills parts for a period of 5 years from the date of retail sale, as determined by sale receipt, in the absence of a receipt eighteen (18) months from the original factory shipping date. Spirit s responsibilities include providing new or remanufactured parts, at Spirit s option, and technical support to our independent dealers and servicing organizations.
