Spirit XT285 Owner's Manual

Hide thumbs Also See for XT285:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

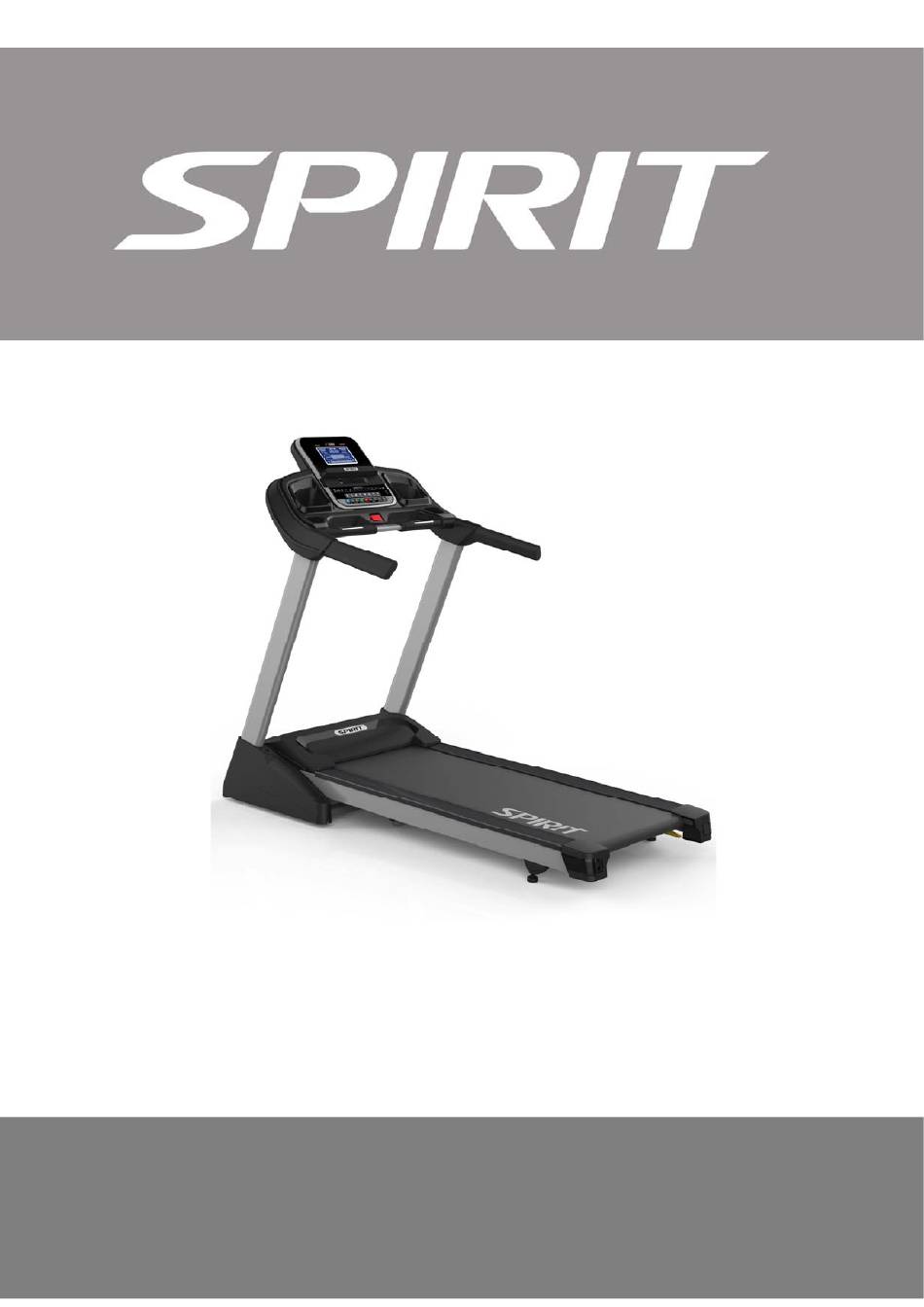

XT285
T readmill
OWNER'S MANUAL
Please carefully read this entire manual before operating your new
treadmill.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT285 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spirit XT285

Summary of Contents for Spirit XT285

  • Page 1 XT285 T readmill OWNER’S MANUAL Please carefully read this entire manual before operating your new treadmill. ...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions Important Electrical Information Important Operation Instructions Assembly Pack Checklist Assembly instructions Folding Instructions Operation of Your Treadmill Using the Spirit FIT App General Maintenance Service Checklist - Diagnosis Guide Exploded View Diagram Parts List XT135-YT025CEGS_1801(SL)A...

  • Page 3: Important Safety Instructions

    Important Safety Instructions WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt AC, 15-amp grounded outlet.

  • Page 4: Important Electrical Information

    Important Electrical Information WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. NEVER remove any cover without first disconnecting AC power.

  • Page 5: Important Operation Instructions

    Important Operation Instructions NEVER operate this treadmill without reading and completely understanding the results of ● any operational change you request from the computer. Understand that changes in speed and incline do not occur immediately. Set your desired ● speed on the computer console and release the adjustment key. The computer will obey the command gradually.

  • Page 6: Assembly Pack Checklist

    ASSEMBLY PACK CHECKLIST #82. Ø10 × 2.0T #88. Ø5 × 16m/m Split Washer (4 pcs) Tapping Screw (6 pcs) #90. 3/8" × 1-3/4" Button Head Socket Bolt (4 pcs) #93. 5/16" × 15m/m #132. M5 #142. Ø3.5 × 16m/m Button Head Socket Bolt (8 pcs) Speed Nut Clip (6 pcs) Sheet Metal Screw (8 pcs) #58.
  • Page 7 ASSEMBLY TOOLS #96. Combination M5 Allen Wrench #97. M6 L Allen Wrench & Phillips Head Screw Driver #122. Phillips Head Screw Driver...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Take out the treadmill from the carton and lay it aside on the smooth ground. STEP 2 Locate 6 pcs of M5 Speed Nut Clips (132), which are included in the hardware kit, at the front and each side of the unit as shown below and guide Right and Left Uprights (4 , 5) go through Frame Base Covers (L , R), (42 , 43) and Console Mast Covers (L , R) (99 , 100), respectively, as shown further below.
  • Page 9 STEP 3 Insert Right and Left Uprights (4) and (5) into the Frame Base (2) and use Combination M5 Allen Wrench & Phillips Head Screw Drive (96) to tighten 8 pcs of 5/16" × 15m/m_ Button Head Socket Bolts (93). STEP 4 Install Frame Base Covers (L) and (R),(42) and (33), on the Frame Base (2) and secure with 6 pcs of Ø5 ×...
  • Page 10 STEP 5 Connect the Speed Adjustment Switch W/Cable (126) and Speed Adjustment Switch W/Cable (Upper) (128). Connect the Incline Adjustment Switch W/Cable (127) and Incline Adjustment Switch W/Cable (Upper) (129). Connect the Computer Cable (Middle) (38) and Computer Cable (Upper) (37). STEP 6 Insert Console Assembly (40) into right and left Uprights (4) and (5) and secure with 4 pcs of 3/8"×1-3/4"...
  • Page 11 STEP 7 Install Console Mast Cover (L) (99) and Console Mast Cover (R) (100) on Right and Left Uprights (4, 5). Then secure with 8 pcs of Ø3.5 × 16m/m Sheet Metal Screws (142) by using Phillips Head Screw Driver (122). NOTE: Please Tighten All Screws After All Components Assembly Complete.

  • Page 12: Folding Instructions

    CAUTION: Do not attempt to move the unit unless it is in the folded and locked position. Remove the power cord from the front of the unit to avoid possible damage. Use both handrails to maneuver the unit to the desired position. Folding Instructions ■...

  • Page 13: Operation Of Your Treadmill

    Operation of Your Treadmill Handrail Adjustments The treadmill allows you to make speed and incline changes on the side handrails. You can also choose to turn these off if you frequently hold on to these rails. This is achieved by pressing the disable button on the right side of the lower portion of the console.
  • Page 14 Console The console will display Pace, Calories burned, Time (elapsed or countdown), Distance travelled, Pulse, Speed, Incline, Program Name, number of Laps completed, and Segment Time. There is also a Speed & Incline profile graph that lets you see how hard you have worked and how challenging the upcoming segments will be.
  • Page 15 Incline 1. Incline may be adjusted anytime after belt movement. 2. Press and hold the Incline Up / Down keys to achieve desired gradient. You may also choose a more rapid increase / decrease by selecting the Quick Incline key, then 0 through 9. •...
  • Page 16 Program Keys The program keys are used to preview each program. When you first turn the console on you may press each program key to preview what the program profile looks like. If you decide that you want to try a program, press the corresponding program key and then press the Enter key to select the program and enter into the data-setting mode.
  • Page 17 To Select and Start A Preset Program 1. Press the desired program (Hill, Fat Burn, Cardio, Strength, or Interval) key. Press Enter to select the program. The display will prompt you through the programming or you can just press Start to begin the program with default values. 2.
  • Page 18 Preset Programs The treadmill has five different programs that have been designed for a variety of workouts. These five programs have factory preset work level profiles for achieving different goals. HILL This program follows a triangle or pyramid type of gradual progression from approximately 10% of maximum effort (the level that you chose before starting this program) up to a maximum effort which lasts for 10% of the total workout time, then a gradual regression of resistance back to approximately 10% of maximum effort Incline: The deck elevation is a more gradual and sustained...
  • Page 19 STRENGTH This program has a gradual progression of resistance up to 100% of maximum effort that is sustained for 25% of workout duration. This will help build strength and muscular endurance in the lower body and gluts. A brief cool down follows. Incline: There is a quick climb to a moderate, sustained elevation that lasts the majority of the workout length.

  • Page 20: Using The Spirit Fit App

    Map My Fitness, Record, Fit bit, etc, in order for the icon to be active and available. *Note: Your device will need to be running on a minimum operating system of iOs 7 or Android 4.4 for the Spirit Fit App to...
  • Page 21 Heart Rate Program Operation Note: You must wear the heart rate transmitter strap for these programs Both programs operate the same, the only difference is that HR1 is set to 60% and HR2 is set to 80% of the maximum heart rate. They both are programmed the same way. To start an HR program follow the instructions below or just select the HR1 or HR2 program, then the Enter key and follow the directions in the Message Center.

  • Page 22: General Maintenance

    GENERAL MAINTENANCE BELT & DECK Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt and the area between the belt edge and the frame. Also reach as far as practical directly under the belt edge.
  • Page 23 TREAD-BELT TRACKING ADJUSTMENT The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during use the belt continues to move toward one side, adjustments are necessary. SETTING TREAD-BELT TRACKING A 6 mm Allen wrench (132)is provided for this adjustment.
  • Page 24 Do not lubricate with anything other than Spirit Fitness approved lubricant. Your treadmill comes with one tube of “Lube” and extra tubes can be ordered directly from Spirit Fitness or your authorized Spirit Fitness dealer. You may also use a Lube-n-Walk kit that can be purchased through both aforementioned sellers.

  • Page 25: Service Checklist Diagnosis Guide

    SERVICE Checklist Diagnosis Guide Before contacting your dealer for aid, please review the following information. It may save you both time and expense. This list includes common problems that may not be covered under the treadmill’s warranty. PROBLEM SOLUTION/CAUSE Display does not light 1.Tether cord not in position.
  • Page 26 Calibration Procedure 1. Remove the Safety Key. 2. Press and hold Start and Speed _ buttons and at the same time replace the Safety Key. Continue to hold Start and Speed _ keys until the window displays “Factory settings”, then press the Enter key. 3.

  • Page 27: Exploded View Diagram

    EXPLODED VIEW DIAGRAM...

  • Page 28: Parts List

    PARTS LIST Part Number Part Description Qty per unit Main Frame Frame Base Incline Bracket Right Upright Left Upright Console Support Outer Slide Inner Slide Motor Bottom Cover Link Link Shaft Shaft Bushing Fastening Bracket Clevis Pin Fastening Bushing Belt Guide Running Deck Running Belt Drive Belt...
  • Page 29 40~3 Book Rack 40~4 Anchor 40~5 Square Magnet Stop Plate 40~6 Drink Bottle Holder (L) Drink Bottle Holder (R) 40~7 40~8 Speaker Grill Anchor 40~9 300m/m_W/Receiver, HR 40~10 Wind Duct Console Bottom Cover 40~11 40~12 Deflector Fan Grill 40~13 500m/m_Fan Assembly 40~14 Fan Grill Anchor 40~15...
  • Page 30 Ø1/4" × 19 × 1.5T_Flat Washer 3 × 10m/m_Sheet Metal Screw 3/8" × 2"_Flat Head Socket Bolt 5/16" × 1"_Button Head Socket Bolt M8 × 60m/m_Hex Head Bolt M8 × 80m/m_Socket Head Cap Bolt (Alloy Steel) M8 × 35m/m_Flat head countersink Bolt 1/2"...
  • Page 31 M3_Split Washer 3 × 10m/m_Sheet Metal Screw Controller Back Plate 400m/m_Console Ground Wire 20 × 40m/m_Square End Cap Phillips Head Screw Driver On/Off Switch 100m/m_Connecting Wire (Black) Breaker 330m/m_Speed Adjustment Switch W/Cable 330m/m_Incline Adjustment Switch W/Cable 800m/m_Speed Adjustment Switch W/Cable (Upper) 800m/m_Incline Adjustment Switch W/Cable (Upper) 400m/m_Audio Cable Chest Strap...
