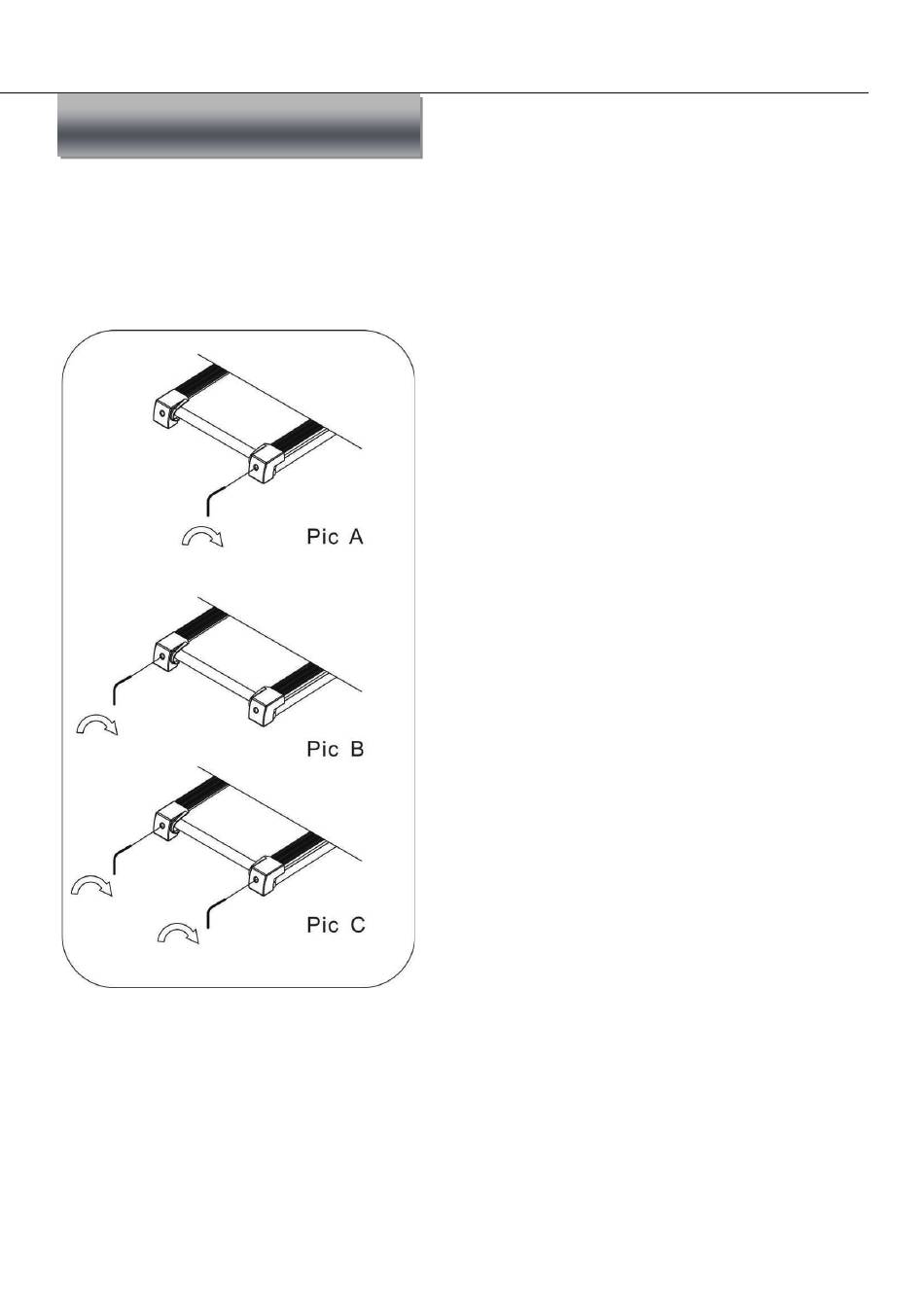

If the belt has drifted to the right, unplug the
safety lock and power switch, and turn the
right adjusting bolt 1/4 turn clockwise, then
insert the power switch and safety lock,
re-start the treadmill and observe the running
belt to see if it deviates. Repeat the above
steps until the running belt is aligned in the
middle. See picture A
If the treadmill belt is swerving to the left,
unplug the safety lock, turn off the power,
then with the left adjusting bolt clockwise
rotation 1 / 4 laps, and turn on the safety lock
and power on to make treadmill running,
checking the deviation of the treadmill belt.
Repeat the above steps until the belt centered.
See picture B
The treadmill belt will gradually relax after
above steps or after a period of time using,
unplug the safety lock, and turn off the power,
with the two adjusting bolt clockwise rotation
1 / 4 laps, and turn on the safety lock and
power to make treadmill running, then
standing on the belt to confirm the tightness.
Repeat the above steps until the belt
moderate tightness. See picture C
