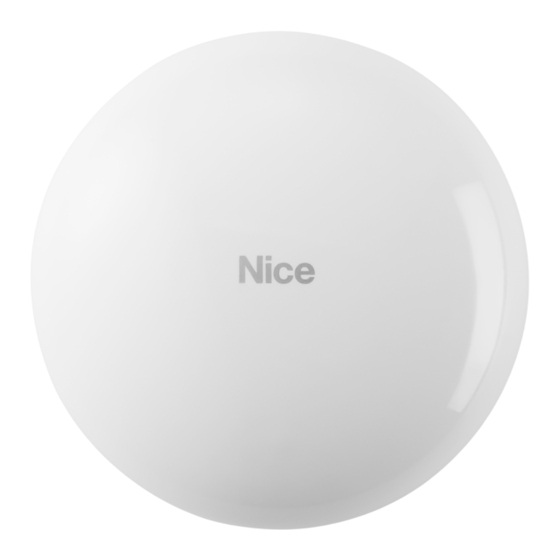

The device has built in temperature sensor that allows to monitor ambient temperature. Flood-Control is designed to be placed on the floor or mounted on a wall (in this case Flood-Control probes should be extended using addition wire). The device has a built-in visual LED indicator and an acoustic alarm.
Page 3
1. Turn the cover counter-clockwise and open it. 2. Remove the battery blocker. 3. Flood-Control will confirm being powered with a short beep and a LED blink. 4. Add the device. 5. Close the cover and turn it clockwise. 6. Place the sensor on a surface prone to flooding. Three electrodes underneath the device should evenly touch the surface.
Note. Removing the device from the Z-Wave network restores all the default parameters of the device. DIAGRAMS AND CONNECTIONS Connecting Flood-Control in a manner inconsistent with manual may cause risk to health, life or material damage. • Connect while observing wiring diagram shown in this manual only. Incorrect wiring may be dangerous or result in the device breakdown.
The Flood-Control will automatically exit emergency mode once 12/24 VDC at +12 and GND terminals is detected There are two powering modes for the Flood-Control. By default it is powered by a factory included battery. In addition it can work with a con- stant voltage, after connecting a 12/24V DC power supply to +12 and GND terminals (see chapter 6 - Diagrams and connections).
Page 7
74. The Flood-Control in 2nd to 4th group allows to control up to 5 regular and 5 multichannel devices per an association group, with the excep- tion of “LifeLine” that is reserved solely for the controller and hence only 1 node can be assigned.
It’s not recommended to use the device at the range limit. Visual indicator glowing red - the Flood-Control is not able to connect to the main controller directly or through another Z-Wave network de- vice (repeater).
Page 9
Parameter: 7. Requested dimming level / roller blind opening level when sending turn on / open command to 2nd association group devices Description: Determines the requested “on” level to be sent to devices from 2nd association group upon flood event. Available settings: 1-99 - requested level 255 - turn a device on...
Page 10
Parameter: 63. Temperature indication using LED visual indicator Description: Parameter determines visual indicator’s operation. Setting to 0 turns the temperature LED indication off, saving battery life. Available settings: 0 - visual indicator does not indicate the temperature 1 - visual indicator indicates the temperature (blink) every Temperature Measurement Interval (parameter 10, con- stant current and battery) and Wake Up Interval (battery mode) 2 - visual indicator indicates the temperature continuously, only in constant power mode Default setting:...
The product Flood-Control is produced by Nice S.p.A. (TV). Warnings: - All technical specifications stated in this section refer to an ambient temperature of 20 °C (± 5 °C) - Nice S.p.A. reserves the right to apply modifications to the product at any time when deemed necessary, while maintaining the same functionalities and intended use.
Caution! – local legislation may envisage serious fines in the event of abusive disposal of this product. DECLARATION OF CONFORMITY Hereby, Nice S.p.A., declares that the radio equipment type Flood-Control is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.niceforyou.com/en/support...
