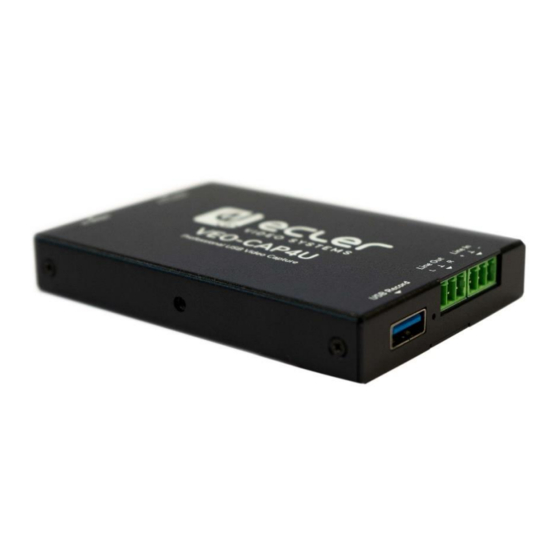

Ecler VEO-CAP4U User Manual

Ecler VEO-CAP4U User Manual

Av interfaces professional usb video capture

Advertisement

Quick Links

VEO-CAP4U
AV INTERFACES
Professional USB Video Capture
USER MANUAL
v. 20220428

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEO-CAP4U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ecler VEO-CAP4U

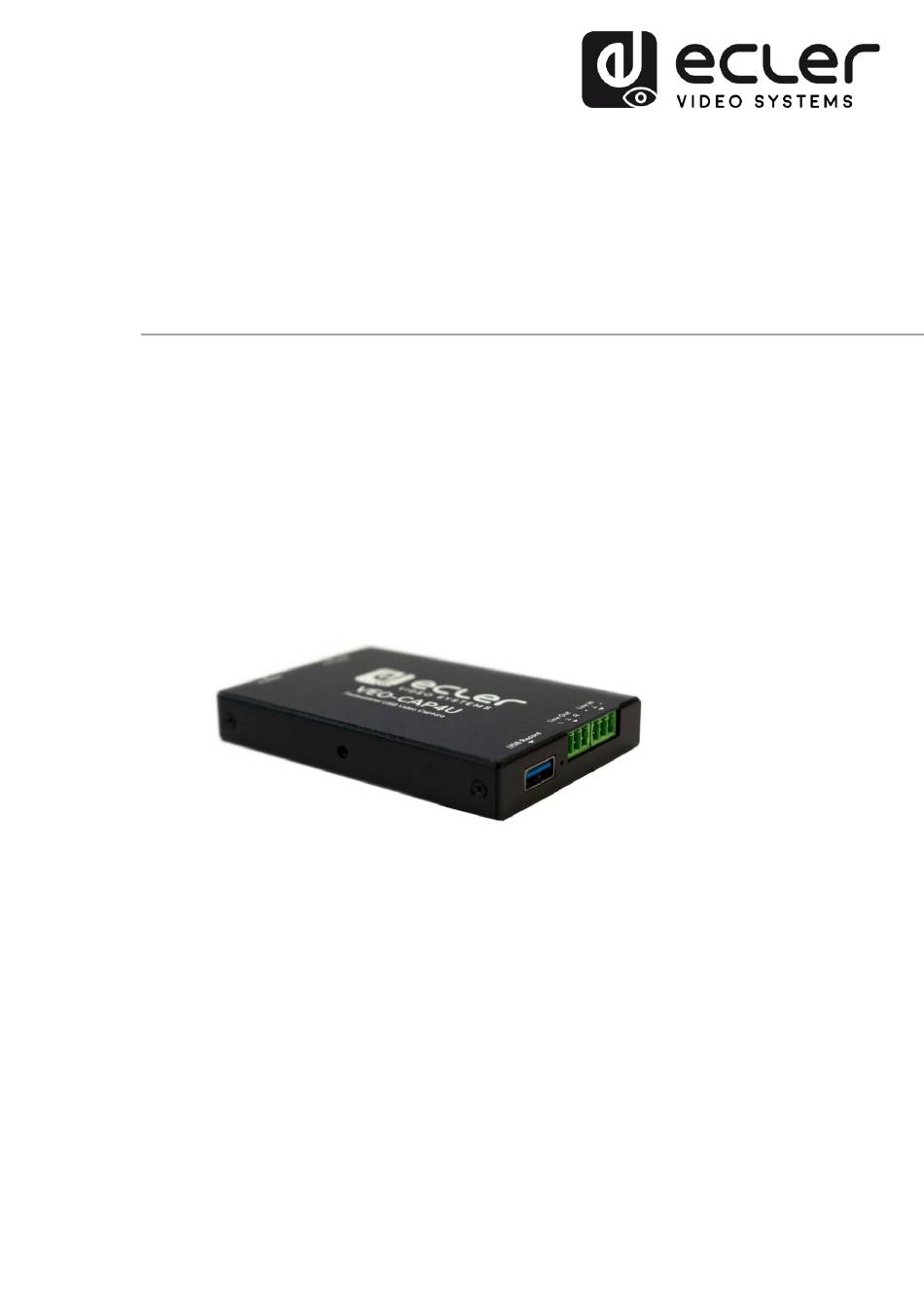

  • Page 1 VEO-CAP4U AV INTERFACES Professional USB Video Capture USER MANUAL v. 20220428...
  • Page 2: Table Of Contents

    6.1 Interface Frontal Panel and Rear Panel ................6 CONNECTION DIAGRAM AND INTERNAL AUDIO ROUTING ........7 7.1 Internal audio routing ........................ 7 HOW TO RECORD AND STREAM WITH VEO-CAP4U AND OBS STUDIO ..... 8 HOW TO USE VEO-CAP4U WITH SKYPE FOR VIDEOCONFERENCING ....11 ®...
  • Page 3: Important Remark

    1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
  • Page 5: Important Note

    Ecler VEO-CAP4U comes with a 3 year warranty. 4. INTRODUCTION VEO-CAP4U is a plug-n-play HDMI to USB video capture device aimed for online media creators, educational and corporate market etc. that require a professional solution for capturing and streaming their audiovisual content. This product is designed to easily record video and audio from an HDMI source, and send it to a PC / MAC over USB 3.0...
  • Page 6: Package Contents

    5. PACKAGE CONTENTS • 1 x Interface • 1 x USB 3.0 Cable • 2 x 3 Pin Euroblock Connector • 2 x Surface mount ears 6. PANEL DESCRIPTIONS 6.1 Interface Frontal Panel and Rear Panel 1. HDMI OUT: Connect this output to a local display or to another HDMI distribution device 2.
  • Page 7: Connection Diagram And Internal Audio Routing

    Downmix is not supported • The audio signal coming from the balanced Line In is summed to the HDMI audio stream and routed to the USB Record port. VEO-CAP4U will be shown on the operating system as an external microphone peripheral...
  • Page 8: How To Record And Stream With Veo-Cap4U And Obs Studio

    8. HOW TO RECORD AND STREAM WITH VEO-CAP4U AND OBS STUDIO The Ecler’s recommended platform for video capturing using VEO-CAP4U is OBS Studio, which is a free and open source video recording and live streaming software. Please visit https://obsproject.com/ to download the player for Windows, Mac OS X or Linux.
  • Page 9 Select USB3.0 VEO-CAP4U as the device in use. Then configure the video parameters and click “OK” Click on the “+” icon in the “Sources” area and then click “Audio Capture Device” Type the new device name, and then click “OK” to create new source...
  • Page 10 Select “Microphone (USB3.0 VEO-CAP4U)” as device in use, configure the video parameters and then click “OK” Click on “Start Recording” in the “Controls” area to begin the video and audio recording To stop recording simply click on the “Stop Recording” button. By clicking on “File”...
  • Page 11: How To Use Veo-Cap4U With Skype ® For Videoconferencing

    Now your Skype camera will be the device connected to the VEO-CAP4U HDMI input © and your microphone will be the device connected to the VEO-CAP4U Line In. NOTE: Each videoconferencing softcodec (Skype , Zoom , Google Meets etc...)
  • Page 12: Technical Specifications

    1 x LED for HDMI Active HDMI Output 1 x LED for HDMI Active General HDMI Distance up to 10 meters / 33 ft with Ecler VEO cables 80ms – 2500mS depending by PC/MAC Latency hardware and software platforms Environmental Operation Temperature -5 to +55°C (+23 to +131 °F)
  • Page 13: Mechanical Diagram

    NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
