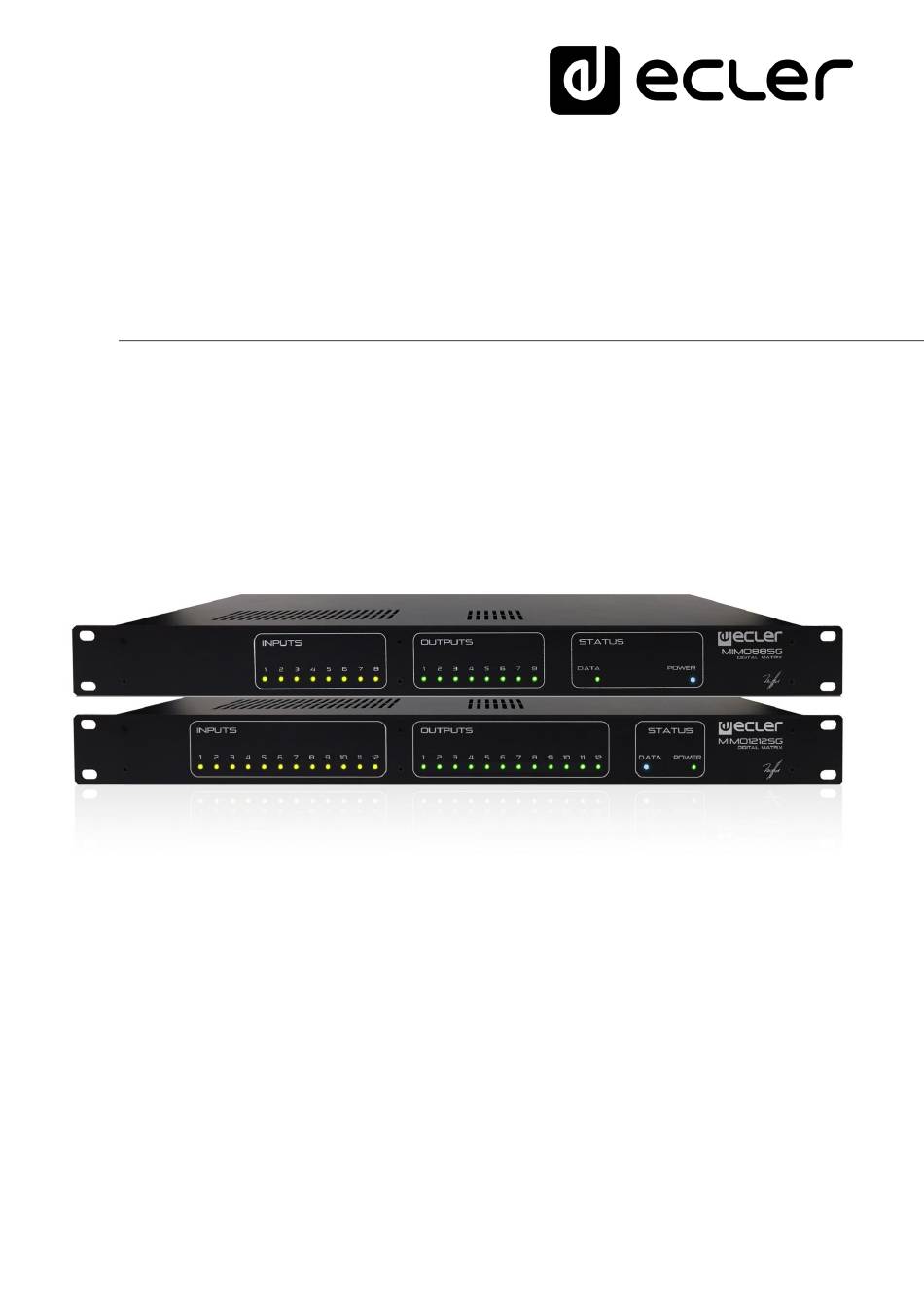

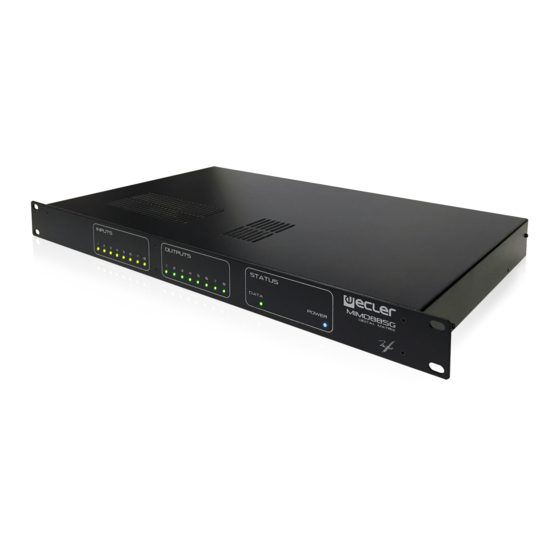

- Page 1 MIMO88SG / 1212SG DIGITAL MATRIXES Installation Digital Matrix USER MANUAL v.20200826...
-
Page 2: Table Of Contents
5.9. Front panel controls and LED indicators ................11 CLEANING ..........................11 FUNCTION LIST ........................12 FUNCTION DIAGRAMS ....................... 13 8.1 MIMO88SG ..........................13 8.2. MIMO1212SG ........................... 14 TECHNICAL CHARACTERISTICS ..................15 9.1. MIMO88SG ..........................15 9.2. MIMO1212SG ........................... 20 BLOCK DIAGRAMS ...................... -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note
IMPORTANT NOTE Thank you for choosing our Ecler MIMO88SG / 1212SG Installation Digital Matrix! VERY IMPORTANT It is to carefully read this manual and to fully understand its contents before any connection in order to maximize your use and get the best performance from this equipment. - Page 6 Compressor/limiter on outputs. o Input channel priority assignment (ducking). o Virtual and physical messaging consoles (paging). o Standard MIMO88SG / MIMO1212SG firmware version (for generic use) and alternative version, for conferencing applications (MIMO88SG / MIMO1212SG CONFERENCE version). Both firmware versions are compatible with the MIMO88SG / MIMO1212SG hardware which can be freely updated with anyone of them.
-
Page 7: Installation
5.3. Signal input connections The rear panel of a MIMO SG unit offers 8 (MIMO88SG) or 12 (MIMO1212SG) balanced analogue signal inputs, "IN", accepting both line and microphone level signals. Input signal type selection and management are carried out from EclerNet Manager application. -
Page 8: Audio Output Connections
5.4. Audio Output Connections The rear panel of a MIMO SG offers 8 (MIMO88SG) or 12 (MIMO1212SG) analogue signal outputs "OUT", all balanced and accepting line level signals. Signal output connectors are 3 position screw terminal block. The wiring is: Hot or direct signal >... -
Page 9: Gpi Remote Control Ports
REMOTE port. 5.7. GPI Remote Control Ports The rear panel of the MIMO SG offers 8 (MIMO88SG) or 12 (MIMO1212SG) GPI inputs for 0-10 VDC continuous control voltage. Each of these inputs can be connected to an external physical device (potentiometer, contact closure, continuously variable voltage 0- 10V DC, etc.) and assigned to a MIMO SG function, as for example:... -
Page 10: Remote Control Rs-232 Port
WPaVOL-SR connection to MIMO serial GPI ports Connecting cables can be up to 500 meters with a minimum section of 0.5 mm Consult your ECLER dealer or www.ecler.com about the WP series remote control wall panels and other accessories available for connection to the GPI port. -
Page 11: Front Panel Controls And Led Indicators
5.9. Front panel controls and LED indicators The following elements are available on the MIMO SG series front panel: • Input LED indicators: indicate the presence of audio signal at the unit’s input, and its intensity level (green, amber and red indicate in this order the increased intensity level) •... -
Page 12: Function List
FUNCTION LIST 1. Input signal indicators, INPUTS 2. Output signal indicators, OUTPUTS 3. Data traffic indicator, DATA 4. Power on indicator, POWER 5. Signal output screw terminal, OUT 6. Signal input screw terminal, IN 7. RJ-45 connector, ETHERNET 8. Screw terminals for digital remote control, REMOTE 9. -
Page 13: Function Diagrams
FUNCTION DIAGRAMS 8.1 MIMO88SG... -
Page 14: Mimo1212Sg
8.2. MIMO1212SG... -
Page 15: Technical Characteristics
TECHNICAL CHARACTERISTICS 9.1. MIMO88SG 2x 32/64bit Sampling Rate 48kHz Latency IN to OUT <2.9ms Converters Resolution 24bit AKM Dynamic Range AD:110dB, DA: 115dB Analog 8 Input/Output Terminal block (Symmetrical) Analog Input headroom +27dBV = +30dBu Max. output level +18dBV = +21dBu... - Page 16 CMRR 20Hz- 20kHz 65dB typ. Processing Input Level (x8) Range: from Off to 0 dB Mute: Yes Signal Polarity reverse: Yes Metering: VU+clip pre & post fader Output Level (x8) Range: from Off to 0 dB Mute: Yes Solo: Yes Signal Polarity reverse: Yes Metering: VU+clip pre &...
- Page 17 High & Low pass output Crossover filters (x8) Bypass On-Off Butterworth in 6/12/18/24 dB/oct Bessel in 12/18/24 dB/oct Linkwitz-Riley in 12/24 dB/oct Input Noise Gate (x8) Bypass On-Off Threshold: from –80 dBV to +18 dBV Depth: 0 dB to 80 dB Attack time: from 0,1 ms.
- Page 18 Built in Signal Generator Sine: from 20 Hz to 20 kHz Polarity: from 20 Hz to 20 kHz White noise Pink noise Stereo Linking Adjacent input / output channels Linked processing Matrix routing linked Mix Matrix Size: 8x8 Vol: Input, Output, Crosspoint Mute: Set/Clear individual,...
- Page 19 Supply Mains 90-264VCA 47-63Hz Power consumption 45VA Miscellaneous Management Connectivity Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m. Remote Bus over twisted pairs; up to 1km (see specific specs.) 8, from 0 to 10VDC or TTL level Aux. Power Supply for Remotes & GPI +12VDC, 1.2A.
-
Page 20: Mimo1212Sg
9.2. MIMO1212SG 2x 32/64bit Sampling Rate 48kHz Latency IN to OUT <3.2ms Converters Resolution 24bit AKM Dynamic Range AD:110dB, DA: 115dB Analog 12Input/Output Terminal block (Symmetrical) Analog Input headroom +27dBV = +30dBu Max. output level +18dBV = +21dBu Input sensitivity @ 0dBV out From -50dBV to +10dBV in 0.5dB step Input Impedance... - Page 21 Processing Input Level (x12) Range: from Off to 0 dB Mute: Yes Signal Polarity reverse: Yes Metering: VU + clip pre & post fader Output Level (x12) Range: from Off to 0 dB Mute: Yes Solo: Yes Signal Polarity reverse: Yes Metering: VU + clip pre &...
- Page 22 Input Noise Gate (x12) Bypass On-Off Threshold: from –80 dBV to +18 dBV Depth: 0 dB to 80 dB Attack time: from 0,1 ms. to 500 ms. Hold time: from 10 ms. to 3000 ms. Release time: from 10 ms. to 1000 ms. Input Compressor / Limiter (x12) Bypass On-Off Threshold: from –36 dBV to +18 dBV...
- Page 23 Stereo Linking Adjacent input / output channels Linked processing Matrix routing linked Mix Matrix Size: 12x12 Vol: Input, Output, Crosspoint Mute: Set/Clear individual, row, column, all Input /output Mono/stereo selector Meter: Input /output VU and clip Pager (x3) Input: IN1 to IN12 Priorities: 3 (1 max, 3 min) Depth: 0 dB to 80 dB Attack time: from 5 ms.
- Page 24 Miscellaneous Management Connectivity Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m. Remote Bus over twisted pairs; up to 1km (see specific specs.) 12, from 0 to 10VDC or TTL level Aux. Power Supply for Remotes & GPI +12VDC, 0,6A. max. (short circuit protected) Time and date retention (battery) 100 hours aprox.
-
Page 25: Block Diagrams
BLOCK DIAGRAMS 10.1. MIMO88SG... -
Page 26: Mimo1212Sg
10.1. MIMO1212SG... - Page 27 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
