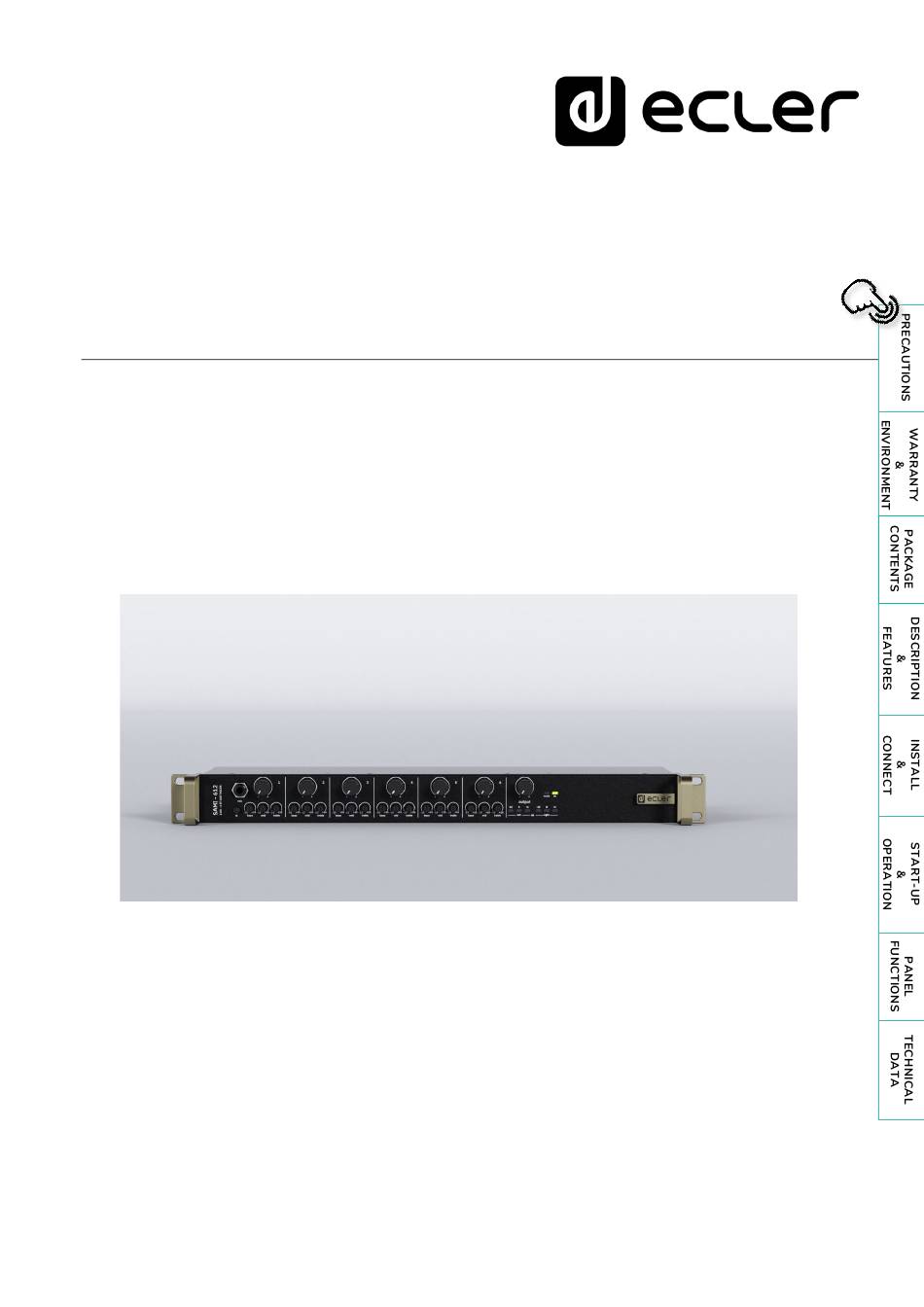

- Page 1 SAMI-612 ANALOGUE PREAMPLIFIERS & MIXERS Installation Mixers USER MANUAL 50-0454-0100 SAMI-612...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PRECAUTIONS..........................3 1.1 Important Notice ..........................3 1.2 Key Safety Directions ........................4 1.3 Cleaning Directions ........................4 2. WARRANTY & ENVIRONMENT ....................5 3. PACKAGE CONTENTS ........................5 4. DESCRIPTION & FEATURES ....................... 6 4.1 Main Features ..........................6 5. -
Page 3: Precautions
WARNING: Ecler products have a long lifetime of more than 10 years. This product must never be discarded as unsorted urban waste, but must be taken to the nearest electrical and electronic waste treatment centre. -
Page 4: Key Safety Directions
1.2 Key Safety Directions Read the following directions. 11. Only use attachments/accessories specified by the manufacturer. Keep the following directions. 12. Unplug the device during lightening Heed all warnings. sorts or when unused for long periods of Follow all directions. time. -
Page 5: Warranty & Environment
Recycling materials and using non-contaminant components are also top priorities in our green crusade. Ecler has deeply evaluated and analyzed the environmental impacts of all the processes involved in the production of this product, including packaging, and has alleviated, reduced and/or compensated for them. -
Page 6: Description & Features
4. DESCRIPTION & FEATURES SAMI-612 is an installation audio mixer in standard rack format, featuring 6 MIC/LINE Stereo inputs, 1 Stereo MIX input and 1 Stereo MAIN output + 1 Stereo REC output. Each input has a dedicated 3-band tone control, a feature which is fundamental to get a perfect microphone mix in an installation. -
Page 7: Install & Connect
On the opposite, input and output level controls use classic and easily accessible rotary knobs. Due to its low power consumption and heat sink, the SAMI-612 does not need any fan cooling. However, avoid installing it in dusty environments and/or in a location with extreme temperature and moisture. -
Page 8: Start-Up & Operation
6. START-UP & OPERATION 6.1 Connections 6.1.1 Inputs Each SAMI-612 channel has two input types (MIC/mono, LINE/stereo), selectable using a switch on the back panel. Microphone signal: the 6 mixing channels are provided with screw terminal strips and accept a nominal input level from 50dBV (3.16mV) to –20dBV (0.1mV), ± 15dB gain to be adjusted on the back panel. - Page 9 Turntables cannot be directly connected to this unit, because SAMI-612 has no RIAA preamp equipped input. In addition, MIX IN input directly access to the main mixing bus. It is especially useful to connect a second SAMI-612 or another mixer in order to increase the number of mixing channels and inputs.
-
Page 10: Outputs
6.1.2 Outputs SAMI-612 has two main outputs, with their type of connector as only difference: electronically balanced screw terminal strips and unbalanced RCA connectors. Connection is made according to the following diagram: In order to use an unbalanced output, you need to short pin 2 and pin 3, as indicated in the previous diagram. -
Page 11: Starting-Up
Plug the external PSU to the DC IN connector located on the rear panel and then, after connecting it to the power outlet, press the on/off switch to power the unit. Even the power-up noise of SAMI-612 is minimal, we highly recommend to power up all equipment in the following order:... -
Page 12: Ground Loops, Background Noise
Cable shields, when connected to the chassis, must never be linked together. This will avoid ground loops. SAMI-612 has been designed to produce the lowest background noise. Independently from the electronic design, the resulting background noise directly relies on the correct use and installation of the mixing unit. -
Page 13: Panel Functions
7. PANEL FUNCTIONS 7.1 Front Panel Micro input, MIC Output main volume control, OUTPUT VOL Talkover switch, tk x1 Led Vu-meter, MIX Channel volume control, VOL x6 LED indicator, MUTE Bass control, BASS x6 10. LED indicator, ON Midrange control, MID x6 Treble control, TREBLE x6 7.2 Rear Panel Mains socket... -
Page 14: Technical Data
8. TECHNICAL DATA 8.1 Technical Specifications SAMI-612 ANALOGUE AUDIO INPUT PORTS Number of input ports 6, MIC/LINE ( 1 STEREO direct MIC input on front panel) 1, MIX LINE Connection type MIC: 3-pin Euroblock LINE/MIX: RCA Input sensitivity LINE 2-5: 0dB... - Page 15 ELECTRICAL Power supply ±17.5VDC External PSU AC mains requirement 100-240 V @ 50-60Hz (External PSU: 17.5VDC) AC mains connector IEC inlet connector Power consumption 14.5VA / 6.8W Cooling Passive PHYSICAL Operating temperature Min: -10°C ; 14°F Max: 40°C ; 104°F Operating humidity <85% HR Storage temperature Min: -10°C ;...
-
Page 16: Mechanical Diagram
8.2 Mechanical Diagram All measurements in mm. - Page 17 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona, Spain Tel. (+34) 932238403 information@ecler.com www.ecler.com...
