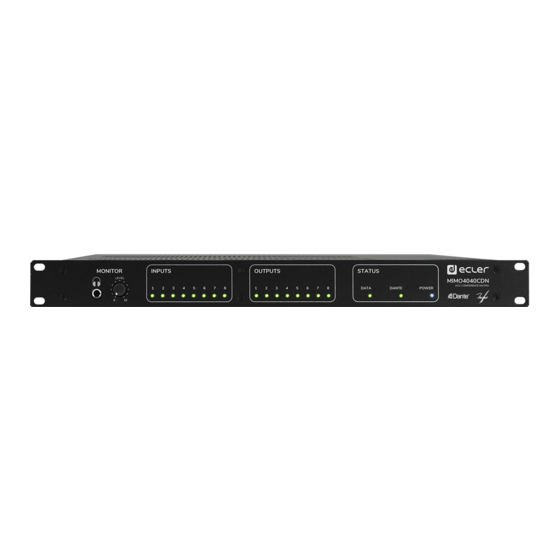

INTERNAL PHANTOM SIGNAL OUT 1 GENERATOR ANALOG ANALOG TRANSMITTERS DANTE RECEIVERS DANTE CHANNELS CHANNELS IN 1 RELAY 0/-20/-40dB INPUT ±10dB SWITCH IN 8 OUT 8 GAIN 8x8 ANALOG MATRIX 56x56 DIGITAL MATRIX FREQUENCY COMPRESSOR DELAY GATE COMPRESSOR DELAY GAIN SHIFTER LIMITER 0 ...
Before placing the PCB on PART 1 TEST, the following IC must be checked to avoid bad soldering and cold junctions. If any of them is not correctly soldered, the PCB must be reworked to reach perfect soldering. 51-0548-0100 M10-20 MIMO4040CDN MIMO7272DN Test and program 1 of 11...
2. This will open a new CMD window where the LOAD FIRMWARE will be held. 3. Wait until the new window shows a finish message, saying Site 0 has finished successfully. 4. From this point, continue testing the device. 51-0548-0100 M10-20 MIMO4040CDN MIMO7272DN Test and program 2 of 11...
Page 81
Computer with ETHERNET capabilities. • External Power Supply provided by Ecler. • USB with the Firmware for the MSC-Q7-BW module for the MIMO4040CDN. • USB with the Firmware for the MSC-Q7-BW module for the MIMO7272DN. • Firmware for the Brooklyn Dante Module for the MIMO4040CDN.
Page 82
5. Quit the MODULE with the HEATSINK from the TOOLING and place the last two screws, as follows. 6. Place the MODULE with the HEATSINK into the MIMO4040CDN or MIMO7272DN PCB. Place the two marked screws in order to fix the MODULE into the PCB.
Page 83
MSC-Q7-BW FIRMWARE LOADING 1. Connect the SUPPLY cables to the POWER SUPPLY tooling provided by ECLER. Place the DC Coin Cell into the socket. The SETUP must be like the following. The FAN must be also assembled and placed before the next STEP.
Page 84
5. Turn ON the device AGAIN. The device will make its POWER ON sequence until it reaches ON STATE on the LEDS. Do not POWER OFF the device unless it reaches ON STATE on the LEDS. 51-0548-0100 M10-20 MIMO4040CDN MIMO7272DN Test and program 6 of 11...
Page 85
6. At this point, connect the ETHERNET CABLE to the ETHERNET SOCKET of MSC-Q7, as its shown in the next image. Also open ECLERNET MANAGER and wait until the MIMO4040CDN or the MIMO7272DN (Depending on the Programming USB used) appears on UNUSED devices.
Page 86
3. Select UPDATE DANTE FIRMWARE on the next screen. 4. Select the FIRMWARE to LOAD on the next screen. The FIRMWARE to LOAD depends of the device (MIMO4040CDN or MIMO7272DN). Tick the OVERRIDE DEVICE MATCHING box before going to next screen.
Page 87
LOAD FIRMWARE, change the ETHERNET cable from the LEFT SOCKET to the RIGHT SOCKET. Refresh the SCREEN of the DANTE UPDATE MANAGER until the device appears again. This checks the RIGHT ETHERNET SOCKET. 51-0548-0100 M10-20 MIMO4040CDN MIMO7272DN Test and program 9 of 11...
Page 88
Therefore, verify the size of the DANTE MATRIX by pressing on the [+] of the device connected: • If the DANTE FIRMWARE loaded is for MIMO4040CDN, must be of 32x32 DANTE CHANNELS. The last channels will be DIN32 and DOUT32.
Page 89
3. PART 2 TEST Start the MIMO4040CDN_PART2 TEST or the MIMO7272DN_PART2 TEST for the device with the initial conditions shown in the screen. Proceed until the TEST is FINISHED. 51-0548-0100 M10-20 MIMO4040CDN MIMO7272DN Test and program 11 of 11...
Page 90
The unit’s insulation should be able to resist this voltage, without generating spurious sparks or a sparkover effect, and the tester may not detect any malfunction. CAUTION: Do not disconnect nor touch the test probes until the test has finished completely! 51-0549-0100 M10-20 MIMO4040CDN MIMO7272DN Music Verification 1 of 10...
Page 91
• The COMPUTER must have a DHCP SERVER opened and running. • The IP for the DANTE PORTS of the MIMO4040CDN or MIMO7272DN will be auto- assigned through this DHCP SERVER. • The ETHERNET PORT of the MIMO4040CDN or MIMO7272DN and the COMPUTER must be in the same IP RANGE as the DHCP SERVER (192.168.0.XXX).
Page 92
ON – RED ON - GREEN ON - BLUE 3. Once is connected, verify that the D.U.T and the MIMO4040CDN DUMMY appear on the DANTE CONTROLLER. The MATRIX of DANTE CONTROLLER must remain unconnected until advised to do so. 51-0549-0100 M10-20 MIMO4040CDN MIMO7272DN Music Verification 3 of 10...
Page 93
OUTPUT NOISE (hum, hiss, pops, distortion, etc) and the NOISE FLOOR. a. To use the AMPLIFIER, beware of connecting and disconnecting the INPUT without placing VOLUME cursor to MINIMUM. If not, POP NOISE will be heard when connecting the INPUT. 51-0549-0100 M10-20 MIMO4040CDN MIMO7272DN Music Verification 4 of 10...
Page 94
3. Check the PHONES OUTPUT by SELECTING the desired INPUT/OUTPUT on the PHONES field (below the PRESET). Check and verify the AUDIO QUALITY and the VOLUME POTENTIOMETER. Verify the POTENTIOMETER does not scratch or cracks. 51-0549-0100 M10-20 MIMO4040CDN MIMO7272DN Music Verification 5 of 10...
Page 95
1. On the DANTE CONTROLLER, assign the MIMO4040CDN DUMMY (MUSICA) and the D.U.T as follows. On this configuration, the INPUTS 1 and 2 of the MIMO4040CDN DUMMY will be connected to the DIGITAL INPUTS 1 and 2 of the D.U.T, and the INPUTS 3 and 4 of the D.U.T to the OUTPUTS 3 and 4 of the MIMO4040 DUMMY.
Page 96
2. Verify that if signal is placed on the INPUT 1 of the D.U.T, the OUTPUT 1 and 2 of the MIMO4040CDN DUMMY (MUSICA) sound. Also check the signal path from INPUT 1 of the MIMO4040CDN DUMMY (MUSICA) to the OUTPUT 1 and 2 of the D.U.T.
AUDIO signal is lost. Reconnect to the other DANTE SOCKET and verify the AUDIO signal is restored. 4. Before finishing, erase all the DANTE CONTROLLER matrix configurations between the D.U.T and the MIMO4040CDN DUMMY (MUSICA). This needs to be done as the RESTORE DEFAULTS does not eliminate these connections. MAC ADDRESS PRINTING 1.
Page 98
MANAGER and verify that all the SETTINGS and CHANGES have been restored. b. When RESTORE DEFAULTS, the DATA LED will blink until the D.U.T resets itself. 3. Finally, check the OPERATING TIME has been restored to 0h, 0min. 51-0549-0100 M10-20 MIMO4040CDN MIMO7272DN Music Verification 9 of 10...
Page 99
3. All screws should be on their place, correctly tight and unmarked. 4. Verify that the unit has made a RESTORE DEFAULTS (IP Ranges in 192.168.0.100, Time of use set to 0 minutes, etc). 51-0549-0100 M10-20 MIMO4040CDN MIMO7272DN Music Verification 10 of 10...
Page 101
Linkwitz-Riley in 12/24 dB/oct Output Limiter (x64) Bypass On-Off Threshold: from –36 dBV to +18 dBV Attack time: from 0,1 ms. to 500 ms. Release time: from 10 ms. to 1000 ms 53-0324-0100 M10-20 MIMO4040CDN MIMO7272DN Technical Characteristics 2 of 6...
Page 102
Depth: 0 dB to 80 dB Attack time: from 5 ms. to 2000 ms. Release time: from 50 ms. to 3000 ms. Chime Source: None, Melody 1, Melody 2 Chime Volume: from –12dB to 0dB 53-0324-0100 M10-20 MIMO4040CDN MIMO7272DN Technical Characteristics 3 of 6...
Page 103
Release time: from 10 ms. to 1000 ms. Parametric Eq. Types Bypass / On-Off all channels (4 max per input) Param Eq. Freq: 20Hz-20kHz; (4 max per output) Gain: -60/+12 dB Q: 0.3 to 200 53-0324-0100 M10-20 MIMO4040CDN MIMO7272DN Technical Characteristics 4 of 6...
Page 104
Local Microphones Count: 0 to 8 (total) Local Media Count: 0 to 2 (per module) Local Reinforcement: On - Off Noise Reduction: 0dB to 30dB Echo Suppression: 0dB to 60dB AGC Level: -40dB to 0dB 53-0324-0100 M10-20 MIMO4040CDN MIMO7272DN Technical Characteristics 5 of 6...
Page 105
±1minute / month SOFTWARE EclerNet Manager: programming & control UCP apps (iOS & Android) & standard web browsers: User Control Panels clients, end user controls TP-NET: Third Party integration & external control protocol 53-0324-0100 M10-20 MIMO4040CDN MIMO7272DN Technical Characteristics 6 of 6...
