Summary of Contents for Edu-Logger 900-238

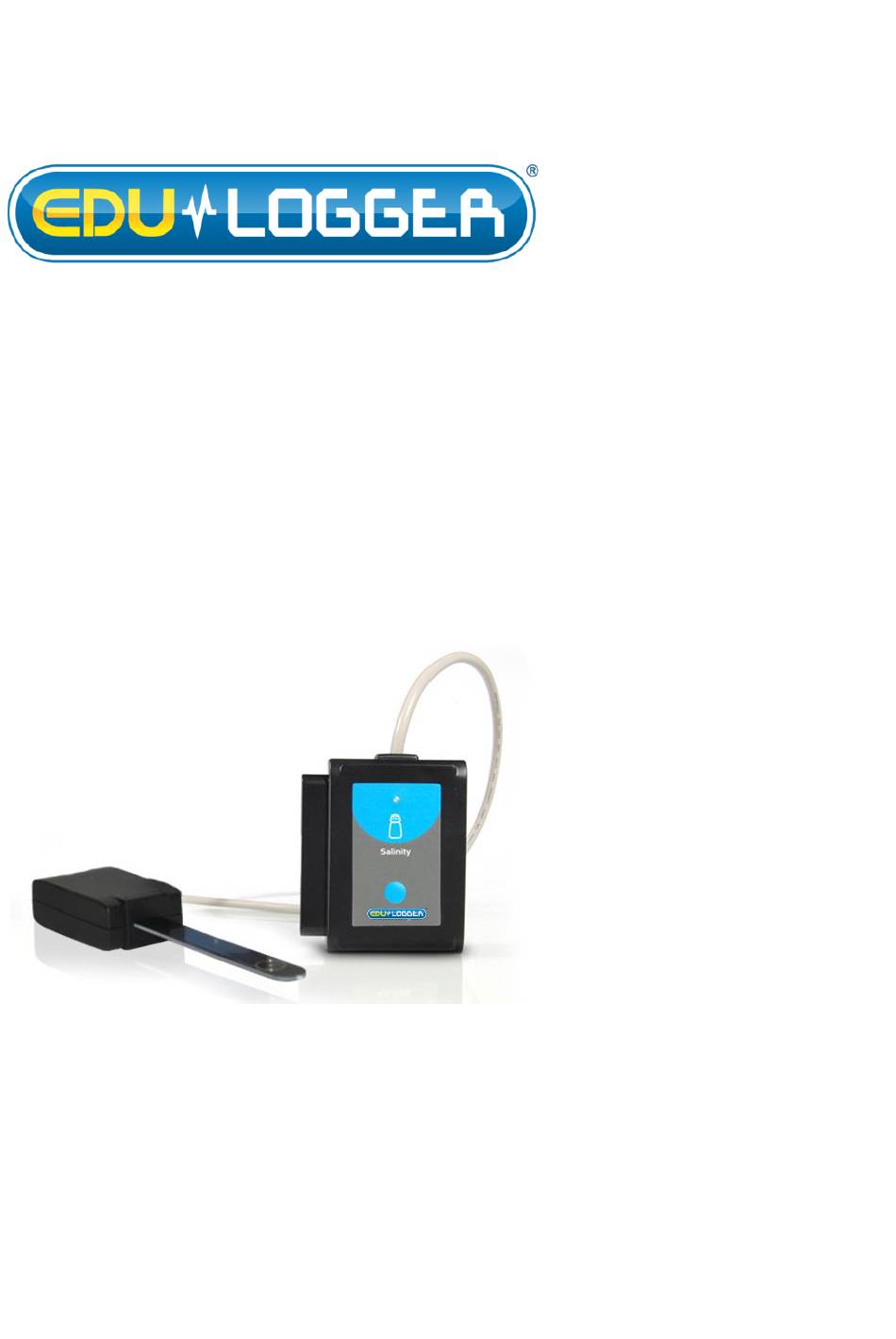

  • Page 1 Edu-Logger Salinity Logger Sensor Guide 900-238...
  • Page 2 Edu-Logger salinity logger sensor 900-238 The Edu-Logger salinity sensor can be used for any science experiment or activity which utilizes solutions that have a saline (salt) component such as in the fields Chemistry, Biology, Earth Science, Environmental Science, Biochemistry, Physics, etc.
  • Page 3 Quick start procedure: PC or Mac Computer Materials needed:  900-238 Salinity Sensor  900-213 USB Module  USB to mini USB cable (included with the 900- 213 module) Your salinity sensor needs to be connected to a 900- 213 module.
  • Page 4 Note: Make sure not to download and install both types of software they will conflict on the computer. Procedure: Install the Edu-Logger software Connect the 900-213 module to the PC or Mac Connect the salinity sensor to the 900-213 module (they directly plug together). Please note there is no calibration required for this sensor.
  • Page 5 Your salinity sensor needs to be connected to a 900- 268 module. The 900-268 module will create a closed Edu-Logger WiFi network which will stream the Edu- Logger data to a device of your choosing. Once your device is wirelessly connected to the Edu-Logger network you can run experiments and collect data through a browser of your choosing.
  • Page 6 Take your tablet or smart phone, go to the WiFi settings and select the Edu-Logger network which matches the 900-268 Module ID found on back 900-268 device. (Edu- LoggerXXXX for example). Give your device about 20 seconds to connect to the 900-268.
  • Page 7 Operation with Edu-Logger viewer Materials needed:  900-238 Salinity Sensor  900-272 Viewing Module  900-215 Battery Procedure: Connect the salinity sensor to the left side of the viewer. Connect the 900-215 module to the right side of the viewer.
  • Page 8 Click the “Load data from sensors” button. Select which experimental data to upload. (5 experimental runs can be stored at one time on the 900-238 salinity sensor) Restoring sensor’s factory default settings: Procedure: Connect the 900-213 to a PC, Mac, tablet, or smart device.
  • Page 9 Included with sensor:  Edu-Logger 900-238 salinity sensor guide (this document).  Salinity probe which is directly attached to the sensor’s plastic body. Sensor specifications: Range and sample operation Resolution resolution rate modes (S/sec) 0 to 6.4% 0.0064% 0 to 64,000...
  • Page 10 Videos, literature and other probes can be www.edulab.com Technical background: The philosophy behind Edu-Logger’s plug and play technology is based on each sensor’s ability to store its own data due to an internal flash memory chip and micro-controller in each plastic Edu-Logger body.
  • Page 11 Maintenance and storage:  Never submerge the Edu-Logger plastic body in any liquid.  Do not allow liquid into either the sensor’s or probe’s plastic body.  After using the probe rinse with distilled water and then blot or let air dry.
  • Page 12 Thank you for using Edu-Logger! www.edulab.com info@edulab.com V10012013...
