Edu-Logger Pressure
Logger Sensor Guide
900-210

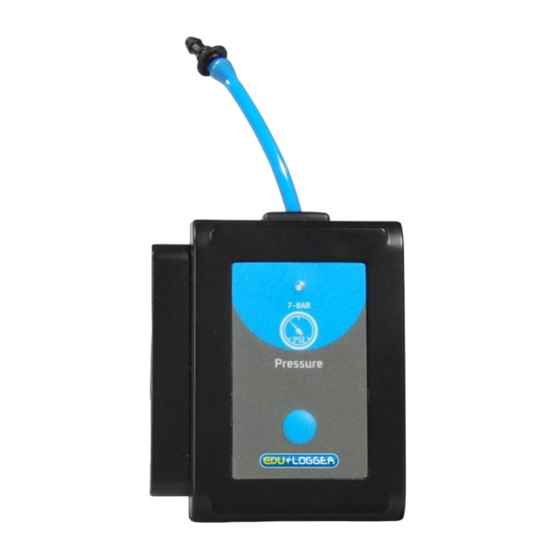

Edu-Logger pressure logger sensor
900-210

Advertisement

loading
Need help?

Need help?

Do you have a question about the 900-210 and is the answer not in the manual?

Questions and answers

Related Manuals for Edu-Logger 900-210

Summary of Contents for Edu-Logger 900-210

  • Page 1 Edu-Logger Pressure Logger Sensor Guide 900-210 Edu-Logger pressure logger sensor 900-210...
  • Page 2 The Edu-Logger pressure sensor can be used for any science experiment or activity which requires an accurate pressure measurement such as in the fields of Physics, Biology, Physiology, Microbiology, Botany, Weather Science, etc. The sensor comes pre-calibrated so you can start experimentation right out of the box using this guide.
  • Page 3 Quick start procedure: PC or Mac Computer Materials needed:  900-210 Pressure Sensor  900-213 USB Module  USB to mini USB cable (included with the 900- 213 module) Your pressure sensor needs to be connected to a 900- 213 module. The 900-213 module then connects to a computer via a USB to mini-USB cable.
  • Page 4 Your pressure sensor needs to be connected to a 900- 268 module. The 900-268 module will create a closed Edu-Logger WiFi network which will stream the Edu- Logger data to a device of your choosing. Once your device is wirelessly connected to the Edu-Logger network you can run experiments and collect data through a browser of your choosing.
  • Page 5 LED to the far left turns blue; this can take up to one minute. Take your tablet or smart phone, go to the WiFi settings and select the Edu-Logger network which matches the 900-268 Module ID found on back 900-268 device.
  • Page 6 Repeating this operation will return the unit to WiFi mode. Operation with Edu-Logger viewer Materials needed:  900-210 Pressure Sensor  900-272 Viewing Module  900-215 Battery Procedure: Connect the pressure sensor to the left side of the viewer.
  • Page 7 (Off-line experiments are for when you do not have a sensor connected directly to a computer, tablet, smartphone, or Edu-Logger viewer). Materials needed:  900-210 Pressure Sensor  900-215 Battery Materials needed to configure your offline experiment:  900-213 Module or 900-268 module or 900-272 Module ...
  • Page 8 Select which experimental data to upload (5 experimental runs can be stored at one time on the 900-210 pressure sensor). Restoring sensor’s factory default settings: Procedure: Connect the 900-213 module to a PC, Mac, tablet, or smart device. Connect the pressure sensor to a 900-213 module (they directly plug together).
  • Page 9 Included with sensor:  Edu-Logger 900-210 Pressure Sensor Guide (this document).  Attached pressure hose with end piece for easy connection. Sensor specifications 0 to Range and 0 to 7 0 to 700 0 to 7 operation modes 13 bit ADC resolution ±1%...
  • Page 10 This transducer is built as a strain gauge with Wheatstone bridge circuit so its output is a voltage depends on it absolute pressure. Maintenance and storage:  Never submerge the Edu-Logger plastic body in any liquid...

  • Page 11: Warranty

     Do not allow liquid into the Edu-Logger plastic body.  After using the probe, wipe off all excess material, liquid or residue from the sensor.  Store in a box at room temperature out of direct sunlight. Warranty: We promise to deliver our sensor free of defects in materials and workmanship.
  • Page 12 Thank you for using Edu-Logger! Flexible, simple, fast, forward thinking. www.edulab.com info@edulab.com V10012013...
