  • Page 1 Edu-Logger Magnetic Logger Sensor Guide 900-224...

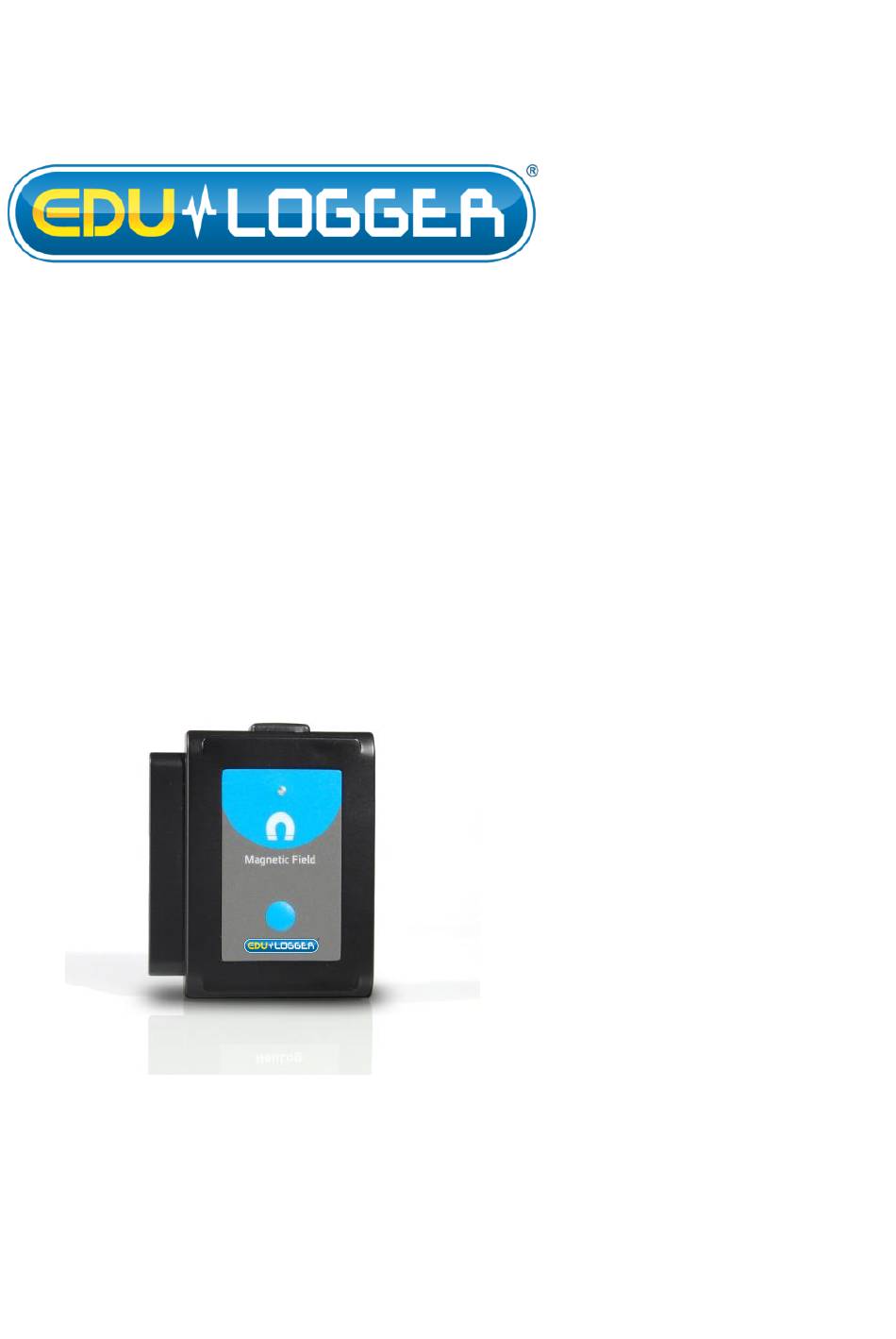

  • Page 2 Edu-Logger magnetic field logger sensor 900-224 The Edu-Logger magnetic field sensor can be used for any science experiment or activity which involves magnetic fields such as in the fields of Physics, Mechanics, Environmental Science, Earth Science, etc. The sensor comes pre-calibrated so you can start experimentation right out of the box using this guide.
  • Page 3 (magnetic field) Quick start procedure: PC or Mac Computer Materials needed:  900-224 Magnetic Field Sensor  900-213 USB Module  USB to mini USB cable (included with the 900- 213 module) Your magnetic field sensor needs to be connected to a 900-213 module.
  • Page 4 900-268 module. The 900-268 module will create a closed Edu-Logger WiFi network which will stream the Edu-Logger data to a device of your choosing. Once your device is wirelessly connected to the Edu- Logger network you can run experiments and collect...
  • Page 5 LED to the far left turns blue; this can take up to one minute. Take your tablet or smart phone, go to the WiFi settings and select the Edu-Logger network which matches the 900-268 Module ID found on back 900-268 device.
  • Page 6 Repeating this operation will return the unit to WiFi mode. Operation with Edu-Logger viewer Materials needed:  900-224 Magnetic Field Sensor  900-272 Viewing Module  900-215 Battery Procedure: Connect the magnetic field sensor to the left side of the viewer.
  • Page 7 (Off-line experiments are for when you do not have a sensor connected directly to a computer, tablet, smartphone, or Edu-Logger viewer). Materials needed:  900-224 Magnetic Field Sensor  900-215 Battery Materials needed to configure your offline experiment:  900-213 Module or 900-268 module or 900-272 Module ...
  • Page 8 Click the “Load data from sensors” button. Select which experimental data to upload. (5 experimental runs can be stored at one time on the 900-224 magnetic field sensor) Restoring sensor’s factory default settings: Procedure: Connect the 900-213 to a PC, Mac, tablet, or smart device.

  • Page 9: Sensor Specifications

    Included with sensor:  Edu-Logger 900-224 Magnetic Field Sensor Guide (this document). Sensor specifications Range and ±10 mT operation modes ADC resolution 15 bit Resolution 0.001 mT Max sample rate 3000 (S/sec) Sensor features:  Fully digital data.  Rugged plastic ergonomic case.
  • Page 10 Videos, literature and other probes can be found www.edulab.com Technical background: The philosophy behind Edu-Logger’s plug and play technology is based on each sensor’s ability to store its own data due to an internal flash memory chip and micro-controller in each plastic Edu-Logger body.
  • Page 11  Never submerge the Edu-Logger plastic body in any liquid.  Do not allow liquid into the magnetic field sensor’s body.  After use, gently wipe away any foreign material from the magnetic field sensor.  Store in a box at room temperature out of direct sunlight.
  • Page 12 Thank you for using Edu-Logger! Flexible, simple, fast, forward thinking. www.edulab.com info@edulab.com V10012013...
