Edu-Logger 900-211 Manual

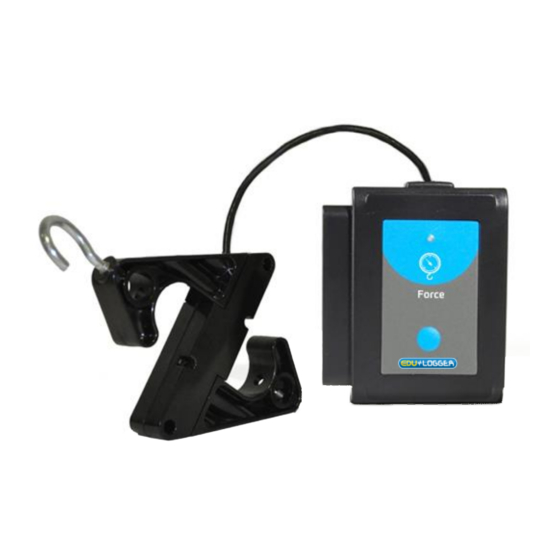

Force logger sensor
Hide thumbs

Advertisement

Quick Links

Download this manual
Edu-logger Force
Logger Sensor Guide
900-211

Advertisement

loading
Need help?

Need help?

Do you have a question about the 900-211 and is the answer not in the manual?

Questions and answers

Related Manuals for Edu-Logger 900-211

Summary of Contents for Edu-Logger 900-211

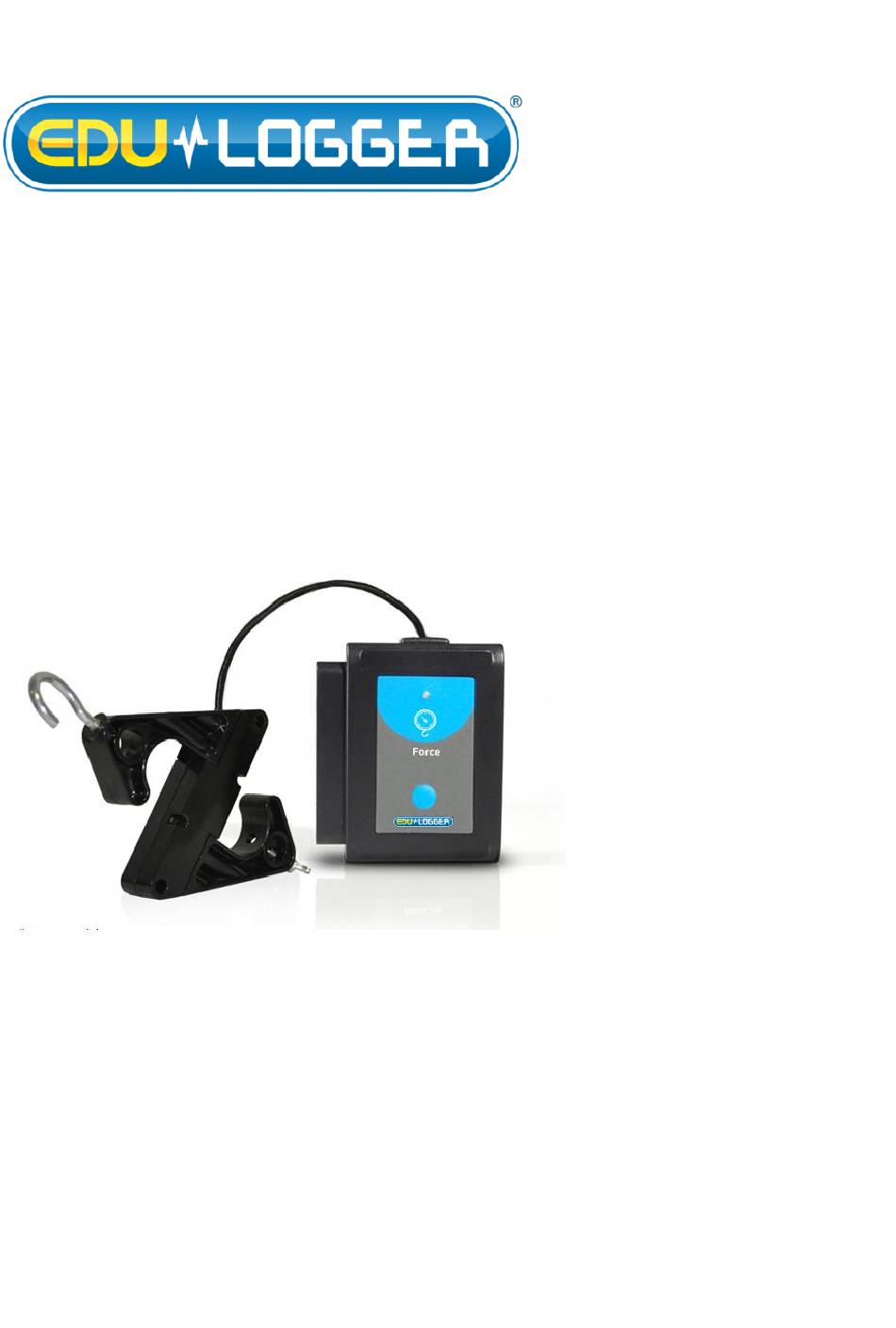

  • Page 1 Edu-logger Force Logger Sensor Guide 900-211...
  • Page 2 The sensor can easily be reset to zero at any time. Hundreds of possible experimental subjects that can be done with the 900-211 sensors are: Applied forces and energy, friction, Newton’s Laws of Motion, physiological concepts, collisions, harmonic motion, and many more.
  • Page 3 “zero” Quick start procedure: PC or Mac Computer Materials needed:  900-211 Force Sensor  900-213 USB Module  USB to mini USB cable (included with the 900- 213 module) Your force sensor needs to be connected to a 900-213 module.
  • Page 4 Note: Make sure not to download and install both types of software they will conflict on the computer. Procedure: Install the Edu-logger software Connect the 900-213 module to the PC or Mac Connect the force sensor to the 900-213 module (they directly plug together).
  • Page 5 Your force sensor needs to be connected to a 900-268 module. The 900-268 module will create a closed Edu-logger WiFi network which will stream the Edu- logger data to a device of your choosing. Once your device is wirelessly connected to the Edu-logger network you can run experiments and collect data through a browser of your choosing.
  • Page 6 213, meaning you can tether the probes directly to the computer using the 900-268. To engage operation in this fashion, press 3 times on the panel key. Repeating this operation will return the unit to WiFi mode. Operation with Edu-logger viewer...
  • Page 7 Materials needed:  900-211 Force Sensor  900-272 Viewing Module  900-215 Battery Procedure: Connect the force sensor to the left side of the viewer. Connect the 900-215 module to the right side of the viewer. The 900-272 will auto detect the sensor and you will see it appear on the left side of the screen.
  • Page 8 Click the “Load data from sensors” button. Select which experimental data to upload. (5 experimental runs can be stored at one time on the 900-211 force sensor) Restoring sensor’s factory default settings: Procedure: Connect the 900-213 to a PC, Mac, tablet, or smart device.
  • Page 9 Included with sensor:  Edu-logger 900-211 force sensor guide (this document).  Utility probe with hook attached to the sensor by a durable rubber-coated wire. Sensor specifications 10 N range 50 N range Range and ± 10 N ± 50 N...
  • Page 10 Pulling or pushing the hooks bends very little the metal rod, changes the strain gauge resistances and the amplifier output voltage. This voltage is converted into force (N) by the sensor controller. Maintenance and storage:  Never submerge the Edu-logger plastic body in any liquid...

  • Page 11: Warranty

     Do not allow liquid into the Edu-logger plastic body.  After using the probe, wipe off all excess material, liquid or residue from the sensor.  Store in a box at room temperature out of direct sunlight.  Avoid storing with weight applied directly to the sensor.
  • Page 12 Thank you for using Edu-logger! Flexible, simple, fast, forward thinking. www.edulab.com info@edulab.com V10012013...
