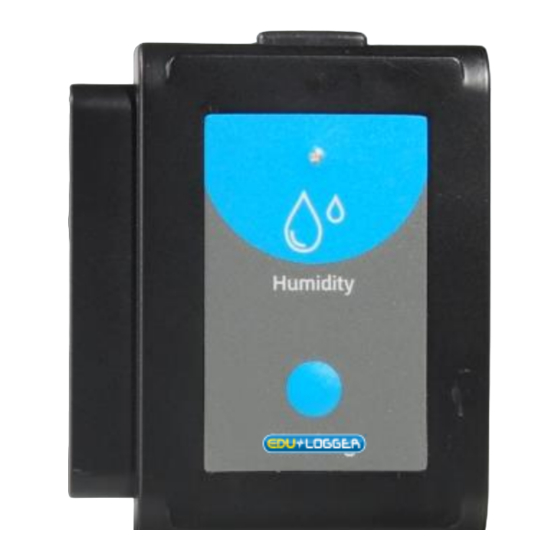

Edu-Logger Relative Humidity
Logger Sensor Guide
900-207

Advertisement

loading
Need help?

Need help?

Do you have a question about the 900-207 and is the answer not in the manual?

Questions and answers

Related Manuals for Edu-Logger 900-207

Summary of Contents for Edu-Logger 900-207

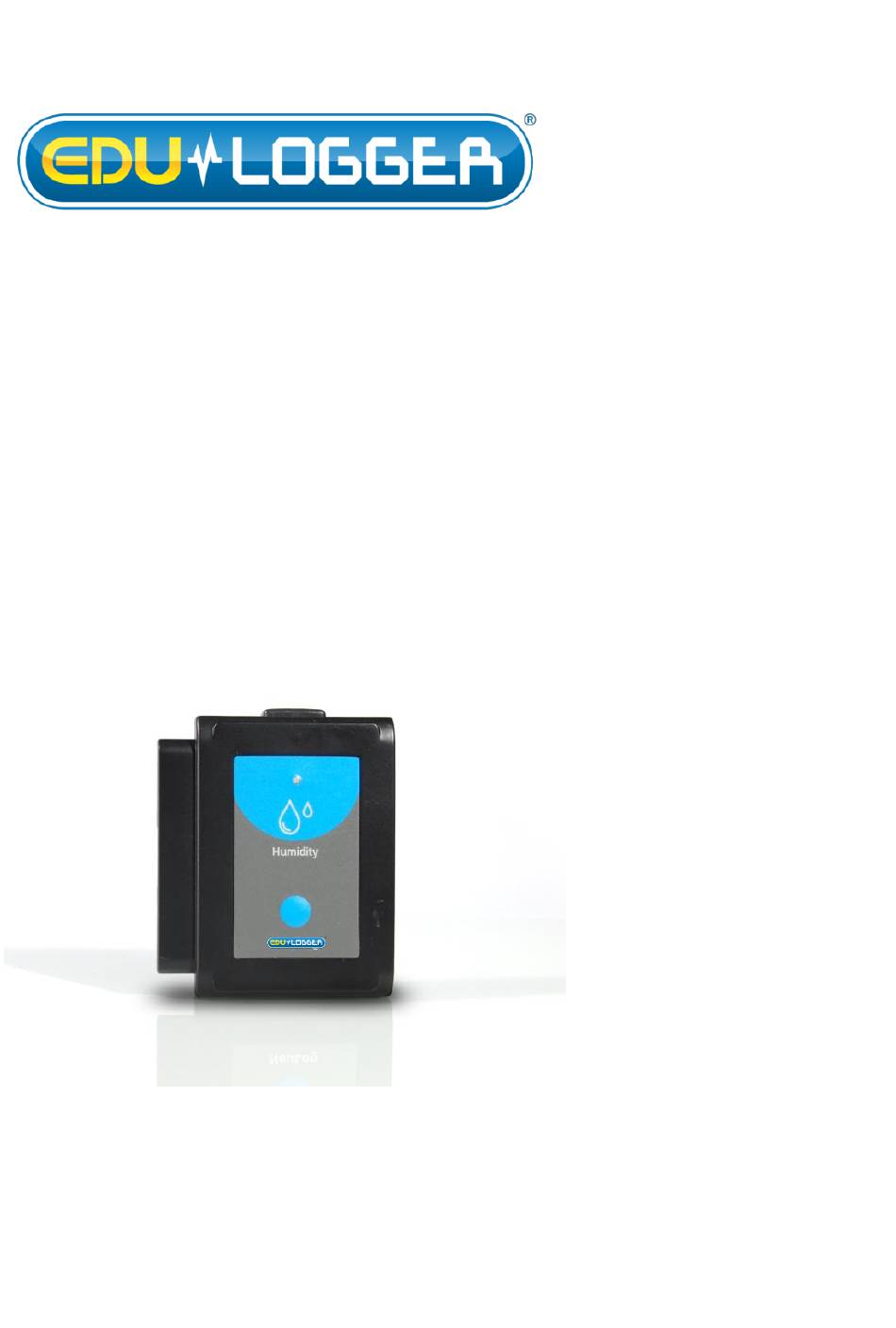

  • Page 1 Edu-Logger Relative Humidity Logger Sensor Guide 900-207...
  • Page 2 Edu-Logger Relative Humidity logger sensor 900-207 The Edu-Logger relative humidity sensor can be used for any science experiment which requires an accurate relative humidity reading such as in the fields of Biology, Physiology, Exercise Science, Chemistry, Environmental Science, Earth Science, Weather Science, Botany, Entomology, etc.
  • Page 3 Quick start procedure: PC or Mac Computer Materials needed:  900-207 Relative Humidity Sensor  900-213 USB Module  USB to mini USB cable (included with the 900- 213 module) Your relative humidity sensor needs to be connected to a 900-213 module. The 900-213 module then connects to a computer via a USB to mini-USB cable.
  • Page 4 900-268 module. The 900-268 module will create a closed Edu-Logger WiFi network which will stream the Edu-Logger data to the device of your choosing. Once your device is wirelessly connected to the Edu- Logger network you can run experiments and collect data through a browser of your choosing.
  • Page 5 LED to the far left turns blue; this can take up to one minute. Take your tablet or smart phone, go to the WiFi settings and select the Edu-Logger network which matches the 900-268 Module ID found on back 900-268 device.
  • Page 6 Repeating this operation will return the unit to WiFi mode. Operation with Edu-Logger viewer Materials needed:  900-207 Relative Humidity Sensor  900-272 Graphic Display Module  900-215 Battery Module Procedure: Connect the relative humidity sensor to the left side of the viewer.
  • Page 7 (Off-line experiments are for when you do not have a sensor connected directly to a computer, tablet, smartphone, or Edu-Logger viewer). Materials needed:  900-207 Relative Humidity Sensor  900-215 Battery Module Materials needed to configure your offline experiment:  900-213 Module, 900-268 module or 900-272 Module.
  • Page 8 Select which experimental data to upload (5 experimental runs can be stored at one time on the 900-207 relative humidity sensor). Restoring sensor’s factory default settings: Procedure: Connect the 900-213 to a PC, Mac, tablet, or smart device. Connect the relative humidity sensor to a 900- 213 module (they directly plug together).
  • Page 9 Included with sensor:  Edu-Logger 900-207 Relative Humidity Sensor guide (this document). Sensor specifications Relative humidity level 0 to 100% RH Range and operation modes ADC resolution 16 bit digital ± 5% RH Accuracy 0.1% Resolution Max sample rate (S/sec) Sensor features: ...
  • Page 10 Videos, literature and other probes can be found www.edulab.com Technical background: The philosophy behind Edu-Logger’s plug and play technology is based on each sensor’s ability to store its own data due to an internal flash memory chip and micro-controller in each plastic Edu-Logger body.
  • Page 11 Maintenance and storage:  Never submerge the Edu-Logger plastic body in any liquid.  Do not allow liquid into the relative humidity sensor’s body.  After use, gently wipe away any foreign material from the relative humidity sensor.  Store in a box at room temperature out of direct sunlight.
  • Page 12 Thank you for using Edu-Logger! Flexible, simple, fast, forward thinking. www.edulab.com info@edulab .com V10012013...
