Edu-Logger 900-234 Manual

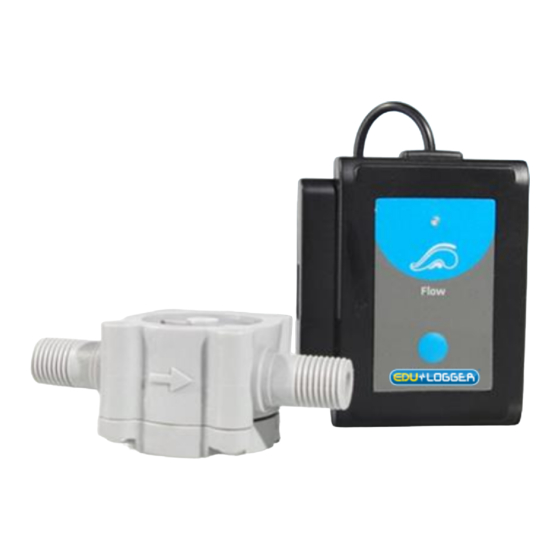

Flow logger sensor
Hide thumbs

Advertisement

Quick Links

Download this manual
Edu-Logger Flow
Logger Sensor Guide
900-234

Advertisement

loading
Need help?

Need help?

Do you have a question about the 900-234 and is the answer not in the manual?

Questions and answers

Related Manuals for Edu-Logger 900-234

Summary of Contents for Edu-Logger 900-234

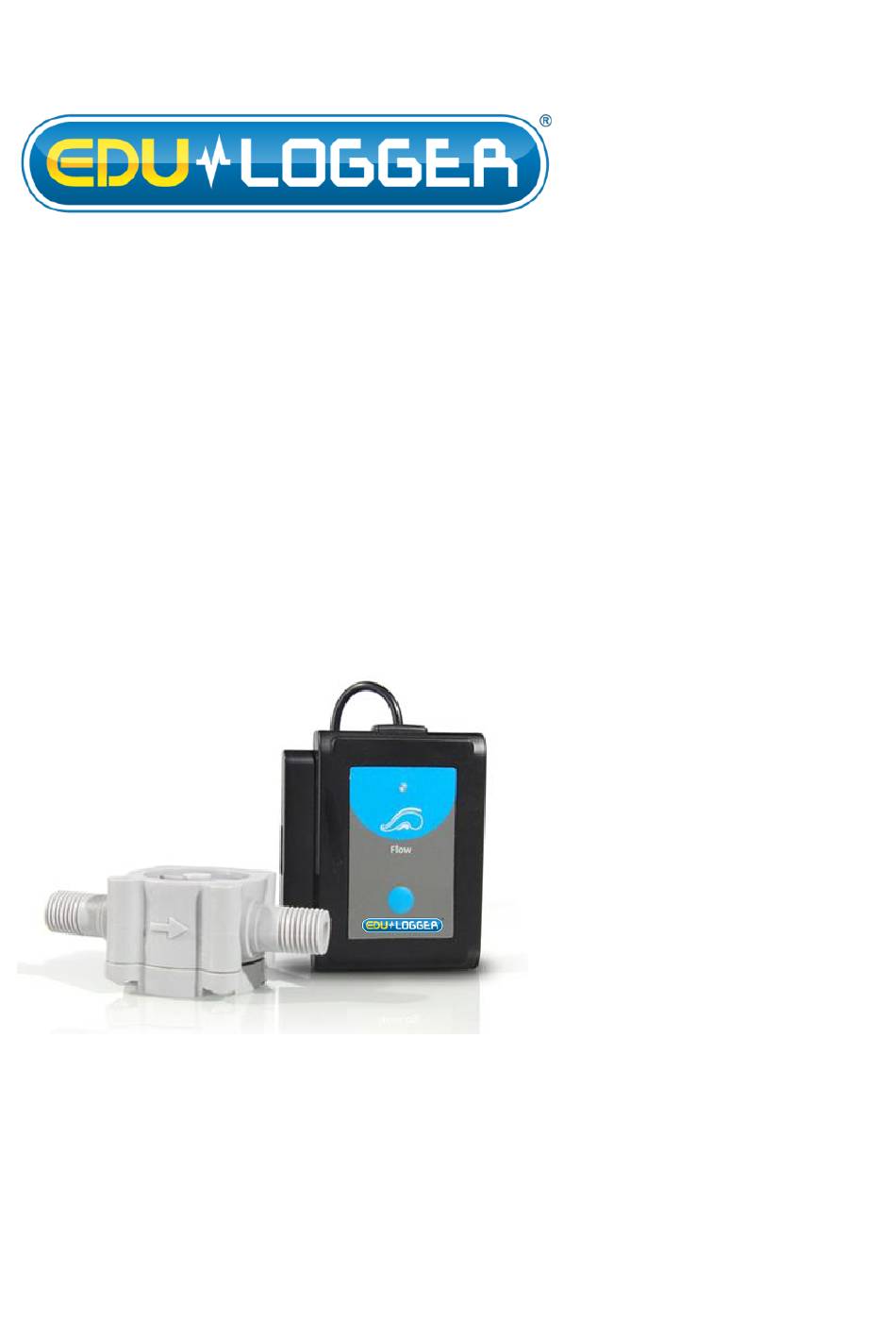

  • Page 1 Edu-Logger Flow Logger Sensor Guide 900-234...
  • Page 2 Hundreds of possible experimental subjects that can be done with the 900-234 sensors are: stream velocity and health, turbidity, density verses flow rate, fluid pressure and flow relationships, and many more.
  • Page 3 Quick start procedure: PC or Mac Computer Materials needed:  900-234 Flow Sensor  900-213 USB Module  USB to mini USB cable (included with the 900- 213 module) Your flow sensor needs to be connected to a 900-213 module.
  • Page 4 Your flow sensor needs to be connected to a 900-268 module. The 900-268 module will create a closed Edu-Logger WiFi network which will stream the Edu- Logger data to a device of your choosing. Once your device is wirelessly connected to the Edu-Logger network you can run experiments and collect data through a browser of your choosing.
  • Page 5 LED to the far left turns blue; this can take up to one minute. Take your tablet or smart phone, go to the WiFi settings and select the Edu-Logger network which matches the 900-268 Module ID found on back 900-268 device.
  • Page 6 Repeating this operation will return the unit to WiFi mode. Operation with Edu-Logger viewer Materials needed:  900-234 Flow Sensor  900-272 Viewing Module  900-215 Battery Procedure: Connect the flow sensor to the left side of the viewer.
  • Page 7 (Off-line experiments are for when you do not have a sensor connected directly to a computer, tablet, smartphone, or Edu-Logger viewer). Materials needed:  900-234 Flow Sensor  900-215 Battery Materials needed to configure your offline experiment:  900-213 Module or 900-268 module or 900-272 Module ...
  • Page 8 Click the “Load data from sensors” button. Select which experimental data to upload. (5 experimental runs can be stored at one time on the 900-234 flow sensor) Restoring sensor’s factory default settings: Procedure: Connect the 900-213 to a PC, Mac, tablet, or smart device.
  • Page 9 Included with sensor:  Edu-Logger 900-234 Flow Sensor Guide (this document).  Flow sensor probe attached directly to the sensor body by a durable rubber-coated wire. Sensor specifications 0 to 4.7 m/s Range and operation modes 16 bit ADC resolution 0.0001 m/s...
  • Page 10 Videos, literature and other probes can be found at  www.edulab.com Technical background: The philosophy behind Edu-Logger’s plug and play technology is based on each sensor’s ability to store its own data due to an internal flash memory chip and micro-controller in each plastic Edu-Logger body.

  • Page 11: Warranty

     Never submerge the Edu-Logger sensor’s plastic body in any liquid.  Do not allow liquid into the flow sensor’s body.  After use, gently wipe away any foreign material from the flow sensor.  Store in a box at room temperature out of direct sunlight.
  • Page 12 Thank you for using Edu-Logger! www.edulab.com V10012013...
