TD350 Series VFD
A.3 Wiring

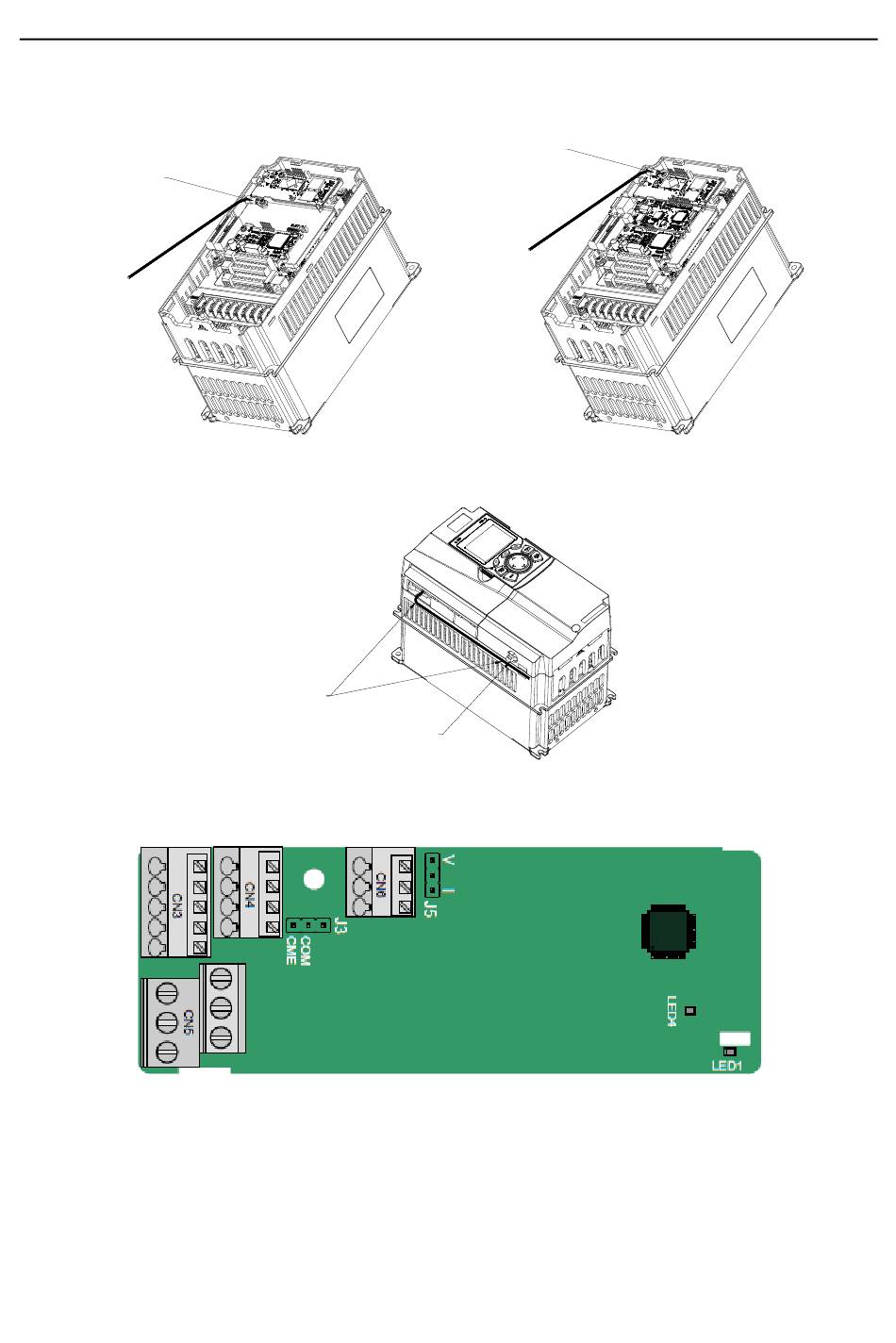

1. Ground a shielded cable as follows:
Grounding position of
the shielded cable
2. Wire an extension card as follows:
A.4 IO extension card (EC-IO501-00) function description
The terminals are arranged as follows:
CME and COM are shorted through J3 before delivery, and J5 is the jumper for selecting the output
type (voltage or current) of AO2.
Fig A.4 Extension card grounding diagram
EC wiring
EC wire binding position
Fig A.5 Extension card wiring
-298-
Grounding position of the
shielded cable
Extension cards
