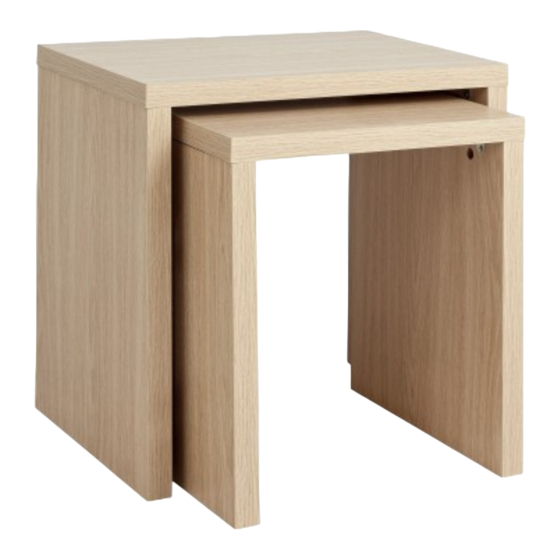

OSCAR NEST OF TABLES
Assembly lnstructions - Please keep for future reference
Dimensions
Large Table
Width - 50cm
Depth - 38 cm
Height - 50 cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Dimensions
Small Table
Width - 39.5cm
Depth - 38 cm
Height - 45 cm
389/7612
424/5005
397/6980
392/6930
Issue 1-16-04-15
