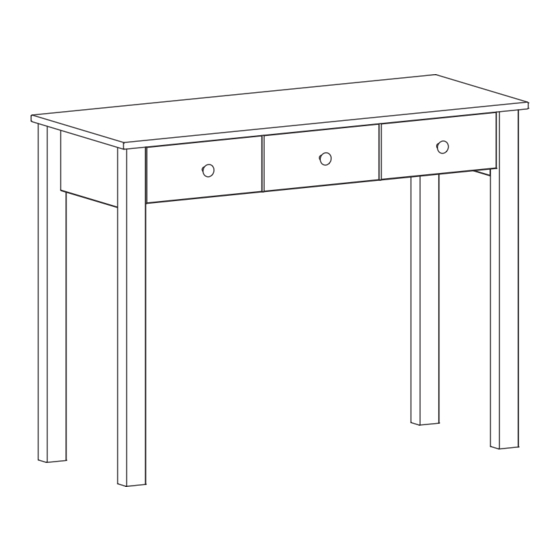

Osaka Dressing Table

Assembly Instructions -

Dimensions

Width

101.2 cm

Depth

40.0 cm

76.0 cm

Height

Assembly Instructions -

If you need help or have damaged or missing parts, call the Argos Customer Helpline: 0845 640 30 30

350265

Please keep for future reference

White 2273237

Black 2281511

Issue 1 - 23-05-2014

Need help?

Do you have a question about the Osaka 2273237 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Osaka 2273237

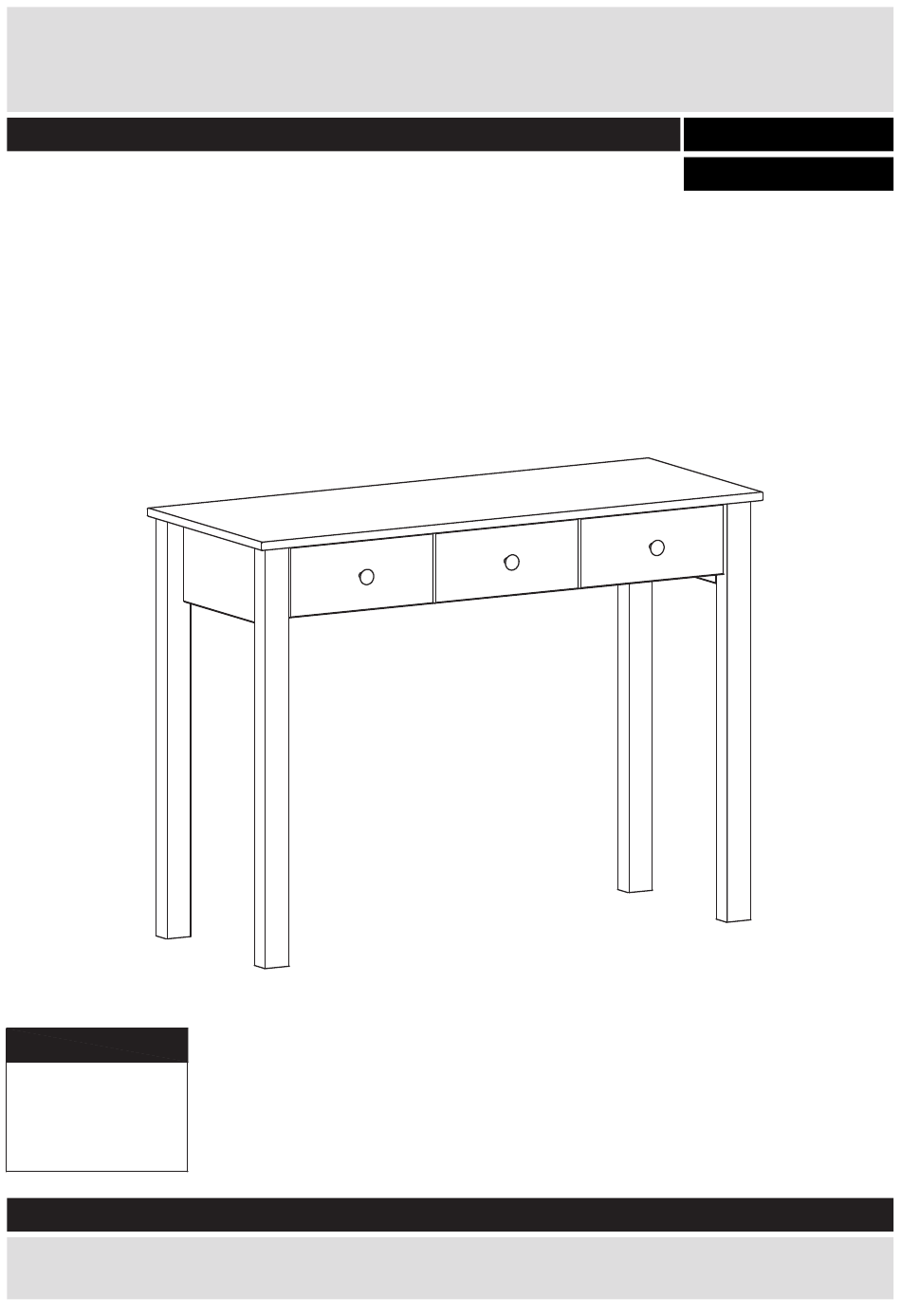

Page 1 101.2 cm Depth 40.0 cm 76.0 cm Height Assembly Instructions - Please keep for future reference If you need help or have damaged or missing parts, call the Argos Customer Helpline: 0845 640 30 30 Issue 1 - 23-05-2014 350265...
Page 2 ! Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on components and tools listed on the product, this could cause pages 2 and 3. damage.
Page 3 Components - Panels If you have damaged or missing components, call the Argos Customer Helpline: 0845 640 30 30 Please check you have all the panels listed below (101,2 cm x 40 cm) Side, right (15 cm x 30,6 cm)
Page 4: Tools Required
Components - Fittings Please check you have all the panels listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. ø8 x 40mm Wooden dowel x ø6 x 30mm Wooden dowel x 12 ø3 x 35mm Screw x ø15 x 10.5mm Cam x 28...
Page 5 Assembly Instructions Step 1 Assembly of the table. Step 1.1 Knock the dowels ø8 x 40mm Wooden dowel x into the holes indicated on the sides using a small hammer. Step 1.2 Screw the bolts into ø5 x 11, cc34mm Bolt x 8 the holes indicated on the legs Step 1.3...
Page 6 Assembly Instructions Step 1.4 Screw the bolts into ø5 x 11, cc34mm Bolt x 6 the holes indicated on the sides Step 1.5 Slide the top of the ø10 x 9mm Spacer x ø5.8 x 19mm Screw x drawer runners backwards.
Page 7 Assembly Instructions Step 1.6 Slide the top of the draw- ø5.8 x 19mm Screw x ø10 x 9mm Spacer x er runners forwards. Place the Spacers as shown, and fix the back end of the drawer runners to the sides using screws through the holes indicated.
Page 8 Assembly Instructions Step 1.9 Slide the top of the drawer ø5.8 x 8mm Screw x 4 245 x 17 x 10mm Drawer runner x runner backwards. Identify the front end of the drawer runner by the two M4 holes. Front end Hole no.
Page 9 Assembly Instructions Step 1.13 Screw the bolts into ø5 x 11, cc34mm Bolt x 8 the holes indicated on the Step 1.14 Place the dividers ø15 x 10.5mm Cam x 4 onto the top Push cams into the holes indicated on the dividers , arrows pointing towards...
Page 10 Assembly Instructions Step 1.16 Place the sides ø15 x 10.5mm Cam x 4 onto the top Push cams into the holes indicated on the sides Arrows pointing towards the top Turn the cams to the right to fix the top Step 1.17 Fix the back rail ø5 x 38mm Screw x...
Page 11 Assembly Instructions Step 2 Assembly of the drawers. Step 2.1 Fix the drawer sides ø3 x 35mm Screw x to the drawer back shown, using screws Step 2.2 Knock the dowels ø6 x 30mm Wooden dowel x 12 into the holes indicated on the drawer sides using a smal hammer.
Page 12 Assembly Instructions Step 2.5 Push the drawer front ø15 x 10.5mm Cam x 6 onto the drawer sides Place cams into the holes indicated. Arrow pointing towards the front. Turn the cams to the right to fix the front. Step 2.6 Important! Back fitting w.
Page 13 40.0 cm Depth 40.0 cm 59.6 cm Height Assembly Instructions - Please keep for future reference If you need help or have damaged or missing parts, call the Argos Customer Helpline: 0845 640 30 30 Issue 1 - 15-05-2014 350266...
Page 14 ! Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on components and tools listed on the product, this could cause pages 2 and 3. damage.
Page 15 Components - Panels If you have damaged or missing components, call the Argos Customer Helpline: 0845 640 30 30 Please check you have all the panels listed below (40 cm x 40 cm) Front rail (28,2 cm x 6 cm)
Page 16 Components - Fittings Please check you have all the panels listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. ø7.8 x 40mm Wooden dowel x ø6 x 30mm Wooden dowel x 12 ø3 x 35mm Screw x ø15 x 10.5mm Cam x 12...
Page 17 Assembly Instructions Step 1 Assembly of the chest. Step 1.1 Screw the bolts into ø5 x 8, cc34mm Bolt x 4 the holes indicated on the Step 1.2 Fix the posts onto the ø4 x 25mm Screw x sides using screws into the holes indicated.
Page 18 Assembly Instructions Step 1.4 Slide the top of the ø5.8 x 8mm Screw x 12 245 x 17 x 10mm Drawer runner x drawer runners backwards. You can identify the front end of the drawer runner Hole no. 1 Front end the two M4 holes.
Page 19 Assembly Instructions Step 1.6 Fix the angles using 44 x 23 x 23mm Angle x ø4,2 x 9,5mm Screw x screws into the holes indicated on the front rail Step 1.7 Knock the dowels into ø7.8 x 40mm Wooden dowel x the holes indicated on the back rail using a...
Page 20 Assembly Instructions Step 1.10 Place the front rail ø4,2 x 9,5mm Screw x as shown. Fix the angles to the sides using screws See detail. Step 1.11 Distribute equally ! Place the back into 1.2 x 15mm Nail x the rabbet on the top and onto the posts Important! Make sure the...
Page 21 Assembly Instructions Step 2 Assembly of the drawers. Step 2.1 Fix the drawer sides ø3 x 35mm Screw x to the drawer back shown, using screws Step 2.2 Knock the dowels ø6 x 30mm Wooden dowel x 12 into the holes indicated on the drawer sides using a smal hammer.
Page 22 Assembly Instructions Step 2.5 Push the drawer fronts ø15 x 10.5mm Cam x 6 onto the drawer sides Place cams into the holes indicated. Arrow pointing towards the front. Turn the cams to the right to fix the fronts. Step 2.6 Important! Back fitting w.
Page 23 Width 100.3 cm Depth 52.0 cm 181.2 cm Height Assembly Instructions - Please keep for future reference If you need help or have damaged or missing parts, call the Argos Customer Helpline: 03456 400 800 Issue 1 - 09-10-2014 350313...
Page 24 ! Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on components and tools listed on the product, this could cause pages 2 and 3. damage.
Page 25 Components - Panels If you have damaged or missing components, call the Argos Customer Helpline: 03456 400 800 Please check you have all the panels listed below (100,3 cm x 52 cm) Divider, large (134,5 cm x 48,4 cm) H-profile...
Page 26 Components - Fittings Please check you have all the panels listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. ø7.8 x 40mm Wooden dowel x ø6 x 30mm Wooden dowel x 16 ø3 x 12mm Screw x ø3 x 35mm Screw x...
Page 27 Assembly Instructions Step 1 Assembly of the wardrobe. Step 1.1 Fix the posts onto the ø4 x 25mm Screw x sides using screws into the holes indicated. The top of the posts and the sides must flush. 350313-05 350264-05...
Page 28 Assembly Instructions Step 1.2 Knock the dowels into ø7.8 x 40mm Wooden dowel x ø5 x 8, cc34mm Bolt x 8 the holes indicated on the sides using a small hammer. Screw the bolts into the holes indicated on the sides Step 1.3 Fix the Crossplates ø3 x 12mm Screw x...
Page 29 Assembly Instructions Step 1.4 Slide the top of the ø5.8 x 19mm Screw x 310 x 17 x 10mm Drawer runner x drawer runners backwards. You can identify the front end of the drawer runner ø10 x 9mm Spacer x Hole no.
Page 30 Assembly Instructions Step 1.6 Knock the dowels into ø7.8 x 40mm Wooden dowel x the holes indicated on the large divider the small divider using a small hammer. Step 1.7 Fix the Crossplates ø3 x 12mm Screw x Support for hanger rail - 15mm x to the large divider using the pre-mounted screws.
Page 31 Assembly Instructions Step 1.8 Slide the top of the ø5.8 x 8mm Screw x 4 310 x 17 x 10mm Drawer runner x drawer runners backwards. You can identify the front end of the drawer runner Front end the two M4 holes. Hole no.
Page 32 Assembly Instructions Step 1.12 Fix the angles using ø5 x 8, cc34mm Bolt x 1 ø4,2 x 9,5mm Screw x screws into the holes indicated on the front rail 44 x 23 x 23mm Angle x Step 1.13 Knock the dowels into ø7.8 x 40mm Wooden dowel x ø5 x 8, cc34mm Bolt x 4...
Page 33 Assembly Instructions Step 1.15 Place the large divider ø15 x 10.5mm Cam x 3 onto the bottom Push cams into the holes indicated on the large divider . Arrows pointing towards the bottom Turn the cams to the right to fix the large divider Step 1.16 Screw the bolts...
Page 34 Assembly Instructions Step 1.18 Place the sides ø15 x 10.5mm Cam x 8 onto the bottom 9 and the back rail Push cams into the holes indicated on the bottom and the back rail . Arrows pointing towards the sides Turn the cams to the right to fix the sides...
Page 35 Assembly Instructions Step 1.20 Place the front rail ø15 x 10.5mm Cam x 1 onto the small diivider as shown. Push cam into the hole indicated on the small divider . Arrow pointing towards the front rail Turn the cams to the right to fix the sides Step 1.21...
Page 36 Assembly Instructions Step 1.22 Place one of the backs 1.2 x 15mm Nail x into the rabbet on the and onto the post and the large divider Distribute equally ! Important! 7mm from edge of Divider ! Make sure the angle between the top and the post...
Page 37 Assembly Instructions Step 1.23 Place the backs into ø3 x 12mm Screw x 1.2 x 15mm Nail x the rabbet on the top into the H-profile onto the post Back fitting - 14 x 19mm x Important! Make sure the angle between the and the post 90°...
Page 38 Assembly Instructions Step 1.24 Important! Shelf support x The wardrobe is heavy. Lift with care. Wall strap and instruction x 1 ø5.8 x 8mm Screw x 8 Its recommended that the wardrobe is fixed to the wall. Use the fittings .
Page 39 Assembly Instructions Step 2 Assembly of the drawers. Step 2.1 Fix the drawer sides ø3 x 35mm Screw x to the drawer back as shown, using screws Step 2.2 Knock the dowels ø6 x 30mm Wooden dowel x 16 into the holes indicated on the drawer sides using a smal hammer.
Page 40 Assembly Instructions Step 2.3 Slide the drawer bottom into the drawer sides Step 2.4 Screw the bolts into ø5 x 8, cc34mm Bolt x 8 the holes indicated on the drawer front Step 2.5 Push the drawer front ø15 x 10.5mm Cam x 8 onto the drawer sides Place cams into the...
Page 41 Assembly Instructions Step 2.7 Fix the metal knobs ø27 x 24mm Metal Knob x M4 x 20mm Screw x the drawer front using screws Step 2.8 Pull out the drawer M4 x 9mm Screw x runners. Slide the drawers onto the runners. Fit and fix the lower drawer first and work your way up.
Page 42 Assembly Instructions Step 3 Door, center Door, left Door, right Assembly of the doors. Note ! Two types of hinges is included. Type must be used on the center door and type must be used on the outer doors. Step 3.1 Place the two cup ø3 x 12mm Screw x ø26mm...
Page 43 Assembly Instructions Step 3.2 Place the hanger rail ø27 x 24mm Metal Knob x M4 x 20mm Screw x into the supports Slide the cup hinges onto the crossplates Fix the hinges using the premounted screw in the crossplates. See details below on how to fit the cup hinge onto the cross plate Fix the metal knobs...
Page 44 ALL the crossplates. Argos Customer Helpline: 03456 400 800 If you need help or have damaged or missing parts, call the Home Retail Group - 489-499 Avebury Boulevard - Saxon Gate West - Central Milton Keynes MK9 2NW...
Page 45 A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General Rule Always use a larger screw and wall plug if you are not sure.
