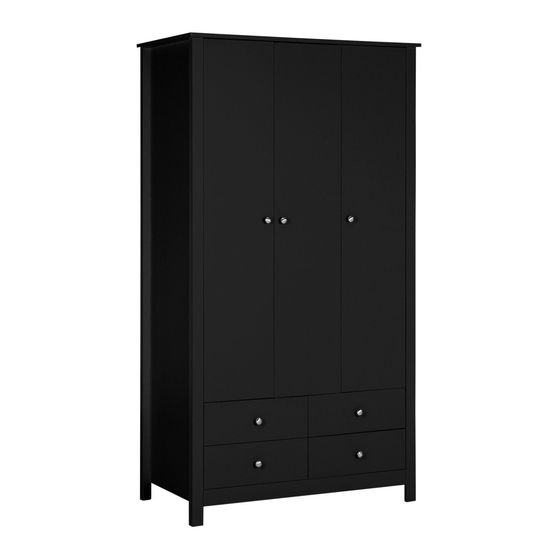

Osaka 3 Door 4 Drawer Wardrobe
Assembly Instructions -
Dimensions
:
Width
100.3 cm
Depth
:
52.0 cm
:
181.2 cm
Height
Assembly Instructions -
If you need help or have damaged or missing parts, call the Argos Customer Helpline: 0845 640 30 30
350264
Please keep for future reference
Please keep for future reference
White 2587356
Black 2581699
Issue 1 - 15-05-2014
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 2587356
Summary of Contents for Argos 2587356
- Page 1 100.3 cm Depth 52.0 cm 181.2 cm Height Assembly Instructions - Please keep for future reference If you need help or have damaged or missing parts, call the Argos Customer Helpline: 0845 640 30 30 Issue 1 - 15-05-2014 350264...
- Page 2 ! Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on components and tools listed on the product, this could cause pages 2 and 3. damage.
- Page 3 Components - Panels If you have damaged or missing components, call the Argos Customer Helpline: 0845 640 30 30 Please check you have all the panels listed below (100,3 cm x 52 cm) Divider, large (134,5 cm x 48,4 cm)
-
Page 4: Tools Required
Components - Fittings Please check you have all the panels listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. ø7.8 x 40mm Wooden dowel x ø6 x 30mm Wooden dowel x 16 ø3 x 12mm Screw x ø3 x 35mm Screw x... - Page 5 Assembly Instructions Step 1 Assembly of the wardrobe. Step 1.1 Fix the posts onto the ø4 x 25mm Screw x sides using screws into the holes indicated. The top of the posts and the sides must flush. 350264-05...
- Page 6 Assembly Instructions Step 1.2 Knock the dowels into ø7.8 x 40mm Wooden dowel x ø5 x 8, cc34mm Bolt x 8 the holes indicated on the sides using a small hammer. Screw the bolts into the holes indicated on the sides Step 1.3 Fix the Crossplates ø3 x 12mm Screw x...
- Page 7 Assembly Instructions Step 1.4 Slide the top of the ø5.8 x 19mm Screw x 310 x 17 x 10mm Drawer runner x drawer runners backwards. You can identify the front end of the drawer runner ø18 x 9mm Spacer x Hole no.
- Page 8 Assembly Instructions Step 1.6 Knock the dowels into ø7.8 x 40mm Wooden dowel x the holes indicated on the large divider the small divider using a small hammer. Step 1.7 Fix the Crossplates ø3 x 12mm Screw x Support for hanger rail - 15mm x to the large divider using the pre-mounted screws.
- Page 9 Assembly Instructions Step 1.8 Slide the top of the ø5.8 x 8mm Screw x 4 310 x 17 x 10mm Drawer runner x drawer runners backwards. You can identify the front end of the drawer runner Front end the two M4 holes. Hole no.
- Page 10 Assembly Instructions Step 1.12 Fix the angles using ø5 x 8, cc34mm Bolt x 1 ø4,2 x 9,5mm Screw x screws into the holes indicated on the front rail 44 x 23 x 23mm Angle x Step 1.13 Knock the dowels into ø7.8 x 40mm Wooden dowel x ø5 x 8, cc34mm Bolt x 4...
- Page 11 Assembly Instructions Step 1.15 Place the large divider ø15 x 10.5mm Cam x 3 onto the bottom Push cams into the holes indicated on the large divider . Arrows pointing towards the bottom Turn the cams to the right to fix the large divider Step 1.16 Screw the bolts...
- Page 12 Assembly Instructions Step 1.18 Place the sides ø15 x 10.5mm Cam x 8 onto the bottom 9 and the back rail Push cams into the holes indicated on the bottom and the back rail . Arrows pointing towards the sides Turn the cams to the right to fix the sides...
- Page 13 Assembly Instructions Step 1.20 Place the front rail ø15 x 10.5mm Cam x 1 onto the small diivider as shown. Push cam into the hole indicated on the small divider . Arrow pointing towards the front rail Turn the cams to the right to fix the sides Step 1.21...
- Page 14 Assembly Instructions Step 1.22 Place one of the backs 1.2 x 15mm Nail x into the rabbet on the and onto the post and the large divider Distribute equally ! Important! 7mm from edge of Divider ! Make sure the angle between the top and the post...
- Page 15 Assembly Instructions Step 1.23 Place the backs into ø3 x 12mm Screw x 1.2 x 15mm Nail x the rabbet on the top into the H-profile onto the post Back fitting - 14 x 19mm x Important! Make sure the angle between the and the post 90°...
- Page 16 Assembly Instructions Step 1.24 Important! Shelf support x The wardrobe is heavy. Lift with care. Wall strap and instruction x 1 ø5.8 x 8mm Screw x 8 Its recommended that the wardrobe is fixed to the wall. Use the fittings .
- Page 17 Assembly Instructions Step 2 Assembly of the drawers. Step 2.1 Fix the drawer sides ø3 x 35mm Screw x to the drawer back as shown, using screws Step 2.2 Knock the dowels ø6 x 30mm Wooden dowel x 16 into the holes indicated on the drawer sides using a smal hammer.
- Page 18 Assembly Instructions Step 2.3 Slide the drawer bottom into the drawer sides Step 2.4 Screw the bolts into ø5 x 8, cc34mm Bolt x 8 the holes indicated on the drawer front Step 2.5 Push the drawer front ø15 x 10.5mm Cam x 8 onto the drawer sides Place cams into the...
- Page 19 Assembly Instructions Step 2.7 Fix the metal knobs ø27 x 24mm Metal Knob x M4 x 20mm Screw x the drawer front using screws Step 2.8 Pull out the drawer M4 x 9mm Screw x runners. Slide the drawers onto the runners. Fit and fix the lower drawer first and work your way up.
- Page 20 Assembly Instructions Step 3 Door, center Door, right Door, left Assembly of the doors. Note ! Two types of hinges is included. Type must be used on the center door and type must be used on the outer doors. Step 3.1 Place the two cup ø3 x 12mm Screw x ø26mm...
- Page 21 Assembly Instructions Step 3.2 Place the hanger rail ø27 x 24mm Metal Knob x M4 x 20mm Screw x into the supports Slide the cup hinges onto the crossplates Fix the hinges using the premounted screw in the crossplates. See details below on how to fit the cup hinge onto the cross plate Fix the metal knobs...
- Page 22 ALL the crossplates. Argos Customer Helpline: 0845 640 30 30 If you need help or have damaged or missing parts, call the Home Retail Group - 489-499 Avebury Boulevard - Saxon Gate West - Central Milton Keynes MK9 2NW...
