- Page 1 Spectra Rollator OWNERS HANDBOOK Product Code: WA01064...

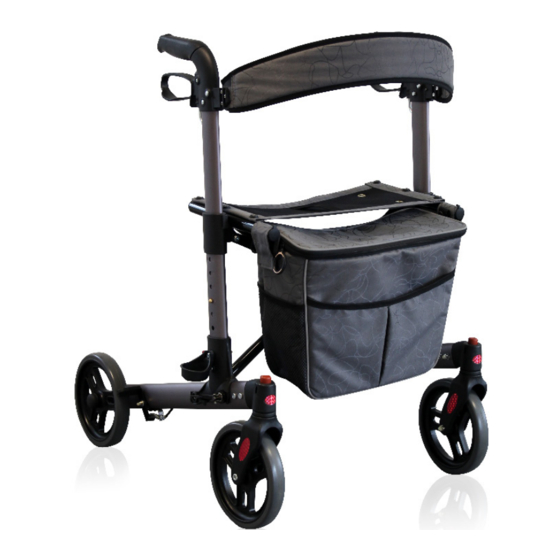

- Page 2 Your Tuni Spectra Rollator Product Features The Tuni Spectra Rollator folds to a compact size for easy storage. 2. Height-adjustable handles for the user’s safety and comfort are included. 3. Swivel front wheels offer easy control. 4. The curb climber design manoeuvres easily over obstructions.
- Page 3 Introduction Thank you for purchasing the Tuni Spectra Rollator. The Spectra Rollator has been designed and manufactured to meet our own high level of specifications and we hope you will be delighted with your purchase. The Spectra Rollator is a lightweight and portable rollator designed to aid the user to walk and offer stability and security to the user.
- Page 4 Read Before Use Ensure rollator is level to the ground before using. All screws must be tightened, ensuring there is no movement. DO NOT hang anything on either side frame. This will: (A) cause side tube to bend, and make the rollator unstable, and/or (B) cause rollator to tip, resulting in injury or damage.
- Page 5 Figure 2 To open the rollator, open the handles away from each other as shown in figure 3. Press the seat downwards. Continue pushing the seat downwards until it clicks into the plastic slots on each side. The rollator will remain open as shown in figure 4: Figure 3 Figure 4...
- Page 6 Figure 5 To completely fold the rollator, unlock the left and right black metal levers from the slots on the leg tubes. Rotate by 90 degrees and place towards the front wheel. Pull the handle tubes carefully down towards the back wheels. The red levers will engage and click into place when this is fully folded.
- Page 7 Figure 6 Figure 7 Adjusting the Handle Tube The rollator height should be adjusted so that when the user’s arm is down by their side, the handgrip is at wrist height. This will ensure the arms are at an approximate 20°-30° bend when using the rollator.
- Page 8 To release the brake system, loosen the brake nut on the inside of the leg tube in a clockwise direction as shown in figure 9: Figure 9 Note: To loosen the brake, rotate the nut anti-clockwise. Using the Hand Brake Pull the top of the brake handles up towards the hand grips to activate the hand brake.
- Page 9 Safety Summary To ensure the safe operation of the rollator, these instructions MUST be followed: DO NOT install or use this equipment before reading and understanding this instruction sheet. Please keep this manual properly for future reference. If you are unable to understand the warnings, cautions or instructions, contact a healthcare professional, dealer or technical personnel before attempting...
- Page 10 Failure to follow these warnings can result in personal injury. Care should be taken to ensure that ALL hand and height adjustment are secure and that moving parts are in good working order before using this or any mobility aid. In the process of using, all wheels must always be in contact with the ground.
- Page 11 • Ensure that every part of the rollator is secure at ALL times. • Ensure the metal buttons are protruding from the handle tube. • Replace any broken, damaged or worn items immediately. • Wash the bag with water or gentle detergent.
