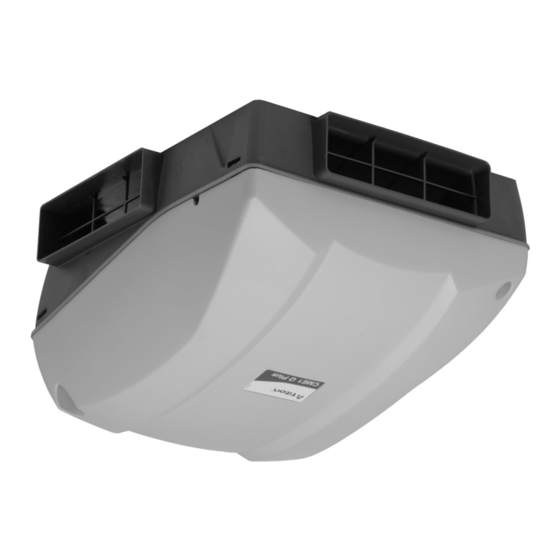

Titon CME2.1 Q Plus TP312CH Product Manual

Titon CME2.1 Q Plus TP312CH Product Manual

Extract ventilation unit with humidity sensor and auralite/controller connection
Table of Contents

Advertisement

Quick Links

Extract Ventilation Unit
Product Manual
Extract Ventilation Unit with Humidity Sensor
and auralite/controller connection
EN
CME2.1 Q Plus
TP312CH
TP313CH
ventilation systems

Advertisement

Table of Contents
loading

Summary of Contents for Titon CME2.1 Q Plus TP312CH

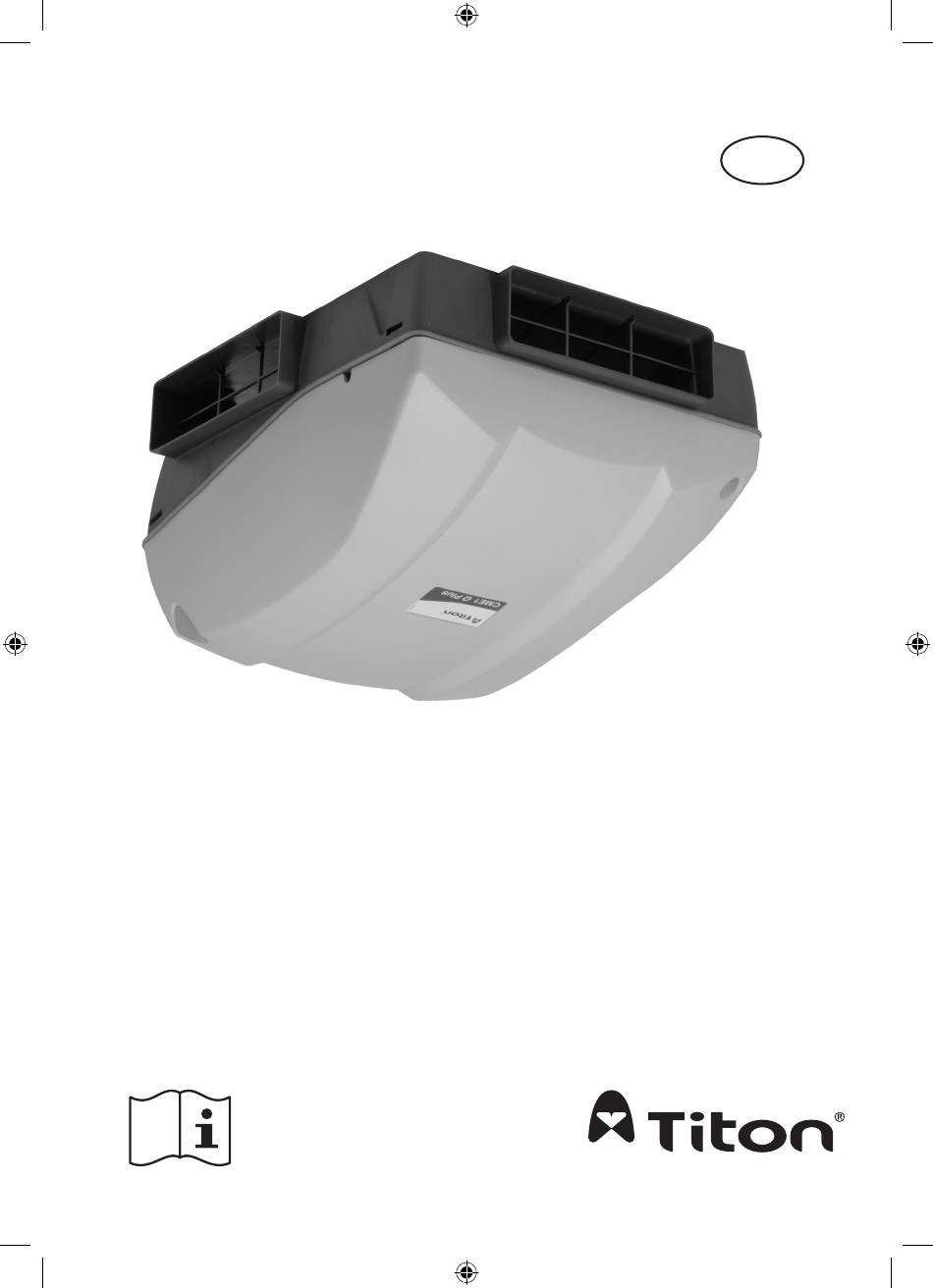

  • Page 1 CME2.1 Q Plus Extract Ventilation Unit with Humidity Sensor and auralite/controller connection TP312CH TP313CH Extract Ventilation Unit Product Manual ventilation systems...
  • Page 2 Warnings, Safety information and Guidance Important Information Important: read these instructions fully before the installation of this appliance 1. Installation of the appliance and accessories must be carried out by a qualified and suitably competent person and be car- ried out in clean, dry conditions where dust and humidity are at minimal levels.
  • Page 3 10. The appliance is not suitable for installation to the exterior of the dwelling. 11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 4: Table Of Contents

    Contents Warnings, Safety information and Guidance Commissioning Important Information                         2 TP312CH & TP313CH                         22 Control Parameters                     22 Product Overview Commissioning                        23...
  • Page 6: Product Overview

    Product Overview Dimensions This diagram details the overall size of the unit and the additional space required around the unit to allow for commissioning and future servicing and maintenance. Service Void All dimensions in mm...
  • Page 7: Component Identification

    Component Identification Cover / Scroll / Inlet Ring assembly Base Cover Scroll Inlet ring Unit components...
  • Page 8: Packaging Contents

    The CME2.1 Q Plus is controllable by various volt-free switches and sensors. Mains switching can be achieved by use of the Titon Boxed Relay 5A TP 505. The following describes the controls and features of the CME2.1 Q Plus and how they are controlled.
  • Page 9: Setback Speed

    CME21 Q Plus Model Part Number TP312CH TP313CH Complete unit 2nd Fix Cover / Scroll / Inlet Ring assembly Setback Speed Continuous Speed Boost Speed Boost Overrun Timer Remote indicator panel or control connection (auralite) Integrated Humidity Sensor Setback Speed Setback Speed is a reduced ventilation rate.
  • Page 10 Boost Speed with Overrun Timer Boost Speed is an increased speed providing higher extract air flow. Boost Speed is configured using a step-less independent fan control potentiometer. The Boost Speed can be triggered by any device which provides a volt-free one-way switch, such as a PIR, thermostat, humidistat or a standard one-way switch Boost Overrun Timer Boost Overrun Timer maintains the Boost Speed for a specific time variable between...
  • Page 11: Remote Indicator Panel (Auralite) Or Control

    LED ventilation system status indicator, designed to fit a standard UK patress or recessed backbox. The indicator is for use with specific Titon CME units. The indicator has six LEDs which display Setback...
  • Page 12: Installation

    Installation Fixing The unit must be securely fixed to a smooth flat surface, any orientation is possible. Mark the four fixing hole centres using the Base as a template. Drill holes for fixings, use 4mm Pan Head screws. Always use a fixing type and length suited to the substrate type.
  • Page 13 Unscrew the 2 retaining screws that hold on the Cover and remove, retain the screws. Fit two screws from the Screw Pack through the preformed holes at the front of the Inlet Ring to securely fix the Inlet Ring/Scroll assembly to the Base.
  • Page 14: Ducting Connections                        14

    Ducting Connections Titon recommend the use of guidance given in the Domestic Ventilation Compliance Guide 2010 Edition ISBN-978 1 85946 378 9 and Approved Document Part F 2010 ISBN-978 1 85946 370 3 for all installations in the United Kingdom.
  • Page 15 10. All insulation to be the equivalent of at least 25mm of insulating material with a thermal conductivity of 0.04 W/(mK). 11. Ducting must be installed in such a way that resistance to airflow is minimised. 12. Ducting connected to the Extract Port to Outside must be to the external air outside the building envelope.
  • Page 16: How To Convert Port Cover               16

    How to Convert Port Cover To enable fitment of 110 x 54mm ducting, modify the Convertible Port Cover by tearing out the ‘rip strip’ . When using the convertible port cover ensure the tear out section is completely removed.
  • Page 17: Wiring Connections Access               17

    Wiring Connections Access Access to the connections for mains, boost and other volt-free control functions is via removal of the Cover and the internal printed circuit board cover. Printed circuit board cover must be replaced following connection of wiring. Cable Access Printed circuit board cover...
  • Page 18: Wiring Diagrams                       18

    Wiring Diagrams 3A Fuse All Pole Isolator Supply Wiring Diagram 230V~50/60Hz Volt-free boost switching of unit’s controller PCB using single-pole switches TP 502, TP 503, TP 507 and/or TP500 / TP501 Humidistat. TP500/TP501 There maximum of 10 single pole switches or humidistats that can used.
  • Page 19: Wiring Diagrams                       19

    Wiring Diagrams Volt-free setback switching of the unit’s controller PCB using single- pole latching switch and / or volt-free normally open relay contacts To avoid the unit being inadvertently left in Setback Mode, it is recom- mended that only one latching switch is tted.
  • Page 20: Wiring Diagrams                       20

    Wiring Diagrams +V(5V) +V(5V) Connection of auralite...
  • Page 22: Commissioning

    Commissioning TP312CH & TP313CH The fan speeds of the Titon CME2.1 Q Plus will require adjustment to ensure that the flow rates achieved provide adequate ventilation. The Titon CME2.1 Q Plus has 3 standard fan speed settings, Continuous Speed, Boost Speed and Setback Speed.
  • Page 23 Commissioning Move the Commissioning Switch to the Program Position. The CME2.1 Q Plus will automatically switch between Setback Speed, Continuous Speed and Boost Speed when adjusting the respective Commissioning potentiometer. Switch Rotate the Speed adjustment t board cover Commissioning Switch in Program position potentiometer to achieve required air flow for each speed.
  • Page 24: Boost Overrun                         24

    Commissioning Switch Boost Overrun Printed circuit board cover Boost Overrun is variable between 0 and 30 minutes. Rotate potentiometer to change overrun time. Boost Overrun adjustment can be done at any time without the need to move the Commissioning Switch. Boost Overrun Pot positions Humidity Sensor The Humidity Sensor’s set point is...
  • Page 25: Controller Reset                        25

    Controller Reset Following a controller reset the ventilation system will need to be fully re- commissioned. The unit will need to be powered up during the reset procedure. Place the Commissioning Switch in the Run Position Rotate the Setback, Continuous and Boost Speed adjustment potentiometers fully clockwise.
  • Page 26: Maintenance

    The CME2.1 Q Plus must be periodically cleaned internally. The maximum time between cleaning will depend on the local environment. Titon recommend the unit be cleaned every 3 – 4 years at a minimum.
  • Page 27: Access To The Interior For Cleaning        27

    Access to the Interior for Cleaning To gain access to the interior of the unit for cleaning – Unscrew the 3 retaining screws that hold on the Cover and remove Remove the 4 Scroll retaining screws. Using a flat bladed screw driver, un-clip Scroll from Inlet Ring by disengaging the 3 retaining clips.
  • Page 28 Remove the 3 retaining screws Using a flat bladed screwdriver, un-clip the Inlet Ring from Base by disengaging the 4 retaining clips. Carefully remove dust from the unit and fan blades using a vacuum cleaner. Wipe with damp cloth and mild detergent.
  • Page 29: Technical

    Static efficiency of fan in accordance with (EU) No 327/2011 35% - < 125W motor Declared maximum internal leakage rate (%) Energy performance of the filters Casing sound power level (L 57dB(A) Filter Warning (RVU) Internet address (for disassembly instructions) www.titon.co.uk...
  • Page 30: Service Record                              30

    Service Record Serviced by Company Name Date Notes...
  • Page 31: Installed

    This unit should be returned to your distributor or to a local recycling service. Respect the local environmental rules. 894 The Crescent, Colchester Business Park, Colchester CO4 9YQ Tel: +44 (0) 1206 713800 Fax: +44 (0) 1206 543126 Email: ventsales@titon.co.uk Web: www.titon.com...
  • Page 32 ©2022 TITON DO 5790 Issue 03...
