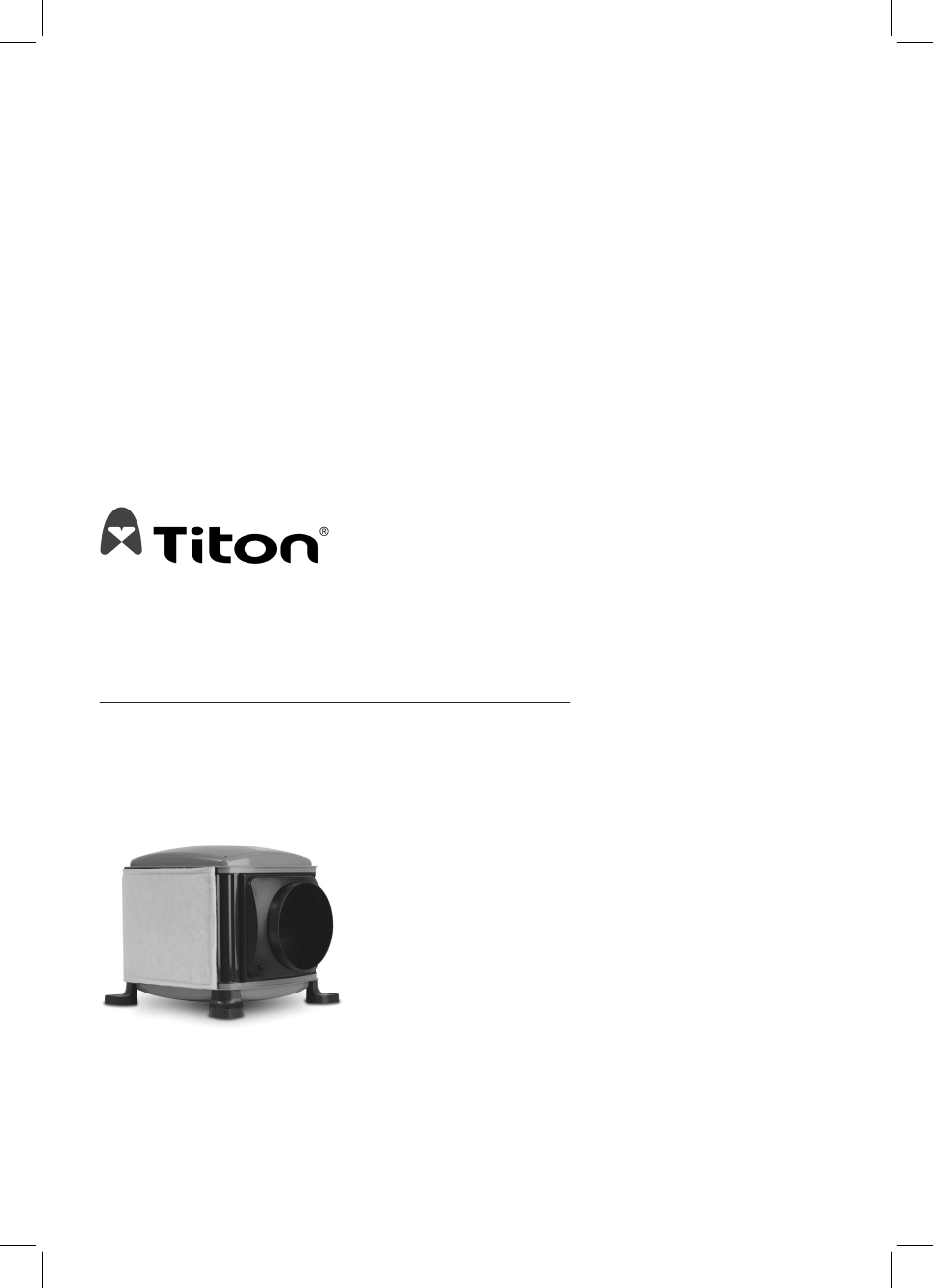

- Page 1 PIV L3 Unit 3 STOREY INSTALLATION AND USER GUIDE...
-
Page 2: Pre-Installation Checklist
PRE-INSTALLATION CHECKLIST FIXING KIT Check that the loft has adequate cross flow ventilation. Check that all party walls are intact, Description Item seek advice if the wall is missing or broken. 8 X FOAM PADS Check that any flue which passes through the loft is not damaged, seek advice if the flue is in a poor state of repair. -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS IMPORTANT SAFETY AND RECOMMENDATIONS • Be sure to have read and understood All wiring must comply with Building these instructions before beginning the Regulations and the current I.E.E. Wiring installation process. Regulations (BS7671) or the equivalent standards for your country. The final installation should be examined and Smoke Detectors tested by a qualified electrician. -
Page 4: Installation Diagrams
3 Amp fuse 230V A.C. For fixing instructions, please refer to the fixing instructions. See Fig. 1 on page 4 UNIT DIMENSIONS Dimensions of the PIV L3 - 470 x 405 x 372mm 372mm 470mm 3 PIV L (3 STOREY) - Page 5 INSTALLATION INSTRUCTIONS FIRST STAGE Determine the position of the fire diffuser. It must be located a minimum of one metre from a smoke alarm but may be fitted closer than one metre from a wall or other obstructions if required. Position a dustsheet beneath the site you have chosen for cutting the hole for the diffuser.
- Page 6 INSTALLATION INSTRUCTIONS SIXTH STAGE - Method of Operation On Unit Control: Adjust the settings on the top of the unit by pressing the house setting button. By pressing the button, the correct ventilation rate for the size of the house can be selected i.e.
- Page 7 LED Colours Constant Red Boost Auto On commissioning the unit will default to the trickle flow Flashing Red rate with comfort heater enable ON Trickle Medium High Constant Green To change speed setting Press button once, Next press moves Boost Auto Boost Auto...
- Page 8 INSTALLATION INSTRUCTIONS Wiring into Smoke Alarm The 3 storey PIV unit MUST be wired into a smoke alarm to switch off on detection of smoke. The unit can be wired into an existing smoke alarm. Check compatibility with smoke alarm manufacturer.
- Page 9 USER GUIDE FOR RESIDENT 8 ...
- Page 10 USER GUIDE About your PIV L3 DO YOU KNOW WHAT’S GOING ON IN YOUR OWN HOME? MOISTURE CHEMICAL EMISSIONS The typical household creates From everyday household around 100 pints per week - from furnishings, building products etc. showers, baths, cooking etc.

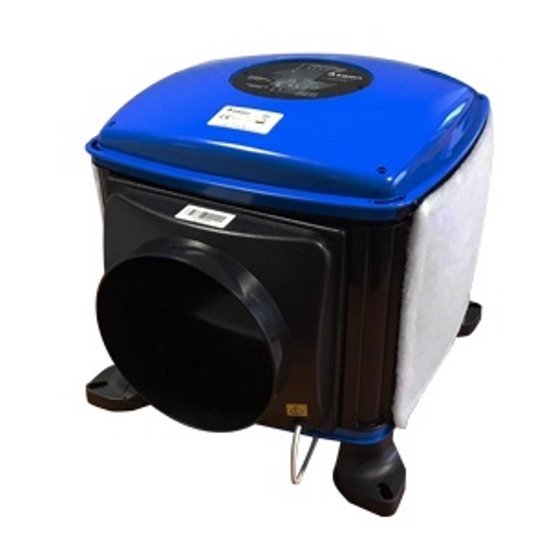

- Page 11 How does my PIV L3 work? The unit works by supplying fresh, filtered air throughout the home to transform a stagnant and stale atmosphere into a fresh, healthy and condensation-free environment. The unit delivers air into a home via a single input, usually located in a central landing.
- Page 12 Reduces house dust mite populations by lowering humidity levels - a main trigger for asthma and allergies. How do I control my PIV L3? The unit will operate continuously, 24 hours a day. It is important that the unit is not turned off.
-
Page 13: Maintenance
The filter is mounted around the unit with velcro, simply pull off and replace. How much does my PIV L3 cost to run? The unit is very energy efficient. On a constant medium setting with the comfort heater enabled, the heater will be ON around 10% of the time. - Page 14 WARRANTY CONDITIONS AND EXCLUSIONS The PIV L3 is covered by a 5 year warranty. Do not turn your unit off. It is important that the unit runs continuously. Your warranty covers any defect or break down that arises due to faulty materials or construction.
- Page 16 CO4 9YQ the user. T / (0)1206 713800 F / (0)1206 543126 AFTER INSTALLING THIS FAN PLEASE PASS ONTO END USER E / enquiries@titon.co.uk DO NOT THROW AWAY W / www.titon.co.uk/ V1-22.02.18 Due to our policy of continuous innovation and improvement, the...
