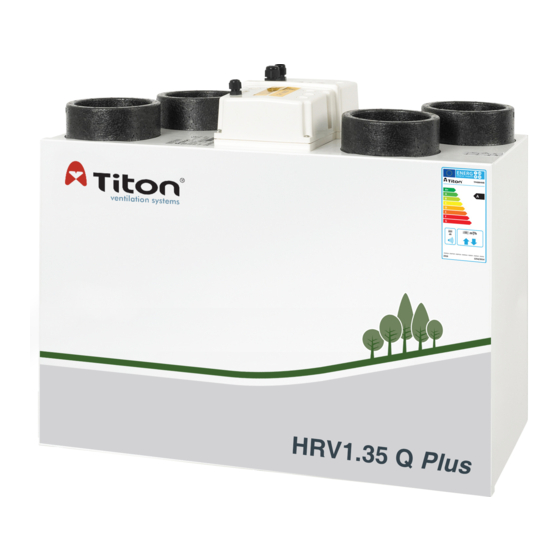

Titon HRV1.35 Q Plus Installer's Manual
Mechanical ventilation systems
Hide thumbs
Also See for HRV1.35 Q Plus:
- Manual (60 pages) ,
- Product manual (36 pages) ,
- Instruction manual (33 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Titon HRV1.35 Q Plus
Summary of Contents for Titon HRV1.35 Q Plus
- Page 1 Mechanical Ventilation Systems Installers Guide...
-
Page 2: Table Of Contents
FAQ’s: Ventilation System Constantly Boosting ....................12 FAQ’s: Water Leaks From Ventilation Fan Unit....................13 FAQ’s: The Ventilation System is Ineffective..................... 13 FAQ’s: The Ventilation System Slows Down Intermittently ................14 Sales and Technical Support +44 (0) 1206 814879 www.titon.co.uk... -
Page 3: Introduction
The great majority of complaints that Titon Engineers are called out to site to resolve are the result of installation or commissioning mistakes or the product being damaged by mishandling which are counter chargeable. -
Page 4: The Top Ten Installation Mistakes
We recommend it should only be used in short straight lengths pulled taut to a maximum length of 300mm. Excessive use of flexible ducting damaged, crushed, twisted and not pulled taut causing a blockage or excessive resistance to airflow Sales and Technical Support +44 (0) 1206 814879 www.titon.co.uk... -
Page 5: Not Adequately Sealing Or Supporting Ducts (Poor Performance, Excessive Noise)
Silicone sealed and bracketed Titon Self Seal Connector 4. Using the wrong type of terminals (poor performance, excessive noise) There are many products sold as ventilation terminals that are totally unsuitable for systems ventilation as they will strangle airflow or allow water ingress. -
Page 6: Not Insulating Ducting (Excess Moisture, Water Leaks)
(mains) voltage or can be affected by induced power when running cables together with higher voltages. Always ensure the product handbook instructions have been followed before making any connections. Blown PCB controller Sales and Technical Support +44 (0) 1206 814879 www.titon.co.uk... -
Page 7: Not Installing User Controls Or Adjusting Humidity Or Timer Settings (Excessive Noise - Unit Not Boosting Or Boosting Automatically)
Some ® units also include automatic functions that may need adjustment such as timer or humidity settings. Always ensure the product handbook instructions have been followed. ® Titon SUMMERboost switch ® Titon auralite status indicator 8. -
Page 8: Not Checking The Mvhr Unit Filters (Poor Performance)
Titon G3 HRV filter Titon G4 HRV filter 10. Boxing in the ventilation unit or locating out of normal reach Ventilation units must remain safely accessible to allow commissioning adjustments, maintenance, repair and end of life replacement. -
Page 9: Troubleshooting Checklists
Ventilation Unit front cover. Some Ventilation Units are fitted with integral humidity sensors to boost the system automatically, check humidity settings as adjustment may be required. Sales and Technical Support +44 (0) 1206 814879 www.titon.co.uk... - Page 10 Check all ducts, joints and accessories are leak free. All joints must be fully sealed using a proprietary product such as the Titon Self Seal Coupler or by using a flexible joint sealant. Duct tape alone is not sufficient and will not provide an effective long term seal.
-
Page 11: Faq's: Insufficient Airflow
Check all ducts, joints and accessories are leak free. All joints must be fully sealed using a proprietary product such as the Titon Self Seal Coupler or by using a flexible joint sealant. Duct tape alone is not sufficient and will not provide an effective long term seal. -
Page 12: Faq's: Ventilation System Constantly Boosting
(CME – the link is on one pin and not making the circuit and not still connected to both pins) and check no other cables normally attached to the PCD have been disconnected accidentally. Sales and Technical Support +44 (0) 1206 814879 www.titon.co.uk... -
Page 13: Faq's: Water Leaks From Ventilation Fan Unit
(if fitted) are clean and not blocked by debris. Make sure that there is no debris (such as plaster or masonry dust) within the unit’s internal airways leading to the fans. Sales and Technical Support +44 (0) 1206 814879 www.titon.co.uk... -
Page 14: Faq's: The Ventilation System Slows Down Intermittently
PCB connections and activated or that PCB terminals have been used in error to connect to a circuit intended for an alternative use. Sales and Technical Support +44 (0) 1206 814879 www.titon.co.uk... - Page 16 894 The Crescent, Colchester Business Park, Colchester, CO4 9YQ Tel: +44 (0) 1206 713800 Email: ventsales@titon.co.uk Web: www.titon.co.uk www.titondirect.co.uk BM98 Iss 02...
