Sony XM-GTX6041 Specifications

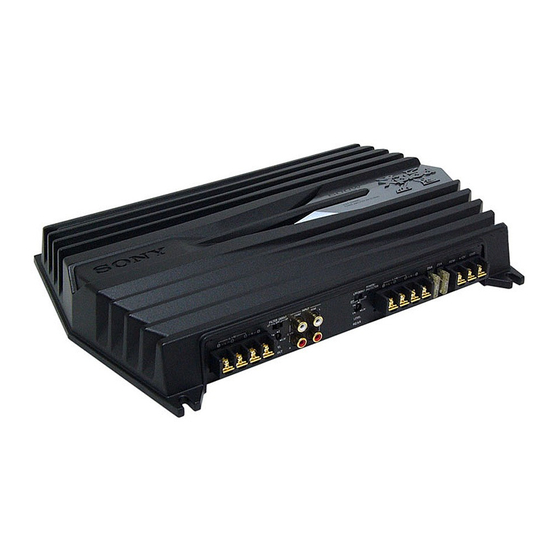

XM-GTX6041
The XM-GTX6041 amplifier afford incredible installation flexibility and
packs quite a punch. GTX amplifiers offer tremendous value including
convenience features such as: modern cosmetics, variable cross-overs,
multiple channel configurations and singe-side electrical connections to
suit almost any application.

Specifications

Amplifier Section
Max power output
Power Ad Hoc
Speaker Impedance
Audio
Band
Circuit System
Frequency Response
Harmonic Distortion
Impedance
Input Level
Noise Level
Power Supply
Inputs and Outputs
Audio In
Audio Out
Input(s)
Line Level Input(s)
Output(s)
RCA Audio Input(s)
Power
Current Drain
Input Voltage
Internal Power Supply
Output Power
Power Requirements
Rated Output
Speaker
Impedance
Speaker Terminal Type
Weights and Measurements
Dimensions (Approx.)
Dimensions (Approx) Depth
600W max power
60W per channel at 4 Ohms from 20Hz-20kHz with 1% THD
2-8 Ohm stereo
4-8 Ohms mono
Low Pass Filter: 80 HZ, -18dB/oct
High Pass Filter: 80 HZ, -12dB/oct
OTL Output Transformerless Circuit Pulse Power Supply
5-50kHz (+0/-3 dB)
0.05% or less (at 1 kHz, 4 ohm)
2-8 Ohm stereo
4-8 Ohms mono
0.3 - 6.0V (RCA input)
93 dBA
OTL Output Transformerless Circuit Pulse Power Supply
RCA Pin Jacks
Speaker Terminals
RCA Pin Jacks
RCA pin jacks
Speaker Terminals
Pin Jacks: 0.3 - 6V
At rated output: 31 Amp (at 4 Ohms)
10.5-16V Power Supply Voltage
OTL Output Transformerless Circuit
Pulse Power Supply
Maximum Output: 110W x 4 (at 4 Ohms), 150W x 4 (at 2 Ohms)
12V DC Car Battery (Negative Ground)
60W x 4 (20Hz-20kHz, 1% THD+N, at 4 Ohms, 14.4V)
70W x 4 (20Hz-20kHz, 1% THD+N, at 2 Ohms, 14.4V)
2-8 Ohms in Stereo Mode
4-8 Ohms mono
Output terminals
14 7/8 x 2 1/4 x 10"
(376 x 55 x 252 mm)
10"
4/3 Channel GTX Series Amplifier
