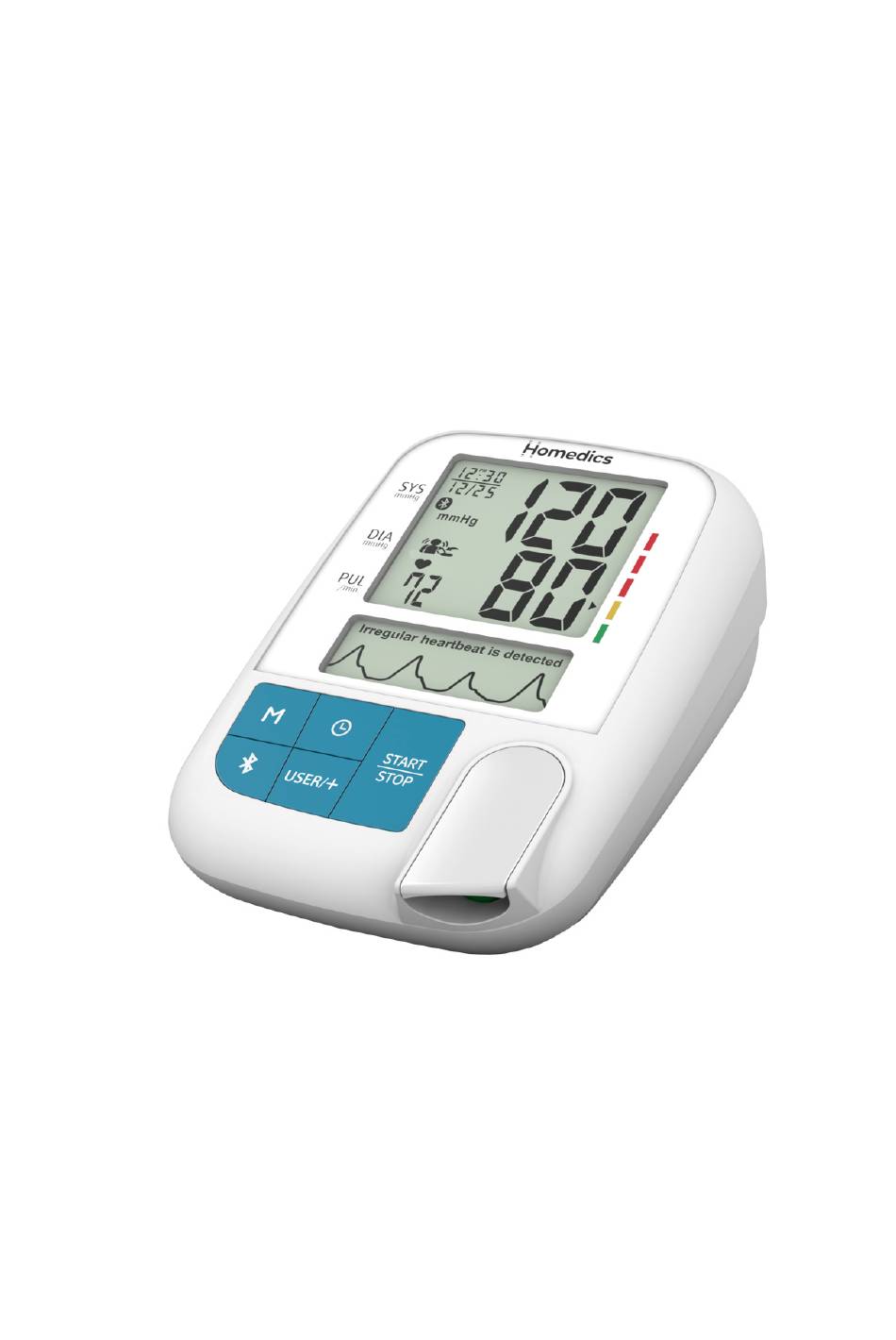

Automatic
Upper Arm Blood Pressure Monitor
Model No. HL858DM
1
VER: A001 202203

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HL858DM and is the answer not in the manual?

Questions and answers

Related Manuals for HoMedics HL858DM

Summary of Contents for HoMedics HL858DM

  • Page 1 Automatic Upper Arm Blood Pressure Monitor Model No. HL858DM VER: A001 202203...

  • Page 2: Table Of Contents

    Table of Contents Medical Disclaimer……………………………………………………………………………03 Intended Use………………………………………………………………………………..…03 About Blood Pressure………………………………………………………………………04 Measurement Method……………………………………………………………………06 Accuracy……………….…………………………………………………………………07 Pr e caut io n s… … … … … … … … … … … … … … … … … … … … … … … … … … … … .0 8 Device Overview……………………………………………………………………………….11 Symbol Definitions………………………………………………………………………….13 Features……………………………………………………………………………………………15...

  • Page 3: Medical Disclaimer

    9 inches to 17 inches (approx.23 cm to 43 cm) for home use. HL858DM features BP Category Indicator that will show the information with the readings on the screen for the user tracking their blood pressure level.

  • Page 4: About Blood Pressure

    About Blood Pressure A. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating.
  • Page 5 About Blood Pressure A. AHA blood pressure classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the American Heart Association (AHA 2017), as shown in the below chart. SYSTOLIC mm Hg DIASTOLIC mmHg BLOOD PRESSURE CATEGORY (upper number)

  • Page 6: Measurement Method

    Measurement Method HL858DM Automatic Upper Arm Blood Pressure Monitor measures blood pressure and heart rate by oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around your upper arm, just turn on the monitor and inflation automatically starts.

  • Page 7: Accuracy

    Accuracy HL858DM Automatic Upper Arm Blood Pressure Monitor has been clinically tested against scientific device called mercury sphygmomanometer, considered the gold standard in blood pressure measurement. All HL858DM Automatic Upper Arm Blood Pressure Monitors have performed equivalent to measurements taken with this scientific...

  • Page 8: Pr E Caut Io N

    Precautions Do not use this manual and product as a substitute for advice, diagnosing or treating a health problem or prescribing any medication by your doctor. If you have a medical problem, promptly consult your healthcare provider. Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time.
  • Page 9 Precautions  For those who have had a mastectomy or lymph node clearance, it is recommended to take a measurement on the unaffected side.  When used among medical electronic equipment on the same limb, pressurization of the cuff may cause temporarily malfunction to other devices.
  • Page 10 Precautions ！ *Attention Do not use the device on infants, children, or those who cannot express their own intention. To avoid accidental strangulation, keep this product away from children and do not drape tube around neck. The medical device should not used adjacent to or stacked with other equipment. In case adjacent or stacked use is necessary.

  • Page 11: Device Overview

    Device Overview Part names and product components  DC JACK DISPLAY 5V A AC/DC Adapter Arm Cuff hole Risk Category Indicator TIME BUTTON MEMORY BUTTON Bluetooth BUTTON LCD DISPLAY (Advanced IHB) USER/SET BUTTON START / STOP BUTTON (Advanced IHB) DETECTION AREA AA “LR6”...
  • Page 12 Device Overview Unit display  Hour : Minute (Also represents YEAR in Setting Mode) Systolic Pressure Month / Date Memory Average Risk Category Indicator Bluetooth Symbol Blood Pressure Unit Low Battery Symbol 1.Excessibe Body Motion Detector 2.Cuff Fitness Detection Pulse Symbol Diastolic Pressure Heart Rate...

  • Page 13: Symbol Definitions

    Symbol Definitions SYMBOLS Definitions This symbol appears when the battery power is excessively low or the polarity reverses.  We suggest you replace all batteries with new ones, and Low Battery Symbol make sure the +/- polarities are properly positioned. Once pulse is detected, the symbol flashes with each pulse beat.
  • Page 14 LCD displays this symbol when Bluetooth is active. Bluetooth Symbol VER: A001 202203...

  • Page 15: Features

    Features Risk Category Indicator (AHA 2017)  This device is equipped with Risk Category Indicator which classifies your blood pressure measurements into five stages (Normal, Elevated, Hypertension stage 1, Hypertension stage 2 and Hypertensive crisis) based on the blood pressure standards established by the American Heart Association (AHA).
  • Page 16 Features For adults 18 and older who are not on medicine for high blood pressure, are not having a short-term serious illness, and do not have other conditions, such as diabetes and kidney disease. To determine category of risk when systolic and diastolic readings fall into two areas, use the higher of the two numbers for classification.
  • Page 17 ！ *Note  HL858DM is subject to and complies with electromagnetic compatibility (EMC) standard of IEC 60601-1-2, EN 301 489-1, EN 301 489-17, EN 300 328 and U.S. federal guidelines, Part 15 of the FCC (Federal Communications Commission) rules for devices with RF capability. These guidelines help ensure that your device will not affect the operation of other nearby devices.
  • Page 18 Features Application Software for Bluetooth  To fully utilize this feature, users need to ensure Bluetooth support of Wireless (usually under settings menu) on their Android or iOS device contactless data exchange. Then, download install ® “DailyChek ” application software from Google Play on the Bluetooth-enabled device which is compatible with Android 4.2 or iOS 7.0 or above.
  • Page 19 Features  Advanced Irregular Heartbeat Detector This device equipped an Advanced IHB detection feature. The symbol Advanced IHB appears on screen indicates the specific heartbeat irregularity was detected during measurement. The Advanced IHB is designed to enhance the detectability on irregular heartbeats that arise from the internal causes of human body and tend to affect the blood pressure reading during the measurement.

  • Page 20: Installing Batteries

    Installing Batteries When LOW BATTERY SYMBOL appears on the display, or no reaction toward operation, please change batteries. Replace all worn-out batteries with new ones and do not mix new and used batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (cadmium) batteries either.

  • Page 21: Using The Ac/Dc Adapter

    Using the AC/DC Adapter This monitor is designed for operation with batteries or an AC/DC adapter. Please use only a compatible AC/DC adapter with required voltage and current as indicated in this manual. ！ *Note No batteries are needed when operating with an AC/DC adapter. ‧...

  • Page 22: Applying The Cuff

    Applying the Cuff  Wrap the cuff on a bare arm or over thin clothing. Thick clothing or a rolled up sleeve will cause inaccurate blood pressure measurements.  Use only the approved arm cuff for this device. Use of other arm cuffs may result in incorrect measurement result.

  • Page 23: Measurement Procedure

    Measurement Procedure  Switch on the Monitor A. Put in 4 AA “LR6” (1.5V) alkaline batteries. B. Press START/STOP button to switch on the monitor. The monitor will automatically turn to standby mode.  Setting Year, Date and Time Press button ("YEAR"...
  • Page 24 Measurement Procedure B. With the cuff wrapped around your upper arm, and place the finger of the opposite hand (index finger recommended) gently on the Advanced IHB detection area, then make sure the finger place at the correct position, press button to start measurement.
  • Page 25 Measurement Procedure measurement process is completed. The device will detect your pulse and determine the blood pressure. ！ *Note  If the cuff does not stop inflating, remove the cuff at once.  To stop measurement, press button. The cuff will deflate immediately after the button is pressed.

  • Page 26: Memory Function

    Memory Function  Storing data After each measurement, the systolic and diastolic pressure, heart rate, pulse, Risk Category Indicator Bar, Advanced IHB Detection feature-related symbol with date and time will be automatically stored. The monitor can store up to 240 memories for 2 users, and automatically replace the oldest data with new one.

  • Page 27: Bluetooth Transmission

    Measurement Completed: After measurement completed, the device activates Bluetooth function automatically and the Bluetooth symbol will begin flashing on the screen. 2. HL858DM can pair up with Bluetooth-enabled device. To transmit measuring results to other Bluetooth-enabled. Press button for one time: Under Standby Mode, 1.
  • Page 28 Bluetooth Transmission Date/Time Synchronization 1. The BPM’s Date/Time Setting synchronized Bluetooth -enabled device (e.g. smart phone) which ® downloaded and installed DailyChek application software. 2. When Bluetooth connection is established, the Bluetooth -enabled device can send commend with the date/time information to BPM and the BPM’s date/time will be updated.

  • Page 29: Storage And Maintenance

    Storage and Maintenance  General Use  Do not in any way twist the cuff.  Do not press button if the cuff is not wrapped around your upper arm.  Do not drop the product and avoid any strong impacts. ...
  • Page 30 Storage and Maintenance Storage  If the device is not to be used for a long time, please remove the batteries from the device (leaking of battery acid can cause the device to malfunction).  Always store the unit in the storage case after use. It is intended to be transported or stored in a carrying case between uses.

  • Page 31: Troubleshooting

    Measuring Error Symbol Wrap the cuff properly Can’t determine blood and keep steady. Measure pressure measurement data. Measuring Error Symbol again. If HL858DM cannot be Please press button for connected to paired one time to start Bluetooth Bluetooth-enabled device over function.

  • Page 32: Limited Warranty

    Limited Warranty  Warranty For Two Years from the manufacturing date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration product; improper installation; unauthorized repairs modifications; improper electrical/power supply;...

  • Page 33: Specifications

    Specifications Model Number HL858DM Measurement Method Oscillometric (inflation) Rated Range of Cuff 0 ~ 300 mmHg Pressure Rated Range of 40 ~ 280 mmHg Determination Measurement Range of 40~199 beats/minute Heart Rate Pressure: ± 3 mmHg Accuracy Pulse: ± 5 % Max.
  • Page 34 Note Explanation of symbols : Symbol Explanation Health & Life Information Refer to instruction manual/booklet TYPE BF Applied Part Warning: Portable RF communications equipment (including peripherals such as antenna cables and external To avoid inaccurate results caused antennas) should be used no closer than 30cm (12 inches) to any part of the device, Otherwise, by electromagnetic interference degradation of the performance of this equipment...

  • Page 35: Note

    *Note！ “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment” HL858DM essential performance per IEC 80601-2-30 additional essential performance requirements: 201.12.1.102 Limits of the error of the manometer from ...

  • Page 36: Appendix

    Appendix  Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Emissions test Compliance Electromagnetic environment – guidance RF emissions RF energy is used only to maintain device’s operation.
  • Page 37 Appendix  Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Compliance Electromagnetic environment – Immunity test IEC 60601 test level guidance level Portable and mobile RF communications 3V rms...
  • Page 38 Appendix Test specifications for enclosure port immunity to RF wireless communications equipment. IMMUNITY Test frequency Modulation TEST LEVEL (MHz) (V/m) Pulse modulation 18 Hz FM ± 5 kHz deviation 1kHz sine Pulse modulation 217 Hz Pulse modulation 18 Hz 1720 1845 Pulse modulation 217 Hz 1970...

  • Page 39: Blood Pressure Diary

    Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □...
