- Page 1 Instruction Manual Automatic Upper Arm Blood Pressure Monitor Model No. HL868AX P/N: 323103781 2023.4.19...
-
Page 2: Table Of Contents
Table of Contents Medical Disclaimer ..............3 Intended Use ................3 About Blood Pressure ..............4 Measurement Method ............... 6 Accuracy ................. 7 Precautions ................8 Device Overview ..............10 Symbol Definitions ..............12 Features ................. 14 Installing Batteries ..............18 Using the AC/DC Adapter ............ -
Page 3: Medical Disclaimer
18 years and older with arm circumference ranging from 9 inches to 17 inches (approx.23 cm to 43 cm) and for home use. HL868AX detects the appearance of irregular heartbeats during measurement; an indicated symbol will appear with measuring reading. -
Page 4: About Blood Pressure
About Blood Pressure 1. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating. - Page 5 About Blood Pressure A. AHA blood pressure classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the American Heart Association (AHA 2017), as shown in the chart. However, this chart is not exact for classification of blood pressure and it's intended to be used as a guide in understanding non-invasive blood pressure measurements.
-
Page 6: Measurement Method
Measurement Method HL868AX Automatic Upper Arm Blood Pressure Monitor measures blood pressure and heart rate by oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around your upper arm, just turn on the monitor and inflation automatically starts. -
Page 7: Accuracy
Accuracy HL868AX Automatic Upper Arm Blood Pressure Monitor has been clinically tested against scientific device called mercury sphygmomanometer, considered the gold standard in blood pressure measurement. All HL868AX Automatic Upper Arm Blood Pressure Monitors have performed equivalent to measurements taken with this scientific device and are within the accuracy limits prescribed by the American National Standard for Electronic or Automated Sphygmomanometers. -
Page 8: Precautions
Precautions Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time. * The device is designed for home use and not suitable for clinical use. The patient is an intended operator, who can operate the device by himself or herself, not necessarily by a physician or operator. - Page 9 Precautions ❑ For those who have had a mastectomy or lymph node clearance, it is recommended to take a measurement on the unaffected side. ❑ When used among medical electronic equipments on the same limb, pressurization of the cuff may cause temporarily malfunction to other devices.
-

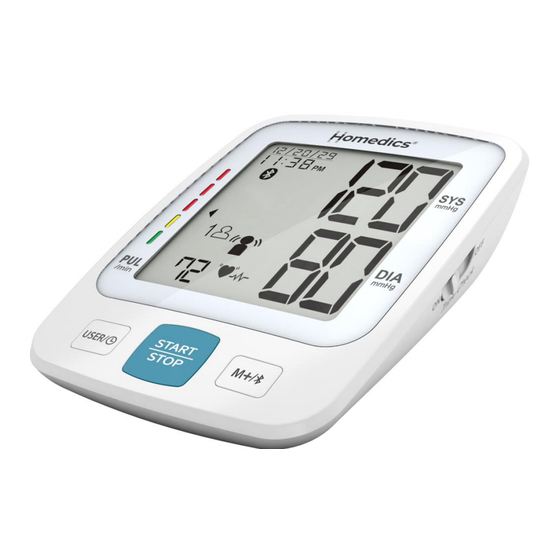

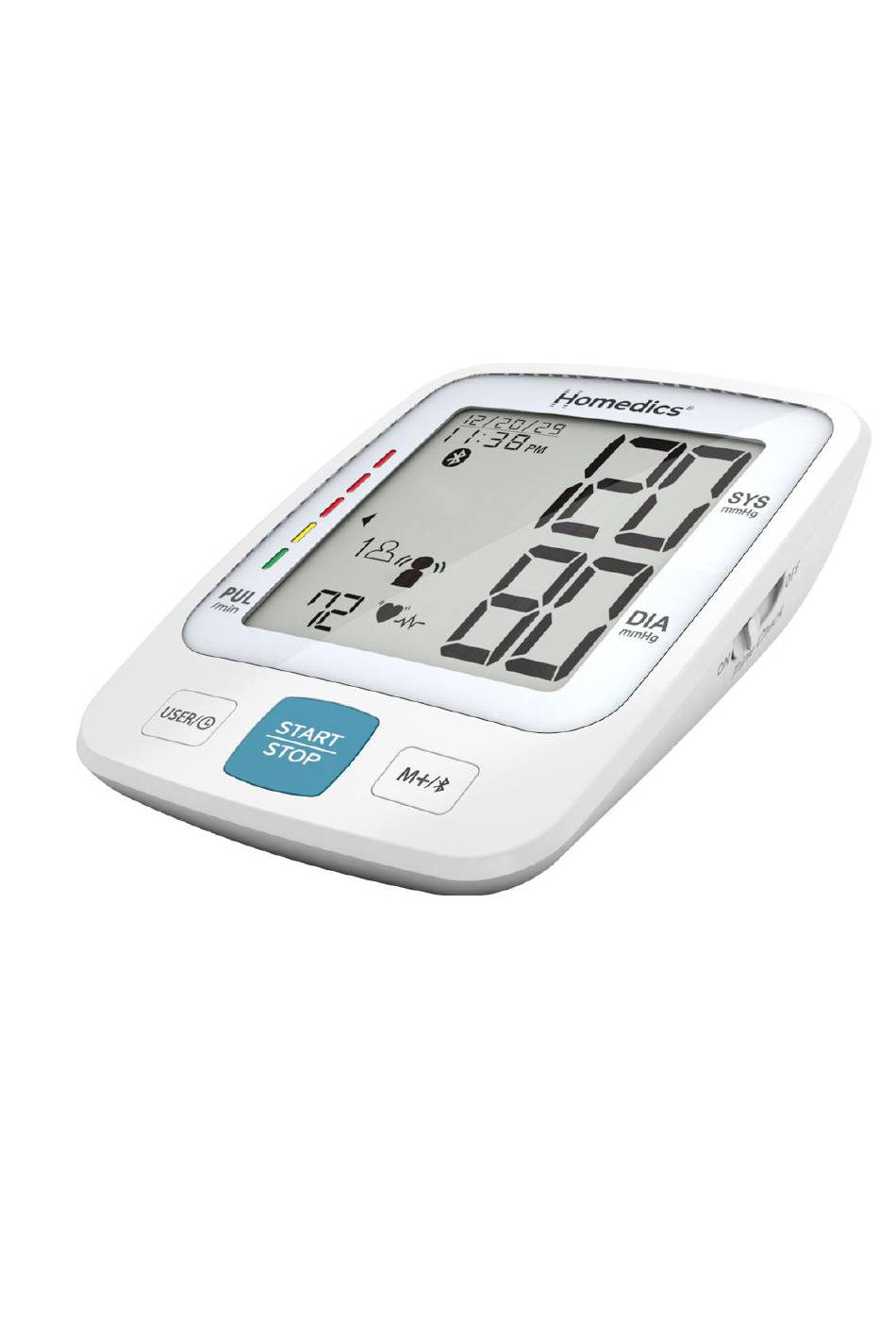

Page 10: Device Overview
Device Overview Part names and product components ◆ 5V 1.2A AC/DC DC Jack Adapter (Optional) LCD Display Arm Cuff Hole Risk Category Indicator Advanced Average Function Switch User-Select/ Mode Button START / STOP Memory Button /Bluetooth Button AAA “LR03” (1.5V) Alkaline Battery X 4 Arm Cuff With Tube P/N: 323103781... - Page 11 Device Overview Unit display ◆ Month/Date/Year Systolic Pressure Hour:Minute with PM icon Low Battery Symbol Bluetooth Symbol Advanced Average Symbol Advanced Average Measurement Result Average of Last 3 Measurement AM/PM Averaging 1. Excessive Body Motion Detector User Symbol 2. Cuff Fitness Detector Risk Category Indicator Diastolic Pressure Heart Rate...
-
Page 12: Symbol Definitions
Symbol Definitions SYMBOLS Definitions This symbol appears when the battery power is extremely low or the polarity reverses. ➔ We suggest you replace all batteries with new ones, and Low Battery Symbol make sure the +/- polarities are properly positioned. Once pulse is detected, the symbol flashes with each pulse beat. - Page 13 Symbol Definitions This symbol appears if the cuff was wrapped incorrectly, which is Cuff Fitness Detector too tight or too loose. This is the function aid in detecting if the cuff is wrapped properly. Under Bluetooth Data Transmission / Link Mode, LCD displays this symbol.
-
Page 14: Features
Features ◆ Risk Category Indicator (AHA 2017) This device is equipped with Risk Category Indicator which classifies your blood pressure measurements into five stages (Normal, Elevated, Hypertension stage 1, Hypertension stage 2 and Hypertensive crisis) based on the blood pressure standards established by the American Heart Association (AHA). - Page 15 Features ◆ Advanced Average Function The advanced average function automatically takes and averages 3 readings in a row, with 1 minute rest intervals between each measurement. To deactivate this feature and take only one single reading, slide the switch on the back to the OFF position.
- Page 16 Under sleeping mode, user can press the button for 3 seconds to activate Bluetooth function, and Bluetooth symbol will be flashed on the screen. 2. If HL868AX is connected successfully to your smart device, Bluetooth symbol will appear on the screen. P/N: 323103781...
- Page 17 Bluetooth Transmission ◆ Date/Time Synchronization 1. The date/ time setting of HL868AX can be synchronized by Bluetooth-enabled device (e.g. smartphone) which downloaded and installed DailyChek ® application software. 2. When Bluetooth connection is established, the Bluetooth-enabled device can send commend with the date/ time information to BPM and the BPM’s date/ time will be updated.
-
Page 18: Installing Batteries
Installing Batteries When low battery symbol appears on the display or nothing appears on the display when the power is switched on, please change the batteries. Replace all the batteries with new ones and do not mix new and old batteries. -
Page 19: Using The Ac/Dc Adapter
Using the AC/DC Adapter This monitor is designed for operation with batteries or an AC/DC adapter. Please use only a compatible AC/DC adapter with required voltage and current as indicated in this manual. *Note ！ No batteries are needed when operating with an AC/DC adapter. ‧... -
Page 20: Applying The Cuff
Applying the Cuff ❑ Wrap the cuff on a bare arm or over thin clothing. Thick clothing or a rolled up sleeve will cause inaccurate blood pressure measurements. ❑ Press your brachial artery approximately 1 inch (2 ~ 3 cm) above the elbow on the inside of your left arm to determine where your strongest pulse is. -
Page 21: Measurement Procedure
Measurement Procedure ◆ Switch on the Monitor A. Put in 4 AAA 1.5V (LR03) alkaline batteries. B. All segments appear on the screen for 1.5 seconds. C. The monitor will automatically turn to sleeping mode (all LCD segments are cleared). ◆... - Page 22 Measurement Procedure Bluetooth function ON Bluetooth function OFF ◆ Taking a Measurement Check and select functions of advanced average mode if needed. 1. If functions of advanced average mode is on, the symbol will be shown on the display, press START/STOP button to start an advanced average measurement.
- Page 23 Measurement Procedure After the monitor has determine your blood pressure and heart rate, the cuff automatically deflates. Your systolic pressure, diastolic pressure, pulse rate and corresponding Risk Category Indicator, Irregular Heartbeat Detector and Excessive Body Motion Detector (if any) are displayed with date and time for 1 minute and save results to memory automatically.
- Page 24 Measurement Procedure All Segment Inflation 1 min countdown Inflation Average result of Inflation 1 min countdown 3 times measurement 7. After the monitor has determine your blood pressure and pulse rate, the cuff automatically deflates. Your systolic pressure, diastolic pressure, pulse rate and corresponding risk category indicator and irregular heartbeat detector, and excessive body motion detector (if any) are displayed with date and time for 1 minute and save results to memory...
-
Page 25: Memory Function
Memory Function ◆ Storing Data After each measurement, the systolic and diastolic pressure, heart rate, risk category indicator, irregular heartbeat detector, and excessive body motion detector (if any) with date and time will be automatically stored. The monitor features 2 user memory capabilities. Each user holds the last 120 measurements, and automatically replacing the oldest data with new one. - Page 26 Memory Function ◆ Recalling Data A. Select user first. B. Press button enter memory mode. If there is no data stored before, nothing (except month, date, and time) will be appeared on the display. If yes, the first reading will be the average of last 3 measurements. (The advanced average result and its individual Average of Last 3 measurements will not be included as the...
- Page 27 Memory Function <e.g. 59 result is an advanced average result :> Press button to read 3 individual results (58 , 57th and 56th) ➢ of advanced average (59th) advanced average result result result result (Average of 58 , and 56 Average of the last 3 measurements is the average of 60 , 55 ➢...
-
Page 28: Storage And Maintenance
Storage and Maintenance ◆ General Use ❑ Do not twist the cuff in any way. ❑ Do not press button if the cuff is not wrapped around your upper arm. ❑ Do not drop the product and avoid any strong impacts. ◆... - Page 29 Storage and Maintenance If it is used in a complex environment (such as a hospital) or after ❑ multiple people (non-family), please discard the old cuff and replace it with a new one. ◆ Storage ❑ If the device is not to be used for a long time, please remove the batteries from the device (leaking of battery acid can cause the device to malfunction).
-
Page 30: Troubleshooting
If HL868AX cannot be connected to Please press button paired Bluetooth-enabled device over for 3 seconds to start Bluetooth Measuring Error Symbol 45 seconds, LCD will display Error function. - Page 31 Troubleshooting Please reference “Applying the The cuff was wrapped incorrectly (for Cuff ”section to wrap the cuff example too loosely or too tightly). correctly. Cuff Fitness Detection Symbol Please re-pairing the BPM Paring has not been completed. and Bluetooth -enabled device with each other.
-
Page 32: Limited Warranty
Limited Warranty ◆ Warranty For Two Years from the manufacturing date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration product; improper installation; unauthorized repairs modifications; improper electrical/power supply;... -
Page 33: Specifications
Specifications Model Number HL868AX Measurement Oscillometric Method Rated Range of Cuff 0~300 mmHg Pressure Rated Range of 40~280 mmHg Determination Measurement Range 40~199 Beats/Minute of Heart Rate Pressure: ± 3 mmHg Accuracy Pulse: ± 5% Max. Inflation Automatic Inflation (Air Pump) -
Page 34: Note
- Continuous operation with short-time loading Manufacturer: HEALTH & LIFE CO., LTD. 9F, No. 186, Jian Yi Road, Zhonghe District 23553, New Taipei City, Taiwan www.healthandlife.com.tw Distributor: HoMedics USA, LLC 3000 N. Pontiac Trail, Commerce Township, MI 48390 Phone: 1-800-466-3342 P/N: 323103781... - Page 35 (2) this device must accept any interference received, including interference that may cause undesired operation. *Note ！ To assure continued FCC compliance: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. HL868AX essential performance per IEC 80601-2-30 additional essential performance requirements: 201.12.1.102 Limits error manometer from ◼...
-
Page 36: Appendix
Appendix Guidance and manufacturer’s declaration – electromagnetic emissions ◆ The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic environment – Emissions test Compliance guidance RF emissions RF energy is used only to maintain device’s operation. - Page 37 Appendix Guidance and manufacturer’s declaration – electromagnetic immunity ◆ The device is intended for use in the electromagnetic environments listed below, and should only be used used in such environments: IEC 60601 test level Compliance level – Electromagnetic environment Immunity test guidance Portable and mobile RF Conducted RF...
- Page 38 Appendix Test specifications for enclosure port immunity to RF wireless communications equipment. IMMUNITY Test frequency Modulation TEST LEVEL (MHz) (V/m) Pulse modulation 18 Hz FM ± 5 kHz deviation 1kHz sine Pulse modulation 217 Hz Pulse modulation 18 Hz 1720 1845 Pulse modulation 217 Hz 1970...
-
Page 39: Blood Pressure Diary
Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □...
