Set Up Wireless Infrastructure
3.
Connect Client 1 to power.
4.
Automatic configuration of the units starts:
• Client 1 starts up in Easy Config Mode 4 and is open for automatic configuration during 120 seconds.
• Access Point 2 will discover and configure Client 1 as a Client and configure itself as an Access Point.
• Client 1 will be assigned the first free IP address in the same Ethernet subnet as Access Point 2.
The default address to Client 1 is 192.168.0.100.
Troubleshooting if no connection is established during Easy Config Mode
• Ensure that Client 1 is disconnected from Ethernet.
• Disconnect Client 1 from power and repeat the steps to activate Easy Config.
Add Additional Bolt Serial Clients
Option when using Easy Config Mode 1: Continue with the configuration, see
Option when using Easy Config Mode 5 or 6: You can add up to 6 additional Bolt Serial Clients to the serial bridge.
To add additional Clients:

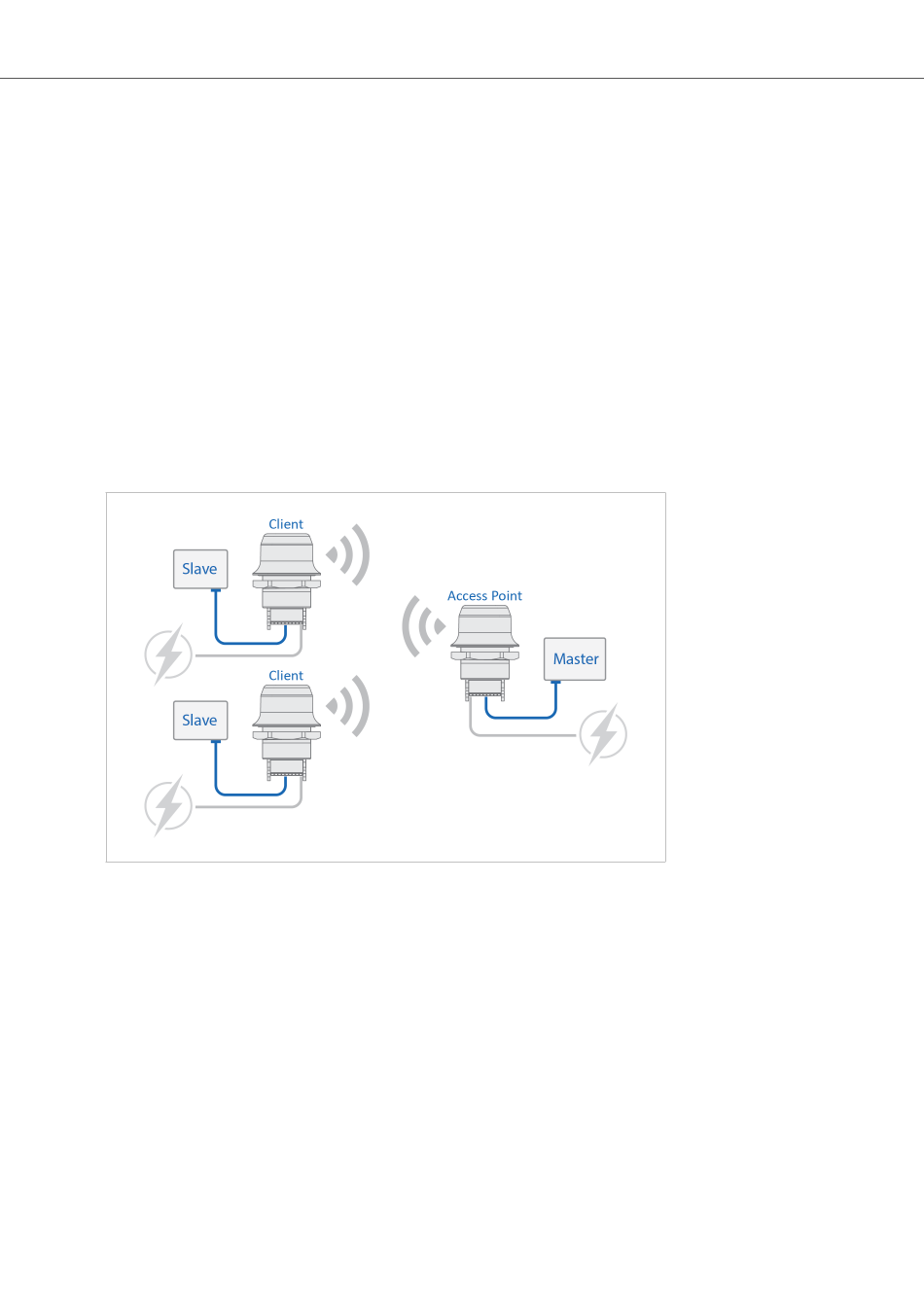

Figure 24. Serial bridge
1.
Connect the Client to a serial device.
2.
Automatic configuration of the Client starts.
The Client will be assigned the next free IP address in the current Ethernet subnet.
3.
To add more Clients, repeat step 1 and 2.
SCM-1202-143 2.0
®
Anybus
Wireless Bolt Serial
Serial Configuration (page
40).
