5.9.8. WLAN Advanced Settings

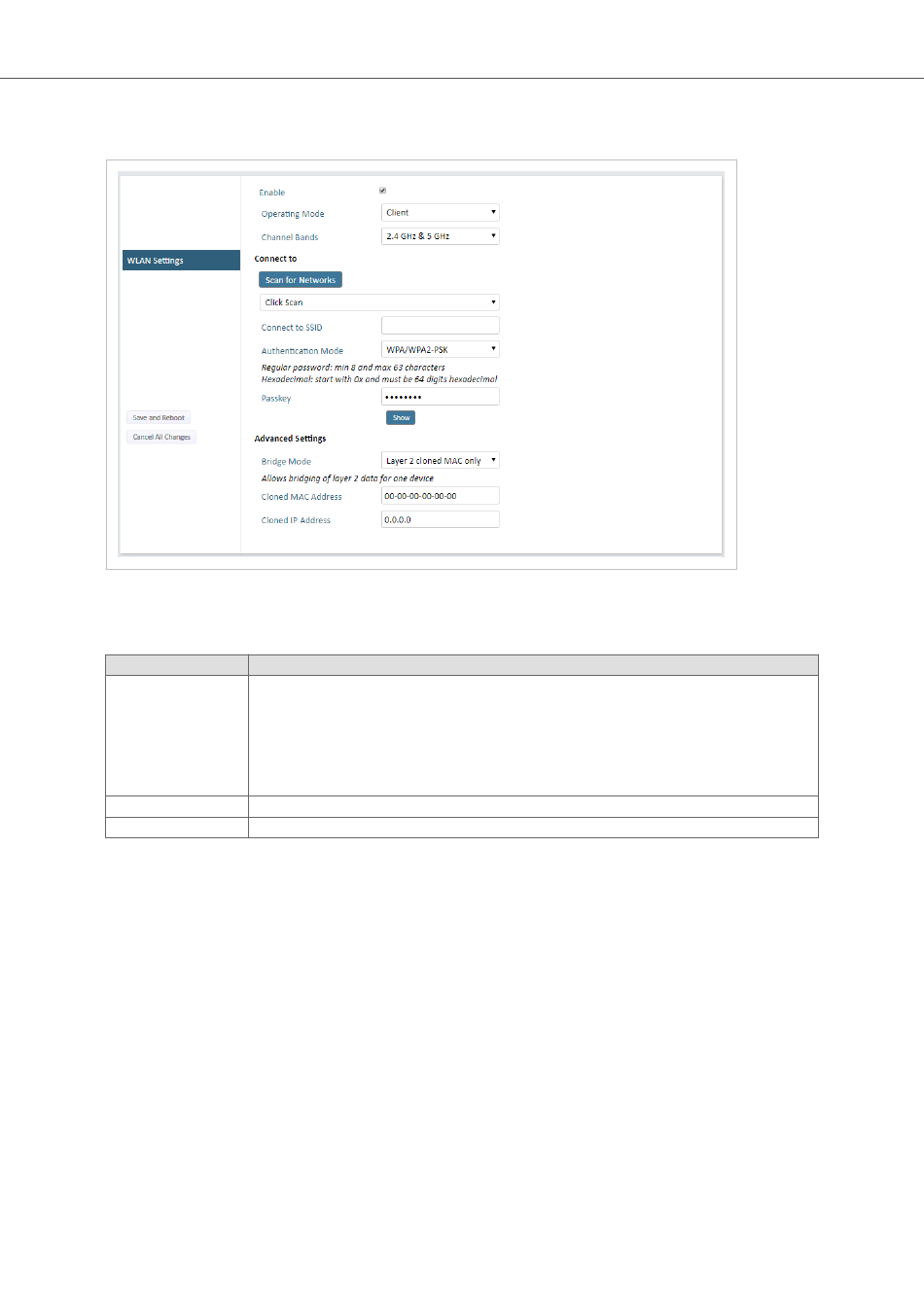

Figure 14. WLAN Settings page
Advanced Settings
Setting
Description
Bridge Mode
Layer 2 tunnel: All layer 2 data will be bridged over WLAN. Use when multiple devices on both sides of an Ethernet
network bridge must be able to communicate via WLAN (many-to-many). Only works between Anybus Wireless Bolt
or Wireless Bridge II devices.
Layer 2 cloned MAC only: Layer 2 data from only a single MAC address (specified below) will be bridged over WLAN
(many-to-one).
Layer 3 IP forward: Default setting. IP data from all devices will be bridged over WLAN. This mode must be used
when using the DHCP Relay function. See
Cloned MAC Address
The MAC address to use with Layer 2 cloned MAC only.
Cloned IP Address
The IP address to use with Layer 2 cloned MAC only.
Page 28 of 60
Configure Settings in the Built-In Web Interface
Layer 3 IP Forward Connectivity Considerations (page
23).
