Configure Settings in the Built-In Web Interface
Serial Settings example, TCP Mode Client enabled

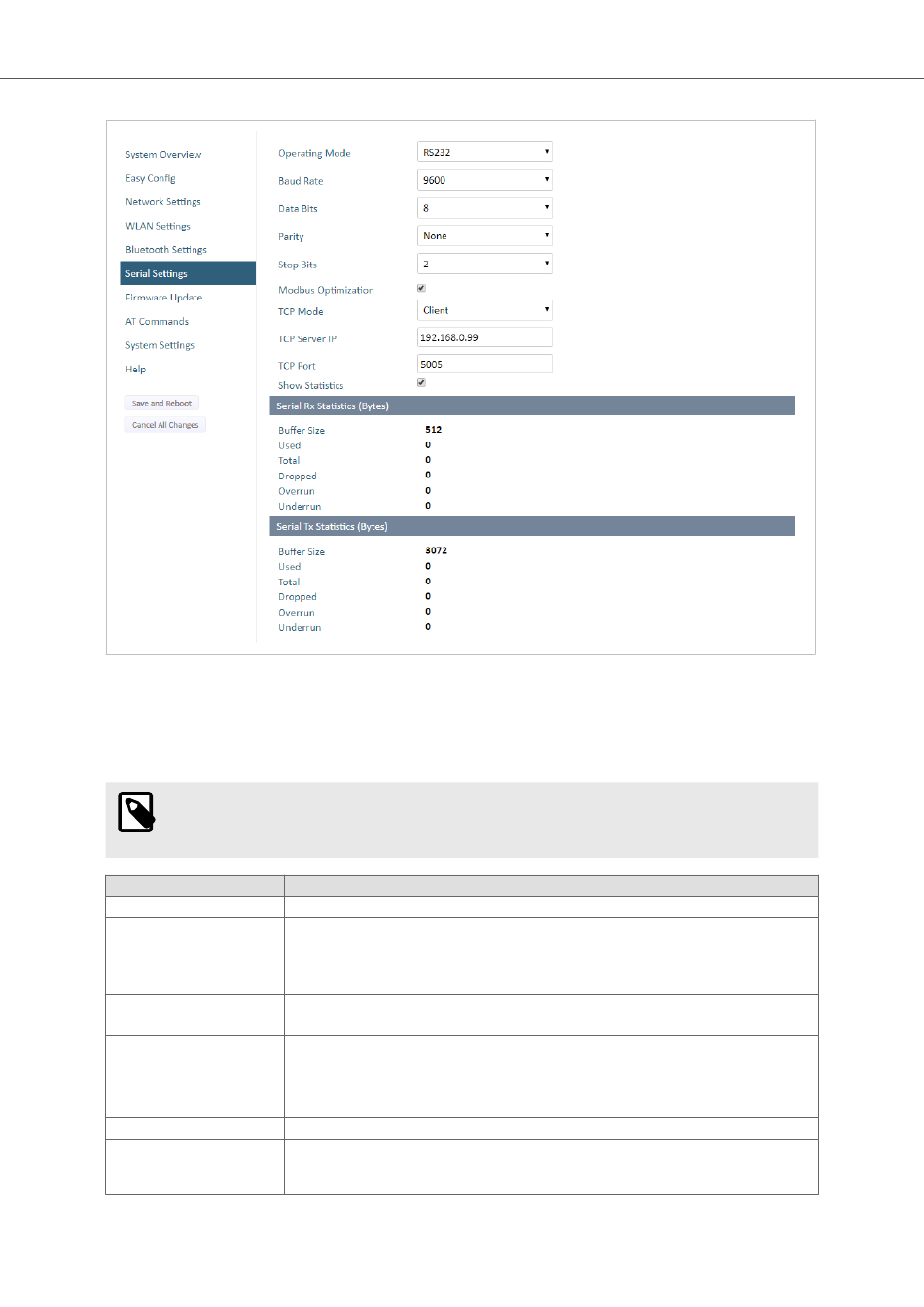

Figure 19. Serial Settings page, TCP Mode Client
Serial Settings
NOTE
To avoid timing problems when different baud rates are set on the Master and the Slaves, set the
lowest baud rate on the Master.
Setting
Operating Mode
Baud Rate
Data Bits
Parity
Stop Bits
Modbus Optimization
SCM-1202-143 2.0
Description
Select a physical serial communication interface, RS232, RS422 , RS485 or Off.
Specify the rate at which information is transferred in a communication channel. Select a baud rate.
At baud rates up to 115200 baud, the module is ready to receive data within one bit after last bit is sent.
At baud rates higher than 115200 baud, the module will be ready to receive data 7 micro seconds after the
last bit is sent.
Specify the number of data bits to transmit. Select 5, 6, 7 or 8 bits.
To transmit binary data, select 8 data bits.
Specify if parity should be used to detect code errors.
No parity: No parity checking, parity bit is not transmitted.
Odd parity: The parity bit is asserted or unasserted to obtain an odd number of mark bits.
Even: Even parity checking.
Specify the number of stop bits used to indicate the end of data transmission. Select stop bit 1 or 2.
When Modbus Optimization is selected, the communication is optimized to keep all Modbus packets together
in one frame.
This mode should only be enabled when communicating with MODBUS RTU devices.
® ™
