Installation guide PRO3
Read this guide first before installing

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quooker PRO3

Summary of Contents for Quooker PRO3

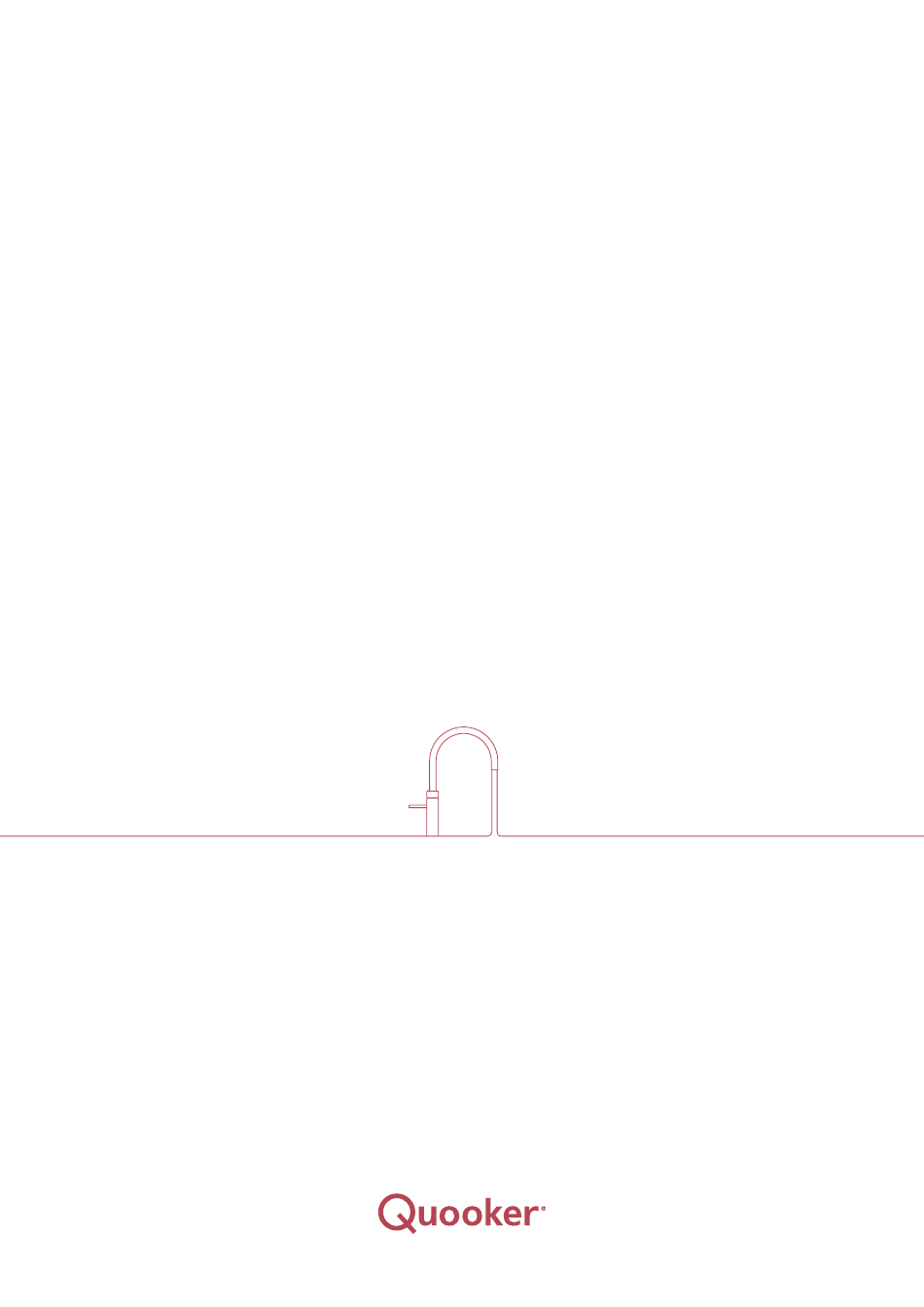

  • Page 1 Installation guide PRO3 Read this guide first before installing...
  • Page 2 Fusion and Flex tap. Inside the tank the water is heated electrically to approx. 108°C and is kept at this temperature. The Quooker PRO3 has a capacity of 3 litres. Before water is dispensed, it is purified by the HiTAC water filter.
  • Page 3 The fastest way to do this is as follows: turn off the Quooker, but leave the plug in the socket. Then open the boiling-water tap and turn it off once the water runs cold. You can find a more detailed explanation for disconnecting the tank in chapter E.

  • Page 4: Declaration Of Conformity

    Declaration of conformity Quooker Nederland B.V., Staalstraat 13, 2984 AJ Ridderkerk (The Netherlands) herewith declares, on our own responsibility, that the product Quooker PRO3 is in accordance with the conditions of the following directives: - 2014/35/EU Low Voltage Directive (LVD)

  • Page 5: Technical Specifications

    Technical specifications Tank PRO3 Voltage 230 V Wattage 1600 W Capacity 3 litres Heating-up time* 10 minutes Standby power consumption 10 W Tank height 46,7 cm Total tank height requirement 54,7 cm Tank diameter 15,3 cm Min. mains pressure 200 kPa (2 bar) Max.
  • Page 6 Contents of the pack 1. - Nordic single tap, small fibre washer, centring ring, metal washer, threaded ring and two screws - or Fusion tap, hoses, small fibre washer, brass fixing plate, fixing nut, white tap support (for thin work tops) and two inlet hose screens - or Flex tap, hoses, small fibre washer, metal washer, threaded ring with two screws, counterweight with boiling water hose, white tap support (for thin work tops), two inlet hose screens and quick-release tool.
  • Page 7 2. PRO3 tank 3. Inlet reducing valve with fibre washer 4. Isolation valve with filter and fibre washer 5. Inlet couplings and fibre washers...
  • Page 8 Overview of Nordic single tap installation It is recommended that you install the Quooker in the following order: A. Drilling hole B1. Fitting Nordic single tap C. Connecting water D. Connecting tank to tap E. Disconnecting tank Note: Bear in mind that the tank, inlet valve and socket must remain easily accessible for servicing.
  • Page 9 Overview of Fusion tap installation It is recommended that you install the Quooker in the following order: A. Drilling hole B2. Fitting Fusion tap C. Connecting water D. Connecting tank to tap E. Disconnecting tank Note: Bear in mind that the tank, inlet valve and socket must remain easily accessible for servicing.
  • Page 10 Overview of Flex tap installation It is recommended that you install the Quooker in the following order: A. Drilling hole B3. Fitting Flex tap C. Connecting water D. Connecting tank to tap E. Disconnecting tank Note: Bear in mind that the tank, inlet valve and socket must remain easily accessible for servicing.
  • Page 11 Drilling hole • Note: The tap hole for the Nordic single tap should be 32 mm in diameter. The Fusion and Flex tap hole should be 35 mm in diameter. • The Nordic single tap should ideally be positioned at the corner of the sink to enable use above the sink or the work top.
  • Page 12 Fitting Nordic single tap • Note: The total length of the hose between the single tap and tank is only 70 cm. The tank must therefore be fitted close to the tap. Extension hoses are available in different lengths but are not normally required. •...
  • Page 13 Screw the fixing nut onto the tap thread. Adjust the position of the tap to ensure that the Quooker logo is facing the user. When the handle is in the cold position, it will be parallel to the edge of the work top.
  • Page 14 3. Tighten the brass plate Place the metal washer and threaded ring around the hoses. Adjust the position of the tap to ensure that the Quooker logo is facing the user and fully tighten the metal washer. 4. Securing tap screws Tighten the threaded ring and secure it with the two screws provided.
  • Page 15 5. Attach the coupling Click the pull-out hose into the counterweight's quick-release fitting while ensuring that the hose pillar is fully inserted. 6. Fit the mixer water hose Click the mixer water hose into the counterweight's quick-release fitting while ensuring that the hose pillar is fully inserted.

  • Page 16: Connecting Water

    Connecting water • The Quooker operates under mains water pressure and must always be fitted to the water pipe with the supplied inlet valve. • The Nordic single tap, the Fusion tap or the Flex tap must be installed according to the locally applicable regulations.
  • Page 17 Connecting tank to tap • The Quooker tank is supplied with a UK 3 pin plug and requires a standard 13 amp earthed socket. • If the mains lead is damaged, it must be replaced by the manufacturer, their agent or a qualified technician.
  • Page 18 At first, the water is very hot. 3. Isolating Close the main shut-off valve or the isolation valve for cold water. Check that the Quooker is depressurized by opening the Nordic single tap or the boiling-water On/off handle of the Fusion or Flex tap again.
  • Page 20 Quooker UK Ltd. Beaumont Buildings Great Ducie Street Manchester M3 1PQ +44 (0)207 923 3355 enquiries@quooker.co.uk www.quooker.co.uk...
