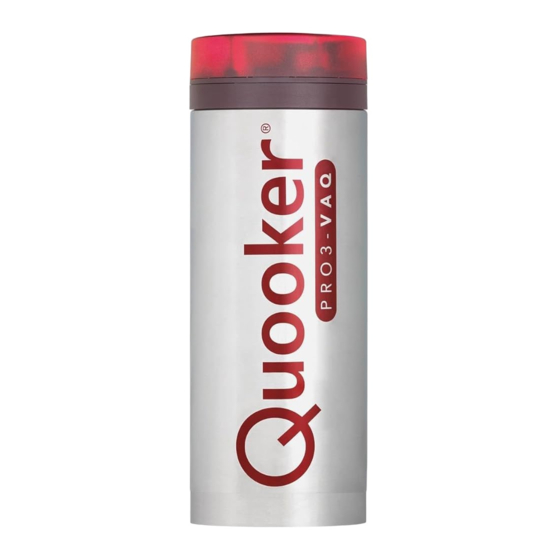

Quooker PRO3 Installation Manual

Taps and boiling water tank
Hide thumbs Also See for PRO3:

Advertisement

Quick Links

Download this manual
Installation Guide
Suitable for all Quooker taps and boiling water tanks.

Advertisement

loading

Related Manuals for Quooker PRO3

Summary of Contents for Quooker PRO3

  • Page 1 Installation Guide Suitable for all Quooker taps and boiling water tanks.

  • Page 3: Table Of Contents

    Welcome to the Quooker family. Please read this manual before installing. We assume that the user of this manual has basic technical knowledge. If you still have questions after reading this manual, please contact Quooker customer services. Our address and phone number are listed on the back of this manual.

  • Page 4: Practical Background Information

    CUBE, a quickest way to do this is by switching off Cold Water Filter, a Scale Control R and/or the Quooker tank. Leave the plug in the with accessories such as a soap dispenser, wall socket. Then operate the boiling-water a mounting bracket or a powerswitch.

  • Page 5: Technical Specifications

    According to European laws and regulations regarding the energy efficiency of domestic hot water appliances, the COMBI+ tank carries an A-label. PRO3 tanks only supply boiling water. The EU has not established an energy label guideline for boiling water tanks. However, these tanks are just as economical.

  • Page 6: Contents Of The Package

    Contents of the package Find your tap. Nordic single tap Fusion Flex (if Twintaps) Nordic mixer tap screws centring ring screws metal washer metal washer threaded ring brass screw ring quick-release tool †* black plastic fitting and rubber gasket mixer hose * fixing nut fixing nut counterweight...
  • Page 7 Front screws metal washer threaded ring aerator key* small fibre washer inlet hose screens white tap support * The aerator key must be used for the removal and installation of the aerator.
  • Page 8 Contents of the package Identify your tank. PRO3 COMBI+ pressure reducing valve reducing coupler reducing ring check valve (do not install)* mixing valve including check valve inlet couplings and fibre washers isolation valve fibre washers inlet reducing inlet reducing valve...

  • Page 9: The Entire System At A Glance

    Twintaps or Nordic single tap Twintaps or Nordic single tap with the PRO3 with the COMBI+ (p. 10) (p. 12) Fusion with the PRO3 Fusion with the COMBI+ (p. 14) (p. 16) Flex with the PRO3 Flex with the COMBI+ (p.
  • Page 10 At step 5, use spanners 12 and 14 to securely tighten of the tank. the boiling water hose to the tank. Wait 10 minutes for the system to warm up; the LED ring on the tap will then turn off. The Quooker system is now ready for use.
  • Page 11 Adjustable to 25 cm under the work surface Nordic mixer tap Nordic single tap *not applicable for stainless steel tap hole Ø 35 mm tap hole Ø 32 mm and black...
  • Page 12 (between on the tap will then turn off. K-40 ⁰C and W-60 ⁰C). The Quooker system is now ready for use. In steps 7 and 9, the connections are fitted with compression fittings so no gasket or washers are needed between them.
  • Page 13 Adjustable to 25 cm under the work surface Nordic mixer tap Nordic single tap *not applicable for stainless steel tap hole Ø 35 mm tap hole Ø 32 mm and black...
  • Page 14 At step 5, use spanners 12 and 14 to securely tighten of the tank. the boiling water hose to the tank. Wait 10 minutes for the system to warm up; the LED ring on the tap will then turn off. The Quooker system is now ready for use.
  • Page 15 Flex tap hole Ø 35 mm flexible...
  • Page 16 (between on the tap will then turn off. K-40 ⁰C and W-60 ⁰C). The Quooker system is now ready for use. In steps 7 and 9, the connections are fitted with compression fittings so no gasket or washers are needed between them.
  • Page 17 Flex tap hole Ø 35 mm flexible...
  • Page 18 At step 5, use spanners 12 and 14 to securely tighten of the tank. the boiling water hose to the tank. Wait 10 minutes for the system to warm up; the LED ring on the tap will then turn off. The Quooker system is now ready for use.
  • Page 19 Fusion tap hole Ø 35 mm...
  • Page 20 (between on the tap will then turn off. K-40 ⁰C and W-60 ⁰C). The Quooker system is now ready for use. In steps 7 and 9, the connections are fitted with compression fittings so no gasket or washers are needed between them.
  • Page 21 Fusion tap hole Ø 35 mm...
  • Page 22 If you connect a Insert the screws into the threaded ring and tighten CUBE to your Quooker system, you must remove this pin them loosely. before you can utilise the CUBE functions. Unscrew the Turn the tap so logo faces front.
  • Page 23 Front Remove the pin in the CUBE installation tap hole Ø 35 mm...
  • Page 24 If you connect a Insert the screws into the threaded ring and tighten CUBE to your Quooker system, you must remove this pin them loosely. before you can utilise the CUBE functions. Unscrew the Turn the tap so logo faces front.
  • Page 25 Front Remove the pin in the CUBE installation tap hole Ø 35 mm...

  • Page 26: Maintenance And Service

    Below is a description for each type of finish of how best When the water flow becomes reduced, you can remove to clean the Quooker tap. After cleaning, the tap can be the tap filter (the aerator) and place it in vinegar for about dried using a non-abrasive cloth or a micro-fibre cloth.

  • Page 27: Disconnecting Tank

    4. Uncoupling runs completely cold. Uncouple the hoses. In the case of a Quooker PRO3 this is one fewer hose than is indicated in the illustration. Pull the jack plug out of the tank lid. Pull the power plug out of the socket.
