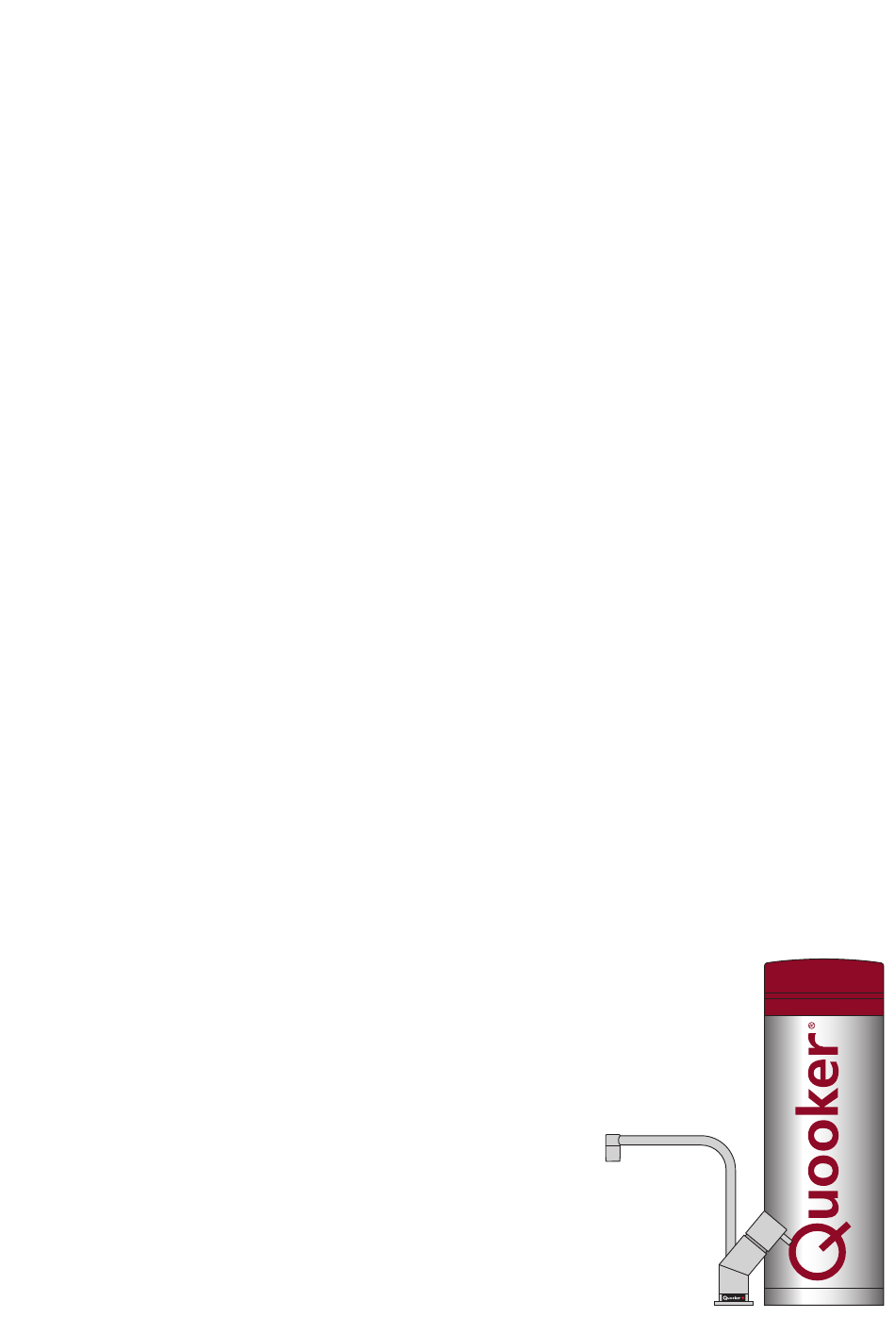

- Page 1 Installation guide PRO3 Before installing read this guide first...

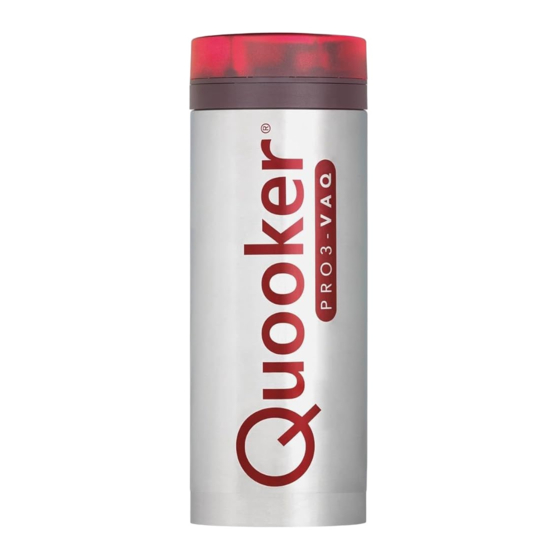

- Page 2 Fusion and Flex tap. Inside the tank the water is heated electrically to approx. 110°C and is kept at this temperature. The Quooker PRO3 has a capacity of 3 litres. Before the water leaves the tank it is purified by the HiTAC ®...
- Page 3 Users The Quooker tap can be used by children above the age of eight and people with diminished physical, sensory or intellectual abilities provided they are supervised or have been instructed on the safe use of the device. Inform people who are unfamiliar with the Quooker system about safe use and the possible dangers associated with the use of the boiling-water tap.
- Page 4 Declaration of conformity Quooker Nederland b.v., Staalstraat 13, 2984 AJ Ridderkerk (The Netherlands) herewith declares, on our own responsibility, that the products Quooker PRO3 is in accordance with the conditions of the following directives: - 2006/95/EC Low voltage Directive - 2004/108/EC Electromagnetic Compatibility Directive...
- Page 5 Technical Specifications Tank PRO3 Voltage 230 V Wattage 1600 W Capacity 3 litres Heating-up time* 10 minutes Standby power consumption 10 W Tank height 44 cm Tank diameter 15 cm Min. mains pressure 200 kPa (2 bar) Max. mains pressure 600 kPa (6 bar) Max.
- Page 6 Contents of the pack 1. Nordic single tap, packing ring, centring ring, steel ring, brass sink nut and two screws or Fusion tap, packing ring, brass fixing plate, fixing nut, white tap support (for thin work tops) and two inlet hose screens or Flex tap, hoses, fibre washer(s), steel washer, screw ring with two screws, coupling with boiling water hose, white tap support, two inlet hose screens and quick-release tool...
- Page 7 2. PRO3 tank 3. Quooker inlet valve with packing ring 4. Angle stopcock with filter and packing ring 5. Inlet couplings and packing rings - ‘Tips for use’...
- Page 8 Overview of Nordic tap installation It's recommended that you install the Quooker in the following order: A. Drilling hole B1. Fitting Nordic single tap C. Connecting water D. Connecting tank NOTE: Please bear in mind that the tank, inlet valve and socket must remain easily accessible for servicing.
- Page 9 Overview of Fusion tap installation It's recommended that you install the Quooker in the following order: A. Drilling hole B2. Fitting Fusion tap C. Connecting water D. Connecting tank NOTE: Please bear in mind that the tank, inlet valve and socket must remain...
- Page 10 Overview of Flex tap installation It's recommended that you install the Quooker in the following order: A. Drilling hole B3. Fitting Flex tap C. Connecting water D. Connecting tank NOTE: Please bear in mind that the tank, inlet valve and socket must remain...
- Page 11 Drilling hole • The tap hole for the Nordic single tap should be 32 mm in diameter. The Fusion and Flex tap hole should be 35 mm in diameter. • The Nordic single tap should ideally be positioned at the corner of the sink to enable use above the sink or the work top.
- Page 12 Fitting Nordic single tap • The total length of the hose between the boiling-water tap and tank is only 70 cm. The tank must therefore be fitted close to the tap. Extension hoses are available in different lengths but are not normally required. •...
- Page 13 Position the brass fixing plate around the hoses. Screw the fixing nut onto the tap thread. Adjust the position of the tap to ensure that the Quooker logo is facing the user. When the handle is in the cold position, it will be parallel to the edge of the work top.
- Page 14 Fitting Flex tap • When installing the reservoir it is necessary to take into account that the Flex tap coupling must be able to move up and down freely. 1 Fit hoses Fit the hot, cold and mixer water hose to the tap.
- Page 15 5 Attach the coupling Click the pull-out hose into the cou- pling's quick-release fitting while ensuring that the hose pillar is fully inserted. 6 Fit the mixer water hose Click the mixer water hose into the coupling's quick-release fitting while ensuring that the hose pillar is fully inserted.
- Page 16 Connecting water • The Quooker operates under mains water pressure and must always be fitted to the water pipe with the supplied inlet valve. • The Nordic single tap, the Fusion tap or the Flex tap must be installed according to the locally applicable regulations.
- Page 17 Connecting tank to tap • The Quooker tank is supplied with a UK 3 pin plug and requires a standard 13 amp earthed socket. • If the mains lead is damaged, it must be replaced by the manufacturer, their agent or a qualified technician.
- Page 18 Disconnecting tank • In case of service 1 Switching off Switch the Quooker off using the on/off switch on top of the lid. Leave the plug in the socket. 2 Draining Open the boiling-water tap and leave the water running until it is cold.
- Page 19 Q U O O K E R E M I R A T E S L L C Address Al Bateen, C2 Tower (10th floor) PO Box 113100 Abu Dhabi (UAE) E-mail info@quooker.ae Internet quooker.ae...
