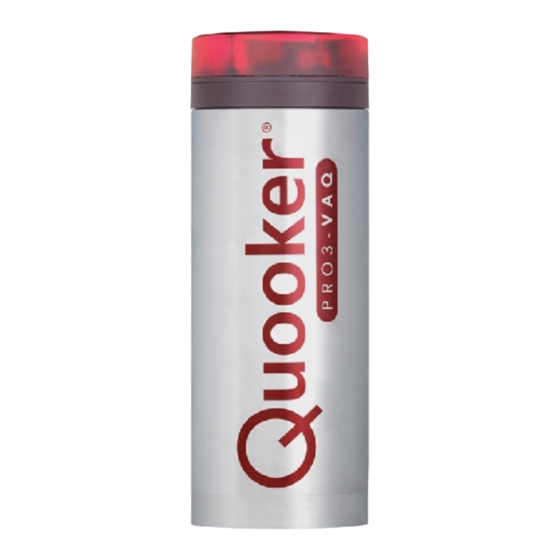

- Page 1 Installation guide PRO3 VAQ B Before installing read this guide first...
- Page 2 5 years. If necessary, the tank can be descaled. In areas with hard water this should be performed more regularly. You must not connect the Quooker to a deionised water device or to a water softener that reduces the pH value.
-
Page 3: Technical Specifications
Technical Specifications Tank PRO3-VAQ B Voltage 230 V Wattage 1600 W Capacity 3 litres Heating-up time* 10 minutes Standby power consumption 10 W Tank height 44 cm Tank diameter 15 cm Min. mains pressure 200 kPa (2 bar) Max. mains pressure 600 kPa (6 bar) Max. -
Page 4: Contents Of The Pack
Fusion tap, packing ring, brass fixing plate, fixing nut, white tap support (for thin work tops) and two inlet hose screens 3. Quooker inlet valve with packing ring 4. Angle stopcock with filter and packing ring 5. Inlet couplings and packing rings... - Page 5 Overview of Nordic tap installation It's recommended that you install the Quooker in the following order: A. Drilling hole B1. Fitting Nordic tap C. Connecting water D1. Connecting tank to Nordic tap NOTE: Please bear in mind that the tank, inlet valve and socket must remain easily accessible for servicing.
- Page 6 Overview of Fusion tap installation It's recommended that you install the Quooker in the following order: A. Drilling hole B2. Fitting Fusion tap C. Connecting water D2. Connecting tank to Fusion tap NOTE: Please bear in mind that the tank, inlet valve and socket must remain...
- Page 7 Drilling hole • The tap hole for the Nordic boiling-water tap should be 32 mm in diameter. The Fusion tap hole should be 35 mm in diameter. • For drilling the hole for the Fusion tap, see step 3 below. •...
- Page 8 Fitting Nordic tap • The total length of the hose between the boiling-water tap and tank is only 70 cm. The tank must therefore be fitted close to the tap. Extension hoses are available in different lengths but are not normally required. •...
- Page 9 Position the brass fixing plate around the hoses. Screw the fixing nut onto the tap thread. Adjust the position of the tap to ensure that the Quooker logo is facing the user. When the handle is in the cold position, it will be parallel to the edge of the work top.
-
Page 10: Connecting Water
Connecting water • The Quooker operates under mains water pressure and must always be fitted to the water pipe with the supplied inlet valve. • The Nordic boiling-water tap or the Fusion tap must be installed according to the locally applicable regulations. -
Page 11: Electrical Connection
Connecting tank to Nordic tap • The Quooker tank is supplied with a UK 3 pin plug and requires a standard 13 amp earthed socket. • If the mains lead is damaged, it must be replaced by the manufacturer, their agent or a qualified technician. - Page 12 Connecting tank to Fusion tap • The Quooker tank is supplied with a UK 3 pin plug and requires a standard 13 amp earthed socket. • If the mains lead is damaged, it must be replaced by the manufacturer, their agent or a qualified technician.
- Page 13 Disconnecting tank • In case of service 1 Switching off Switch the Quooker off using the on/off switch on top of the lid. Leave the plug in the socket. 2 Draining Open the boiling-water tap and leave the water running until it is cold.
-
Page 14: Declaration Of Conformity
Declaration of conformity Quooker B.V., Staalstraat 13, 2984 AJ Ridderkerk (The Netherlands) herewith declares, on our own responsibility, that the products Quooker PRO3-VAQ B and PRO7-VAQ E are in accordance with the conditions of the following directives: - 2006/95/EC Low voltage Directive... - Page 15 Q U O O K E R E M I R A T E S L L C King Abdulla Bin Abdul Aziz Al Saud Street 34 Building C06 (1st floor) PO Box 113100 Abu Dhabi (AE) E-mail info@quooker.ae...
