SimpliFire SF-PP23 Service Manual

Leave this manual with party responsible for use
and operation.
NOTICE! DO NOT discard this manual.
and maintenance instructions included.
NOTICE! DO NOT discard any hardware while
servicing.
It must be reused.
WARNING: If the information in these
instructions is not followed exactly it may
result in personal injury and/or property
damage.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation and service. Sheet metal edges are sharp.

Tools and Supplies Needed

Before beginning the installation be sure that the following
tools and building supplies are available.
Pliers
Phillips screwdriver
Electric drill and bits (1/4 in.)
Safety glasses
Flat blade screwdriver
WARNING! Risk of Shock! Always unplug the cord
before moving or servicing.
SERVICE MANUAL
(Door Frame Glass Removal /Replacement)
Model: SF-PP23, SF-PP26
- Instructions -
Important service
SimpliFire • SF-PP23, SF-PP26 Service Manual • 2040-909 • 8/13

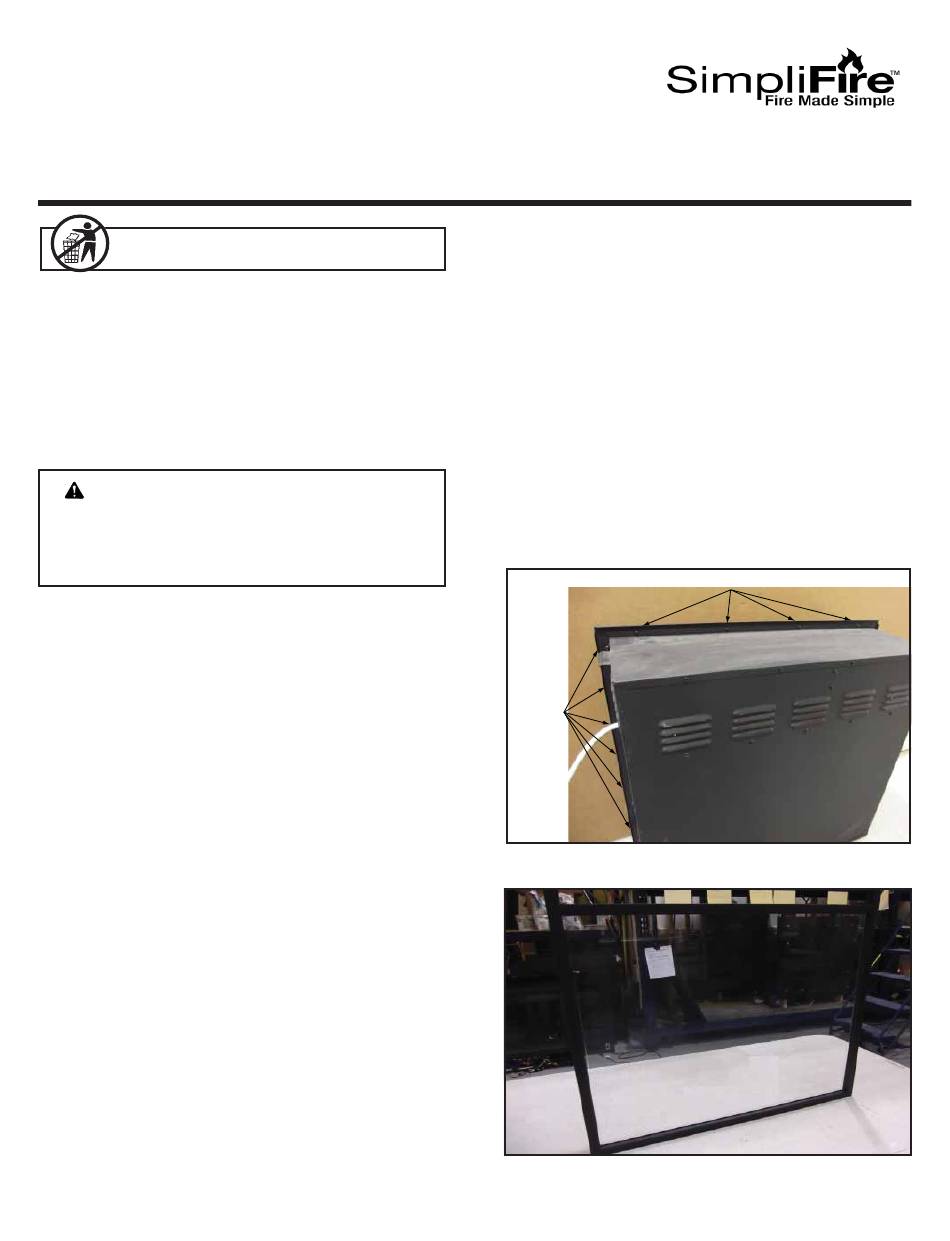

Door Frame Glass Removal / Replacement:

1. Remove unit from cabinet.
2. Access rear side of front fl ange of the sides and top
of the unit.
3. Remove 16 screws around top and side fl ange (4 on
top and 6 on each side). See Figure 1.
4. Remove damaged glass frame assembly. See Figure
2.
5. Align new glass frame assembly on the face of the
unit.
6. Attach the new glass frame by installing 16 screws
through the side and top fl ange.
7. Install unit into cabinet.
BOTH SIDES
6 SCREWS
Figure 1
Figure 2
TOP - 4 SCREWS
1
