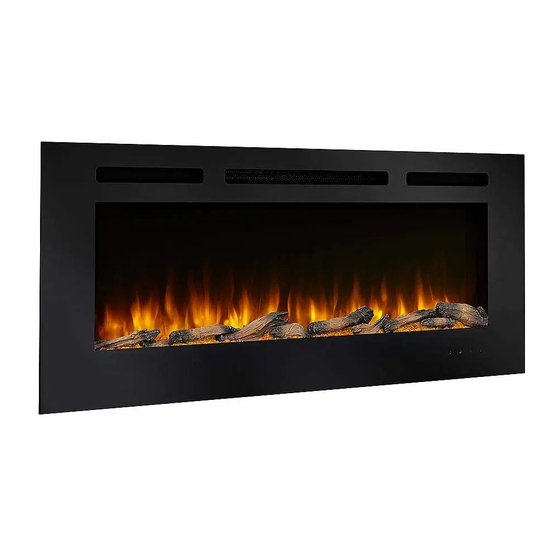

Allusion Series:
Model(s):
SF-ALL48-BK
SF-ALL60-BK
• Important operating
a n d m a i n t e n a n c e
instructions included.
Congratulations!
Congratulations on selecting a SimpliFire Electric Fireplace, an elegant and clean alternative to wood & gas burning fireplaces.
The SimpliFire electric fireplace you have selected is designed to provide the utmost in safety, reliability, and efficiency.
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN
THIS PRODUCT.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE
TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
WARNING: To reduce risk of fire, electrical shock, or personal injury, read all instructions
before using appliance.
DO NOT DISCARD THIS MANUAL
• Read, understand and follow
these instructions for safe
installation and operation.
Please contact your SimpliFire dealer or customer/technical support
(877-320-0730) with any questions or concerns.
For the location of your nearest SimpliFire dealer,
please visit www.hearthnhome.com.
Printed in China - Copyright 2018
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
NOTICE
• Leave this manual with
party responsible for use
and operation.
Owner's Manual
Installation and Operation
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SimpliFire SF-ALL48-BK
Summary of Contents for SimpliFire SF-ALL48-BK
- Page 1 Congratulations! Congratulations on selecting a SimpliFire Electric Fireplace, an elegant and clean alternative to wood & gas burning fireplaces. The SimpliFire electric fireplace you have selected is designed to provide the utmost in safety, reliability, and efficiency. READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN THIS PRODUCT.
-
Page 2: Important Instructions
Return appliance to authorized service facility for examination, electrical or mechanical adjustment or repair. • Do not use outdoors. SAVE THESE INSTRUCTIONS SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 3: Table Of Contents
C. Servicing........19 SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 4: Warranty
Fire fireplace within one year following the date of original purchase, that the SimpliFire fireplace will be free from defects in materials and workmanship at the time of manufacture. If a SimpliFire fireplace is found to be defective in materials or workmanship during the applicable warranty period, HHT will, at its option, repair or replace the SimpliFire fireplace. -
Page 5: General Information
We recommend that you record the following pertinent information about your fireplace. Model Name: ___________________________________________ Date purchased/installed: __________________ Serial Number: __________________________________________ Location on fireplace: _____________________ Dealership purchased from: _______________________________ Dealer Phone: __________________________ Notes: _______________________________________________________________________________________ SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 6: Getting Started
Wall Mounting Bracket with two (2) M5X10 screws - (Only for Direct Wall Mount) Toggle bolt Anchor Masonry Anchor 3/16 Toggle Masonry Bolt Anchor Anchor Power Cord Assembly (Only for Direct Wall Mount) SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 7: Appliance Dimensions
39-3/8 11-1/4 42-13/16 17-13/16 5-15/16 47-1/2 19-3/8 SF-ALL48-BK 1230 1000 1088 1208 60-1/4 20-1/4 51-3/16 11-1/4 54-5/8 17-13/16 5-15/16 59-3/8 19-3/8 SF-ALL60-BK 1530 1300 1388 1508 Figure 3.1 Appliance Dimensions SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 8: Location
8 in. Ceiling Mantel Mantel Depth max. 8 in. min. 0 in. Outside swing arc Wall of adjacent min. 18 in. doors Floor Figure 3.2 Location and Clearances Requirements SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 9: Installation
Total width of framing 3 in. thick at the left and right side of opening. 1-1/2 in . Model Adjust framing dimensions for interior 44-5/16 SF-ALL48-BK sheathing (wallboard sheathing). 1125 56-1/8 SF-ALL60-BK 1425 Figure 4.1 Framing and Wall Finishing for Recessed Installation SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 10: Appliance Preparation
2 X 4 in. wall and is removed when fully recessed Figure 4.3 Fixing Brackets Attachment into a 2 X 6 in. wall. Figure 4.2 Perimeter Skirt SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 11: Recessed In 2 X 4 Framed Wall
Verify gap of 1/16 to 1/8 in. after installing four(4) ST4X25 Wood Screws. Figure 4.5 Adjust Bracket Location WOOD WOOD SCREWS SCREWS Appliance should be supported by this framing. Figure 4.7 Securing the Appliance with Skirt SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 12: Direct Wall Mounting With Wall Mounting Bracket
WARNING! Risk of Damage or Personal Injury! Al- lowable pull-out and shear strength are 25% of ultimate values or less, as required by building authorities. SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 13: Appliance Installation
Mounting Hooks Point Up Note: For non-masonry walls, at least two mounting points (screws ST5X40) must align with structural framing member. Figure 4.12 Bracket Attachment SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 14: Electrical Connection / Installation
4. Replace terminal block cover plate and retaining screws. Wire Diagram Figure 4.14 Optional Power Cord Assembly (Only for Direct Wall Mount Installation) SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 15: Appliance Final Setup
3. Press down on top edge of glass to fully engage J- hooks on the shoulder bolts. Note: Make sure the glass is fully attached to the fire- box so that the control panel can work properly. SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 16: Operating Instructions
A beep should be heard when the power is first applied. See Figure 5.1. Remote Heater Vent Indication Receiver Power Button Flame Button Heater Button Ember Bed Button Control Panel Flame Figure 5.1 Manual Operating Switches SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 17: Operating By Remote Control
Stand-by mode (1) hour increments. time will display but cannot be adjusted. Pressing the Light button changes LIGHT No indicator. the ember bed colors (14 colors available), and turns it on/off. SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 18: Room Temperature And Thermostat Function
For this rea- son, the remote control set point temperature may need to be set slightly higher or lower than expected room tem- perature for the heater function to work as desired. SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... -
Page 19: Maintenance
WARNING! Risk of Electrical Shock! Any other servic- ing needed must be performed by an authorized service representative. Do not attempt to service the unit your- self. SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18... - Page 20 Remote Receiver RECEIV-ALLUS-E Allusion Motor MOTOR-ALLUS HEATER-ALLUS Heater Assembly GLA-ALL48 Glass Front, 48” BRACKET-WM58 Hanging Bracket REMOT-ELECT-ALL Remote PCB-ALLUS PCB Board Assembly PLUGIN-ALLUS Power Cord LED-ALL48 LED Assembly, 48” 3/18 SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18...
-
Page 21: Service Parts
RECEIV-ALLUS-E Remote Receiver Allusion Motor MOTOR-ALLUS HEATER-ALLUS Heater Assembly GLA-ALL60 Glass Front, 60” BRACKET-WM58 Hanging Bracket Remote REMOT-ELECT-ALL PCB-ALLUS PCB Board Assembly PLUGIN-ALLUS Power Cord LED-ALL60 LED Assembly, 60” 3/18 SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18...
