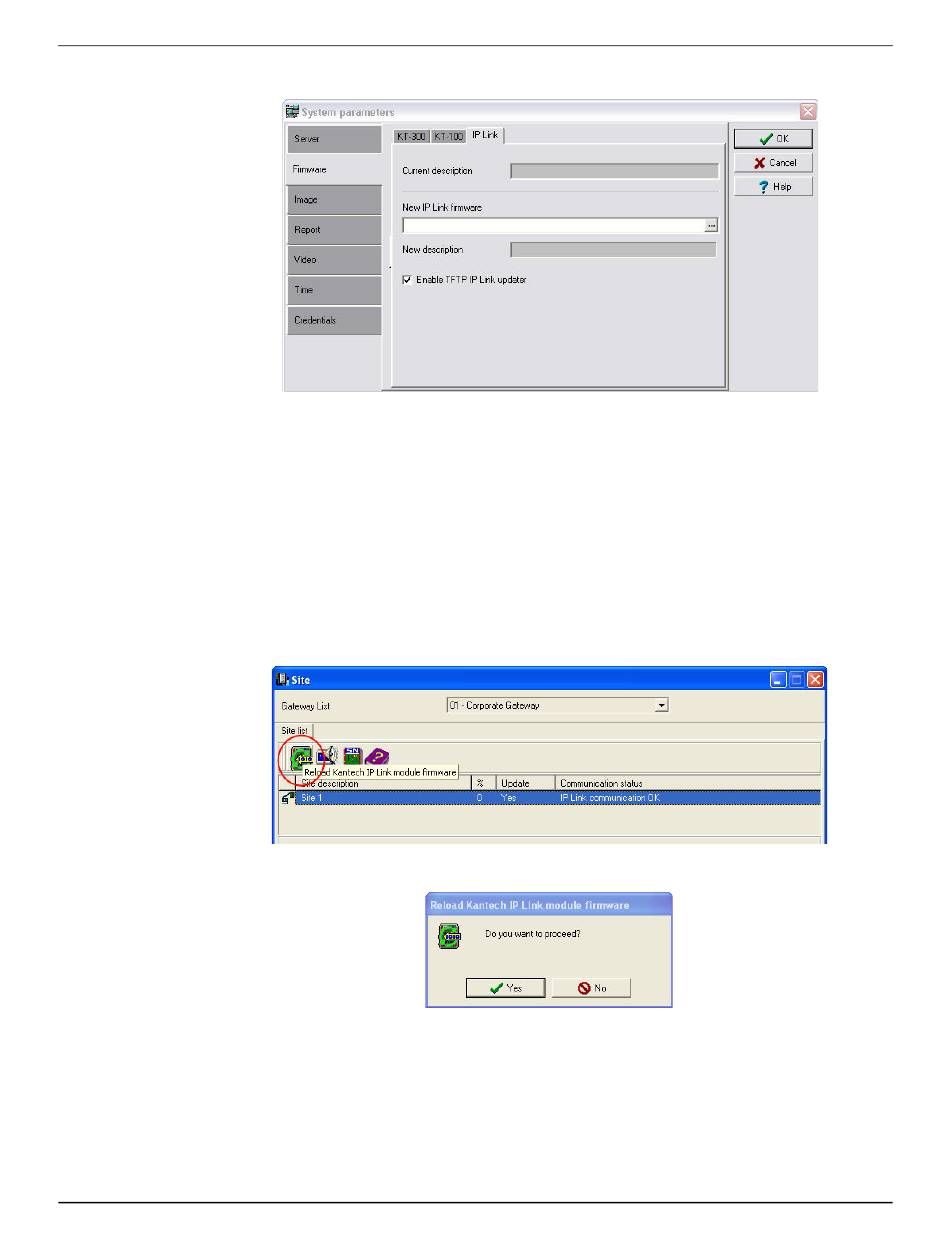

6. From the Options menu, click System Parameters.
7. From the Firmware section, click on the IP Link tab.
8. Make sure the Enable TFTP IP Link updater option is checked.
9. Click on the 3 dots to locate the firmware file.
10.Click the firmware file and click OK.
11. Click OK to close the System Parameters dialog.
12.From the Operation menu, click Site.
13.Click the Gateway from the Gateway List.
Note: For the EntraPass Special Edition application, there is no Gateway List selection.
14.Click on the site that corresponds to the IP Link to highlight it.
15.Click on the reload firmware button.
16.A confirmation displays.
17.Click Yes.
18.The IP Link will reset and restart with the new firmware.
Warning: That process could take up to 5 minutes.
The communication status in the Operation > Site will say IP Link Communication Failed then back
to IP Link Communication OK.
