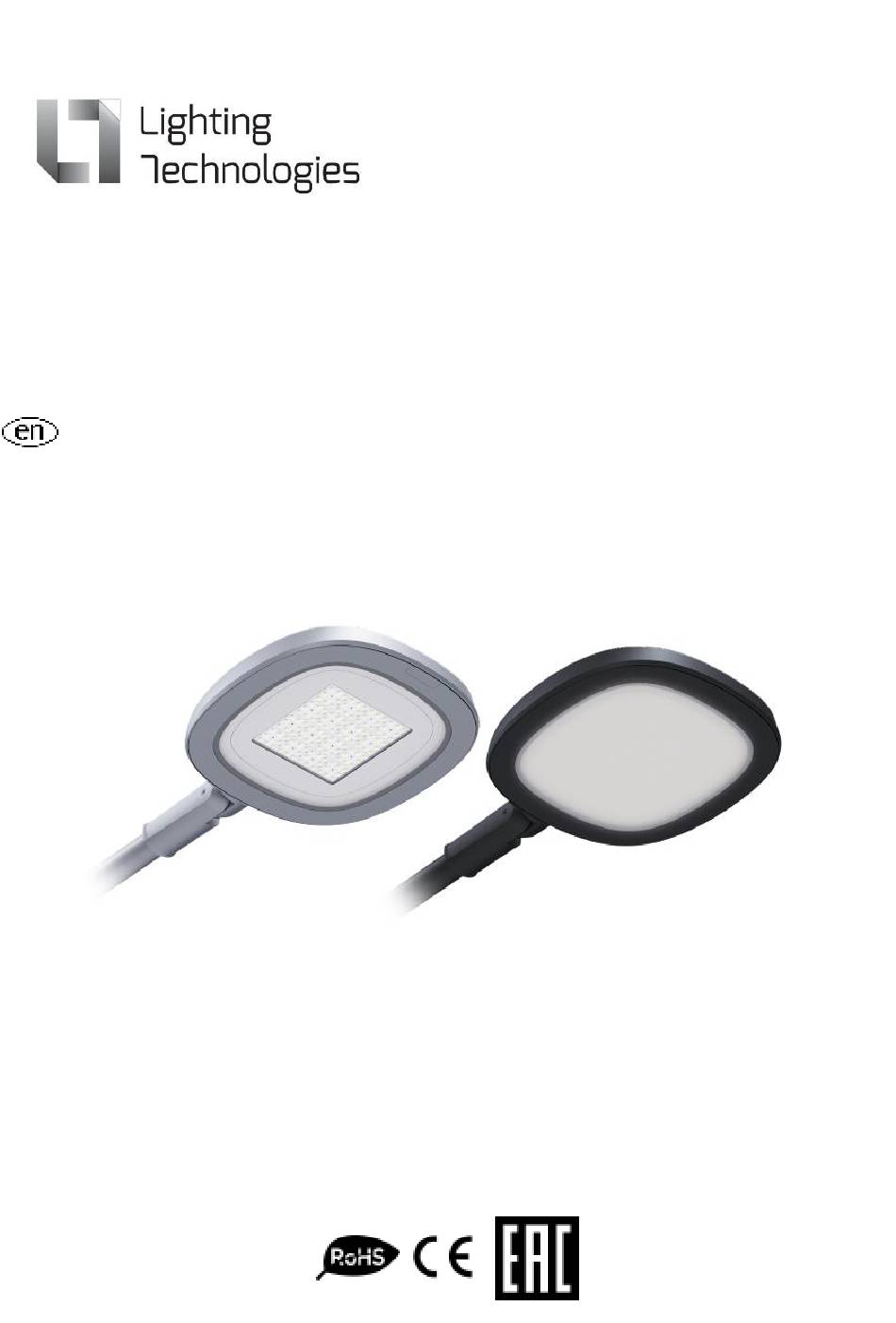

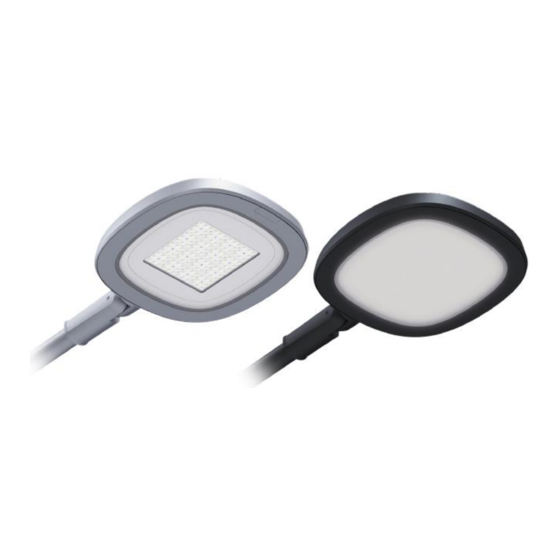

- Page 1 SKYLINE LED /M Manual...
- Page 2 SKYLINE LED Luminou Luminous Size, mm, Weight, kg CRI, Ra Rated Name Code flux, lm AxBxC power, efficienc y, lm/W SKYLINE LED 30 DK 4000K /M/ 1707000420 4350 12,7 >80 SKYLINE LED 60 DW 4000K /M/ 1707000430 7700 >70 730x490x130 1997031940 12000 >70...
- Page 3 DELIVERY SET Luminaire, pcs. Package, pcs. Manual, pcs. FUNCTION Console luminaire with LED light source is designed for lighting of streets and roads with low and medium traffic capacity. The luminaire light source cannot be exchanged or replaced by the user. Replacement of the luminaire light source is available in the factory or in a specialized service.
- Page 4 INSTALLATION AND OPERATION RULES The luminaire should be used according to «Standard code of customer electrical installations». Installation, cleaning and replacing of the components should be done only with the main power off. The diffuser should be cleaned with soft cloth and mild detergent. Switch mains power off.
- Page 5 4.2 Mount the luminaire on support or vertical pole with diameter 48-60 mm. Adjust luminaire's position using the bubble level (1) on the bracket. Fix the luminaire by tightening lock screws (2) with at least 18 Nm of torque. Lock the screw with hexagonal nuts (3). 4.3 Release screw (4) if needed.
- Page 6 CONNECTION SCHEME CONNECTION SCHEME FOR DALI DIMMING LUMINAIRES WARRANTY The manufacturer shall repair or replace a luminaire that has been found to be defective under normal use through no fault of the customer provided that it was delivered, stocked, mounted/installed and operated in conditions and according to the requirements specified in a product data sheet, engineering specifications, mounting and service instructions, delivery terms, rules for technical maintenance of electrical installations and other conditions agreed by the manufacturer and the customer during the warranty period or expanded warranty period...
- Page 7 ACCEPTANCE CERTIFICATE The luminaire meets the requirements of applicable EC directives Manufacture date ___________________________________________________________________ Inspected by _______________________________________________________________________ Packaged by _______________________________________________________________________ Manufacturer: company LLC "IGC "Lighting Technologies' Date of sale________________________________________________________________________ Company stamp Hotline 0049 89 550 59 8611 www.LTcompany.com...
