Avaya Inc. OTICE Avaya Inc. makes no endorsement of any particular product for any purpose, nor claims any responsibility for its operation and accuracy. URTHER...
Page 3
AFETY AND OMOLOGATION TATEMENTS Declaration of Conformity Please see the associated Declaration of Conformity document, within the Approvals folder.
Table of Contents ABLE OF ONTENTS CHAPTER 1 - INTRODUCTION............1–1 CHAPTER 2 - PRODUCT VARIANTS ..........2–1 ....................... 2–1 YBER TA ......................2–1 YBER ..................... 2–1 URRENT ARIANTS CHAPTER 3 - PORT LABELLING..........3–1 ....................... 3–1 YBER TA ......................3–2 YBER CHAPTER 4 - PORT CONNECTIONS..........4-1 A PC....................4-1 ONNECTION ..................4-1...
Page 6
Table of Contents AT&V – V.110 ....................5-7 RATE AT&W – S ..............5-8 AVE CURRENT CONFIGURATION AT*A – M ..............5-8 ULTI ANDWIDTH AT*B – M BACP M ................5-8 ULTI APPENDIX A - PORT PINOUTS ............. A-1 DTE P ........................

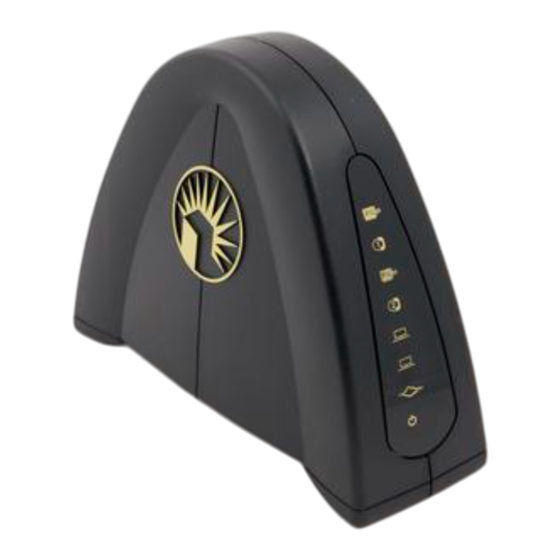

Introduction Chapter 1 - I NTRODUCTION Thank you for purchasing one of the new innovative CyberGear products from Avaya Inc. Alchemy series. The CyberGear product range is the first of a new generation of networking systems. It is designed to integrate both computer and telephony requirements for the small office. This is achieved by fully utilising :- - speed and comprehensive feature set offered by ISDN;...
Page 8
Introduction CyberGear Gold Desktop The Internet Office File Server Incoming telephone call Incoming telephone call Call routed to Call forwarded specific phone to PC after user determined extension or ringing threshold group exceeded Incoming phone Voice-Mail left number shown on on PC.
Page 9
Introduction CyberGear TA Telephone Extension Desktop Computer Telephony for All Simultaneous voice and Internet connection Incoming telephone call Automatic Internet connection on demand 128,000 bps Call routed to connectivity specific phone extension or group Incoming phone number shown on PC screen with optional automatic display of contact information...
Product Variants Chapter 2 - P RODUCT ARIANTS The CyberGear Product Range consists of two models, the CyberGear Gold and the CyberGear TA. YBER The CyberGear Gold provides a fully featured voice PBX, data Router and ISDN TA in a single unit.
Port Labelling Chapter 3 - P ABELLING YBER The following diagrams show the port labelling on the Alchemy Series CyberGear Gold. B1 Data B1 Voice B2 Data B2 Voice DTE port LAN Activity LAN Status ISDN Status Unit Status CyberGear Gold CyberGear Gold Rear View Front View...
Port Labelling YBER The following diagrams show the port labelling on the Alchemy Series CyberGear TA. B1 Data B1 Voice B2 Data B2 Voice DTE port ISDN Status Unit Status CyberGear TA CyberGear TA Front View Rear View Phone Port 1 Phone Port 3 Phone Port 2 ISDN Port...
Port Connections Chapter 4 - P ONNECTIONS A PC. ONNECTION The DTE port is presented as a standard 25 way D-Type socket on the rear of the unit. This port can be used to connect to a PC or other Asynchronous Device. A 25 way to 9 way adapter cable is supplied with the CyberGear unit.
Port Connections ISDN (BRI). ONNECTION ASIC The CyberGear TA and the CyberGear Gold connect to Basic Rate ISDN. Each CyberGear comes supplied with a suitable cable for connection to the ISDN Network. The Basic Rate ISDN port is labelled as :- Additional or replacement ISDN Cables can be obtained by ordering Sales Feature ARG- ISDNC (Alchemy Series part number CABBRINN03M0PP00).
The AT Command Set Chapter 5 - T COMMAND ENERAL This chapter explains how to configure and use the Terminal Adapter (TA) functionality of the CyberGear TA and the CyberGear Gold. The TA functionality is achieved by connecting a Terminal (or a PC running Terminal Emulation Software) to the CyberGear’s DTE port and issuing the appropriate “AT Commands.
The AT Command Set Note – There is no Battery backed memory on the CyberGear, consequently all profiles will return to their Factory Default values after a power off/on. AT C OMMANDS Description Possible Values Default Value Answer call. - - - - - - ATBn Set mode.
Page 19
The AT Command Set EGISTERS S-Reg. Description Possible Values Default Value Auto-Answer. Range: 0 – 255 Default = 0. (0 = Disabled) Ring counter (Read only). - - - - - - Escape character. Range: 0 – 127 Default = 43 (+). (0 = Disabled) Carriage Return character.
NFORMATION This command is used (mainly by Plug and Play utilities) to obtain product information. ATI0 - displays the Product Number ATI1 - outputs the string “Avaya Inc.” ATI2 - displays the Product Description ATI3 - displays the Version String ATI9 - displays the Product’s Plug and Play ID.
The AT Command Set ATO – R ESUME ESSION Once the CyberGear establishes a call it enters the Data Transfer Mode in which it is ready to send and receive data. Normally the unit will remain in this mode until the call is terminated, or the PC sends the data mode escape sequence (+++).
The AT Command Set AT&B –B EARER APABILITY This command sets the units Bearer Capability. The options are:- AT&B0 - sets the Bearer Capability to Digital Mode (data). AT&B1 - sets the Bearer Capability to Speech Mode (3.1 kHz audio). AT&B2 - sets the Bearer Capability to V.110 Mode (V.110).
The AT Command Set AT&H – F ONTROL This command controls the flow of data between the attached PC and the CyberGear DTE port. This is parameter is important when the speed of the asynchronous connection between the CyberGear DTE port and the attached PC is greater than the speed of the link to the remote site.
The AT Command Set AT&W – S AVE CURRENT CONFIGURATION This command is used to save the current configuration parameters to profile 0, 1 or 2. If no profile is specified then the configuration parameters are stored in profile 0. i.e.
Port Pinouts Appendix A - P INOUTS DTE P Pin No. Description Signal Direction Transmit Data (TxD) Pin 1 Receive Data (RxD) Request to Send (RTS) Clear to Send (CTS) Data Set Ready (DSR) Pin 25 Signal Ground Data Carrier Detect (DCD) Data Terminal Ready (DTR) Ring Indicator (RI) POTS P...
Port Pinouts TA UK (Each port supports 1 telephone.) Connector Description Pin Number Ring Bell Pin 1 Pin 6 NOTE – Please note that the numbering of the pins on this socket is vendor dependant. TA EU (Each port supports 1 telephone.) Pin Number Description Pin 1...
Page 27
Cables Appendix B - C ABLES BRI ISDN C ABLE (CABBRINN03M0PP00) (Sales Feature :- ARG-ISDNC) Item Description RJ45 Plug. RJ45 Plug. Labelled with “CABBRINN03M0PP00 /1” Cat 5 UTP cable - RED 3 metre Pin Connections End A Name Colour Cable Notes End B *Rx-A Blue/White...
Page 28
Cables DCE C ABLE (CABMANSN02M0PS00) (Sales Feature :- ARG-TAC) Item Description 25 Way D-Type Plug with UNC 4-40 locking screws. 9 Way D-Type Socket with UNC 4-40 locking screws. 12 core screened cable – each core is 7/0.203mm (24 a.w.g.) tinned copper stranded wire, nominal capacitance of 95pF/m, resistance of 92 Ω/km, screened with tinned copper braid, maximum working voltage of 440V r.m.s.
Page 29
Cables LAN I NTERCONNECT ABLE (CABETHNN03M0PP00) (Sales Feature :- ARG-LAN3C) Note – This cable is used when connecting a CyberGear Gold directly to a Hub. Item Description RJ45 Plug. RJ45 Plug. Cat 5 UTP cable - GREY 1 metre Pin Connections End A Colour Cable Notes...
Cables LAN C ROSSOVER ABLE (CABETHNX03M0PP00) (Sales Feature :- ARG-EX10C) Note – This cable is used when connecting a CyberGear Gold directly to a PC. Item Description RJ45 Plug. RJ45 Plug. Cat 5 UTP cable - BLACK 3 metre Pin Connections End A Colour Cable Notes...
Page 31
Cables UK W YBERGEAR IRING (Part No. :- CABVOINN03M0UK00) (Sales Feature :- CYG-BTDC) The CyberGear Voice Cable Assembly consists of THREE cables similar to the one described below. These cables allow six telephones to be connected to the CyberGear Gold using the three BT New Plan Voice Ports on the base of the Unit.
Page 32
Cables YBERGEAR UROPEAN IRING (Part No. :- CABVOINN03M0EU00) (Sales Feature :- CYG-RJDS) The CyberGear Gold European wiring kit allows six telephones to be connected to the CyberGear Gold using the three RJ45 Voice Ports on the base of the Unit. THREE of the following cables make up the CyberGear Gold European wiring kit.
Page 33
Port Safety Classification Appendix C - P AFETY LASS I FICATION The Alchemy Series CyberGear TA and CyberGear Gold have the following ports in common :- 1 x DTE port, 3 x POTS ports, 1 x DC Power Input port. The CyberGear Gold has in addition 1 x 10BaseT LAN port and 3 extra POTS ports.
Page 35
Technical Specifications Appendix D - T ECHNICAL PECIFI C ATIONS NTERFACES DTE: 25 way D-Type female connector, V.24/V.28, for Async connections (TA operation). ISDN S/T: RJ45 socket. ETSI S/T Interface to CTR3 for Pan European Connection POTS: CyberGear Gold UK - 3 BT New Plan sockets, each socket supports two phones.
Technical Specifications ROTOCOLS V.120 - - - A standard Rate Adaption mechanism. V.110 - - - A standard Rate Adaption mechanism. RFC 1661 Point to Point Protocol. RFC 1570 Link Control Protocol. RFC 1990 Multi-Link (Point to Point) Protocol. RFC 1334 Password Authentication Protocol.
