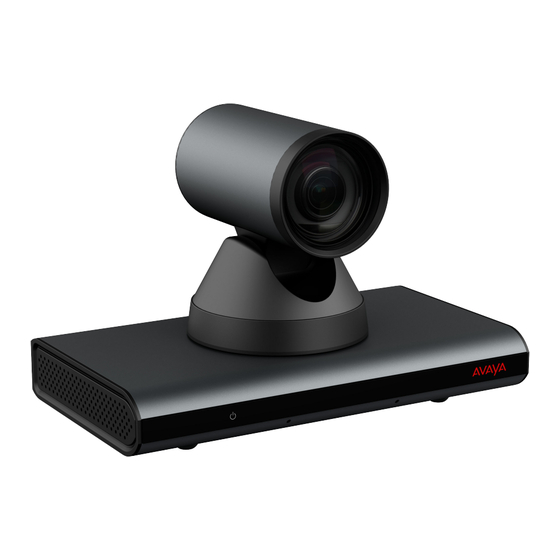

- Page 1 Avaya Room System C170 Quick Start Guide Release 1.1 Issue 1 September 2024...
- Page 2 Avaya can be a criminal, as well as a civil offense or offered within them. Avaya does not guarantee that these links will under the applicable law.
- Page 3 (or such successor site Brazil Statement as designated by Avaya), scroll to the bottom of the page, and select Este equipamento não tem direito à proteção contra interferência Contact Avaya Support. prejudicial e não pode causar interferência em sistemas devidamente...
- Page 4 ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Avaya LLC is under license. Android, Google and Google Play are trademarks of Google Inc. Device Usage Consent...
-
Page 5: Table Of Contents
.......................... 12 Installation .................. 12 Avaya Room System C170 cables ........ 14 Powering on Avaya Room System C170 and Avaya Room System C190 Chapter 3: Basic operations.................... 15 ......................... 15 Making a call .................. 15 Adding a contact to the address book ...................... -
Page 6: Chapter 1: Overview
Avaya Room System C170 physical layout The following images and table give an overview of the Avaya Room System C170 physical layout. September 2024... - Page 7 Avaya Room System C170 physical layout LINE LINE TOUCH/DMIC DC 12V 10 11 12 13 14 16 17 18 19 Number Name Description Camera Built-in camera. Table continues… September 2024 Avaya Room System C170 Quick Start Guide Comments on this document?
- Page 8 Reset button and then power on the codec. Release the button after the primary HDMI output displays Installing System Update. September 2024 Avaya Room System C170 Quick Start Guide Comments on this document?
-
Page 9: Indicator Status
Indicator status Indicator status The following table lists the indicator statuses of Avaya Room System C170: State Indicator status Power on process Red indicator flashing Standby mode or power connected Red indicator steady Powered off by remote control Receiving infrared signal... - Page 10 PC button: Turn on/off dual stream / AI tracking Open dual stream preview NEAR/FAR LAYOUT Layout button: Change screen layout Mute button: Turn on/off audio input September 2024 Avaya Room System C170 Quick Start Guide Comments on this document?
-
Page 11: Remote Control Shortcuts
HDMI 2, Camera Compose (a combination of HDMI 1 and HDMI 2), or USB. ZOOM +/- Enter PTZ control mode. ZOOM +/- + any button other than an arrow button Exit PTZ control mode. September 2024 Avaya Room System C170 Quick Start Guide Comments on this document? -
Page 12: Chapter 2: Getting Started
Chapter 2: Getting started Installation You can place Avaya Room System C100 Series on surfaces, such as a desk, a cabinet, or other pieces of furniture. You can also choose to install Avaya Room System C130 or Avaya Room System C170 on the enclosed bracket. - Page 13 Touch/DMIC interface. Connect a USB microphone or a USB device, such as keyboard or mouse. Avaya Room System C170 is compatible with Avaya and third-party microphones. For Avaya microphones, you must use the following connection options: • RM61: Connect through the Touch/DMIC port.
-
Page 14: Powering On Avaya Room System C170 And Avaya Room System C190
Connectivity and power Network Connect to an Ethernet network using a network cable. Power Supply Connect Avaya Room System C170 to the power outlet using the supplied power adapter. Powering on Avaya Room System C170 and Avaya Room System C190... -
Page 15: Chapter 3: Basic Operations
You can add a contact to the address book and determine the protocol and call rate to use when calling. When the saved contact calls you, you can see their name and phone number on the Incoming Call window. September 2024 Avaya Room System C170 Quick Start Guide Comments on this document? -
Page 16: Adjusting Video Settings
You can also create pan, tilt, and zoom (PTZ) presets that you can later recall from the same page to quickly move your camera to the required position. The Camera Parameters configuration section applies only to the cameras integrated into Avaya Room System C130 and Avaya Room System C170 models. -
Page 17: Managing A Presentation
2. To send the presentation to the far end, enable the Presentation switch. 3. To preview the presentation on the connected video source device, enable the Presentation Preview switch. September 2024 Avaya Room System C170 Quick Start Guide Comments on this document? -
Page 18: Chapter 4: Resources
Chapter 4: Resources Documentation Avaya Room System C100 Series customer documentation is available in HTML and PDF format on the Avaya Documentation Center Avaya Support website. Title Use this document to: Audience Administering Installing and Administering Avaya Perform initial installation and... - Page 19 While navigating through the Documentation Center, you can click the Avaya Documentation Center logo at the top of the screen to return to the home page anytime. On the Avaya Documentation Center, you can do the following: • Click Avaya Links in the top menu bar to access other Avaya websites, including the Avaya Support website.
-
Page 20: Finding Documents On The Avaya Support Website
Chat with live agents to get answers to questions, or request an agent to connect you to a support team if an issue requires additional expertise. Using the Avaya InSite Knowledge Base The Avaya InSite Knowledge Base is a web-based search engine that provides: • Up-to-date troubleshooting procedures and technical tips. • Information about service packs. - Page 21 • Links to other pertinent information. If you are an authorized Avaya Partner or a current Avaya customer with a support contract, you can access the Knowledge Base without extra cost. You must have a login account and a valid Sold-To number.
- Page 22 GUI menu ............. Avaya Room System C190 ...........12 collection installing delete ................18 connecting ..............edit ................18 powering on ..............generating PDF ............sharing content ............. components September 2024 Avaya Room System C170 Quick Start Guide Comments on this document?
- Page 23 ..............support .................20 video settings configuring from web interface ........watchlist ................web interface managing presentation ..........setting up PTZ .............. setting up video settings ..........September 2024 Avaya Room System C170 Quick Start Guide Comments on this document?
