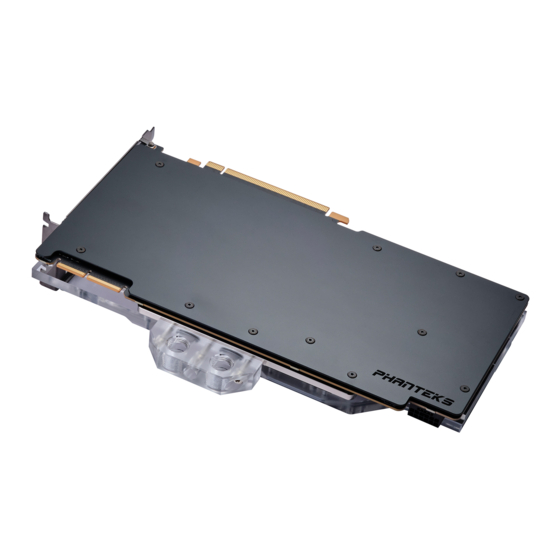

GLAC IER G3090Ti MSI WATERBLOCK
PH-GB3090TIMS_BK01/CR01
PACKAGE CONTENTS
GLACIER GB3090TIMS
QTY: 1
GLACIER Stop Fitting
QTY: 2
WARNING -
This product is intended for advanced users. Improper installation may result in damage to your equipment. While all e orts have
been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s) occurring to your
components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in
the Phanteks cooling products. Do not disassemble the water block. Warranty will be voided.
Turn o the power to your system and discharge your body's static electric charge before proceeding with the installation procedure. If you do not feel comfortable
with performing the installation procedure, consult a quali ed computer technician.
STEP 1. REMOVING STOCK COOLER
Unscrew all highlighted screws to remove
the stock cooler.
backplate screws
stock cooler screws
Make sure to unplug the LED and Fan
cables when you remove the stock cooler.
Take the EVA-Foam from the box to use
as a base for your installation process.
STEP 2. APPLYING THERMAL PASTE & PADS
Clean o the original thermal compound.
We recommend using isopropanol alcohol.
Apply a drop of the Phanteks Thermal
Compound to the center of the GPU chip
Remove the protective lm and place the
the thermal pads on the correct position on
the PCB.
Make sure to remove the protective lm on
both sides of the thermal pads.
Thermal Pads
1
1 1 1 1 1 1 1 1
1 1 1
QTY: 2
2
2
5
4
4
4
4
3
6
7 7
6
7 7 7
M2.5x5 Screws/Washers
QTY: 4/4
MSI RTX 3090 Ti SUPRIM (X)
MSI RTX 3090 Ti BLACK/GAMING(X) TRIO
MSI RTX 3090 Ti SUPRIM (X)
MSI RTX 3090 Ti BLACK/GAMING(X) TRIO
6
1
1 1 1 1 1 1 1 1
INSTALLATION GUIDE V1.0
For latest version check www.Phanteks.com
3
7
7
7
4
1
1
1
4
1
1
2
1
1
1
1
1
1
4
4
1
7
7
5
1 1 1
2
2
5
4
4
4
4
3
Thermal Compound
PH-NDC-01
QTY: 1
Phanteks D-RGB Cable
QTY: 1
Phanteks D-RGB
Motherboard Adapter
QTY: 1
2
6
6
7 7
6
7 7 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phanteks GLACIER G3090Ti MSI
Summary of Contents for Phanteks GLACIER G3090Ti MSI
- Page 1 Phanteks assumes no liability expressed or implied for any damage(s) occurring to your components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in the Phanteks cooling products.
- Page 2 STEP 5. CONNECT D-RGB LIGHTING Connect the D-RGB cable to the D-RGB strip in the water block. All Phanteks D-RGB products can be daisy-chained together. You can connect the D-RGB cable to a compatible motherboard with the D-RGB D-RGB Motherboard Adapter Motherboard Adapter.
