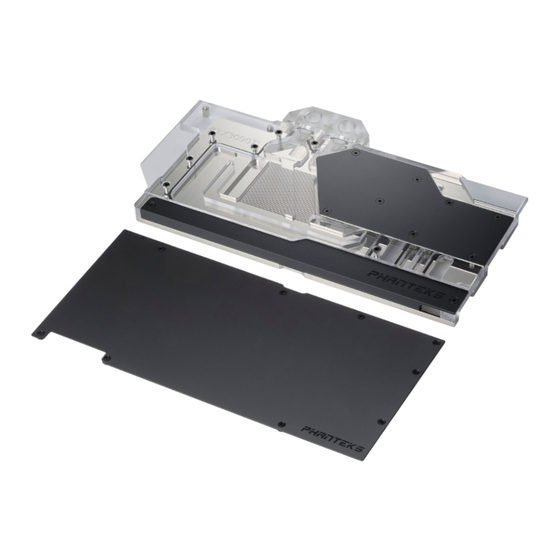

Phanteks GLACIER G3090Ti ASUS BACKPLATE Installation Manual

GLAC IER G3090Ti ASUS BACKPLATE
PH-GB3090TIASBP_BK01/CR01

PACKAGE CONTENTS

GLACIER BACKPLATE
QTY: 1
This product requires the PH-GB3090TIAS GPU water block. Please follow step 1 to 3 of the GPU
water block's installation guide before proceeding.
WARNING - This product is intended for advanced users. Improper installation may result in damage to your equipment. While all e orts
have been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s)
occurring to your components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below
instructions, or due to failure or defect in the Phanteks cooling products. Do not disassemble the water block. Warranty will be voided.
Turn o the power to your system and discharge your body's static electric charge before proceeding with the installation procedure. If you do not
feel comfortable with performing the installation procedure, consult a quali ed computer technician.
FINISH STEPS 1 TO 3 FROM THE WATER BLOCK INSTALLATION GUIDE BEFORE PROCEEDING:

STEP 4. APPLYING THERMAL PADS

Remove the protective lm and place the
thermal pads on the correct position on
the backplate.
3
4
6
8
10
Make sure to remove the protective lm on
both sides of the thermal pads.
1
1
2
5
7
9 14 14
11
INSTALLATION GUIDE V1.0
For latest version check www.Phanteks.com
M2.5x8 Flush Screws
4
QTY: 9
6
8
10
2
8 4 1
3
Thermal Pads
5
QTY: 3
1
7
1
9 14 14
3 2
11
11
7
1 6 10
9
5
