Phanteks GLACIER G6000 Installation Manual

Phanteks GLACIER G6000 Installation Manual

Strix rx 6900/6800

Advertisement

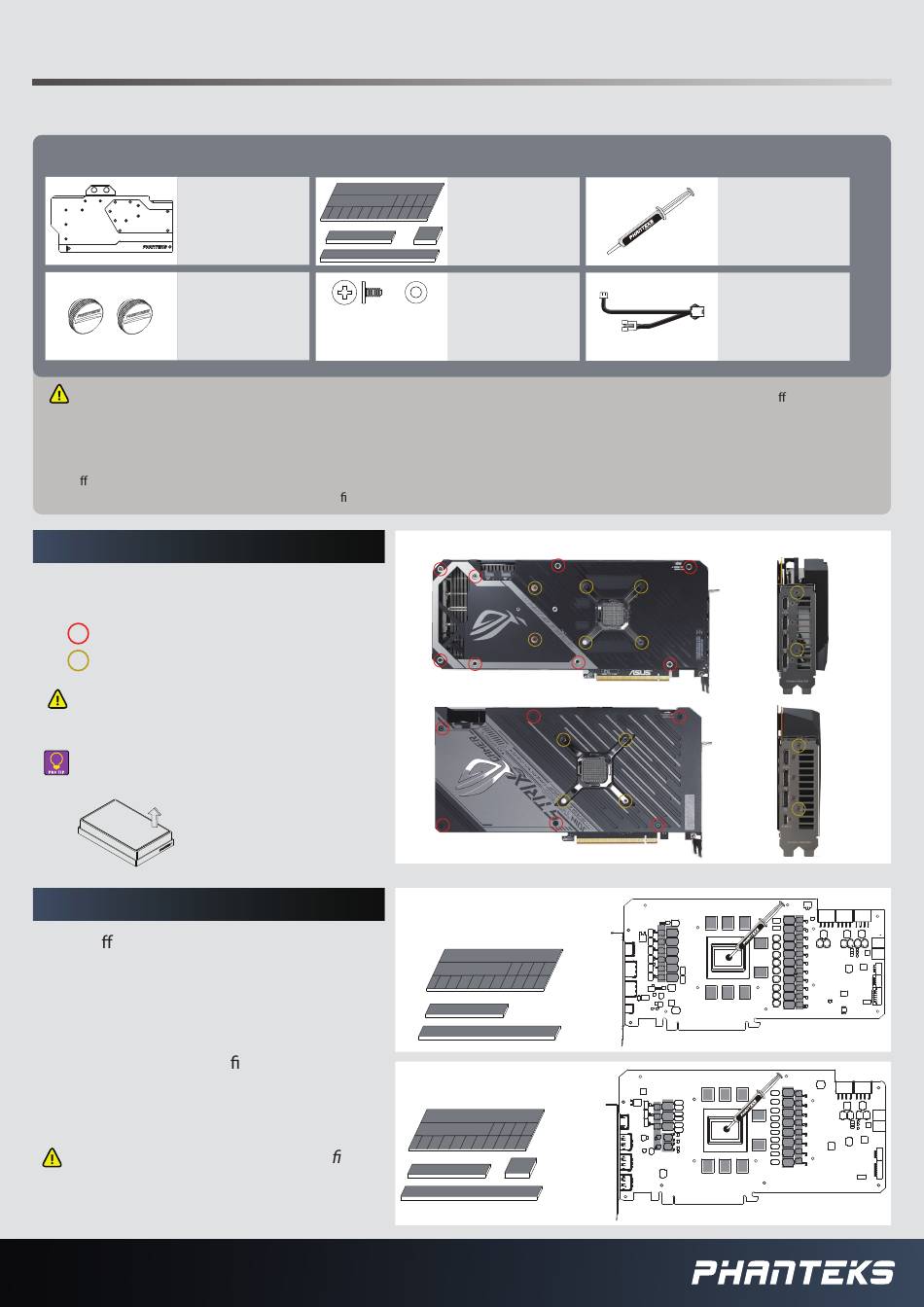

GLAC IER G6000 STRIX RX 6900/6800
PH-GB6900ASSRX_BK01/CR01

PACKAGE CONTENTS

GLACIER GB6900ASSRX
QTY: 1
GLACIER Stop Fitting
QTY: 2

WARNING -

This product is intended for advanced users. Improper installation may result in damage to your equipment. While all e orts have
been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s) occurring to your
components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in
the Phanteks cooling products. Do not disassemble the water block. Warranty will be voided.
Turn o the power to your system and discharge your body's static electric charge before proceeding with the installation procedure. If you do not feel comfortable
with performing the installation procedure, consult a quali ed computer technician.

STEP 1. REMOVING STOCK COOLER

Unscrew all highlighted screws to remove
the stock cooler.

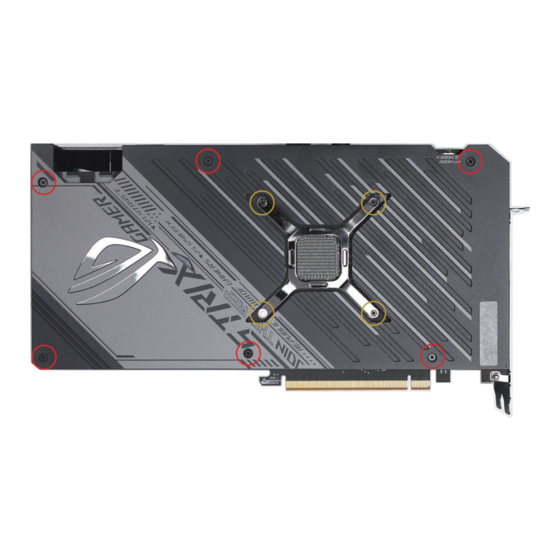

backplate screws
stock cooler screws
Make sure to unplug the LED and Fan
cables when you remove the stock cooler.
Take the EVA-Foam from the box to use
as a base for your installation process.
STEP 2. APPLYING THERMAL PASTE & PADS
Clean o the original thermal compound.
We recommend using isopropanol alcohol.
Apply a drop of the Phanteks Thermal
Compound to the center of the GPU chip
Remove the protective lm and place the
the thermal pads on correct position on
the PCB.
Make sure to remove the protective lm on
both sides of the thermal pads.
Thermal Pads
3
2
1 1 1 1
QTY: 4
1 1 1
1 1 1 1 1 1 1
6
4
5
M2.5x5 Screws/Washers
QTY: 15/15
STRIX RX 6800 / TUF RX 6800 / 6800XT / 6900XT
STRIX RX 6800XT / 6900XT
STRIX RX 6900XT / 6800XT
TUF RX 6900XT / 6800XT
3
2
1 1 1
1 1 1 1 1 1 1
4
5
STRIX / TUF RX6800
3
2
1 1 1 1
1 1 1
1 1 1 1 1 1 1
4
5
INSTALLATION GUIDE V1.0
For latest version check www.Phanteks.com
4
2
1 1 1 1
2
4
6
6
Thermal Compound
PH-NDC-01
QTY: 1
Phanteks D-RGB Cable
QTY: 1
1
1
1
1
3
5
1
1
1
1
1
1
1
1
3
5
1
1
1
1
