Valcom PagePac V-5331210 Quick Start Manual
Valcom PagePac V-5331210 Quick Start Manual

Valcom PagePac V-5331210 Quick Start Manual

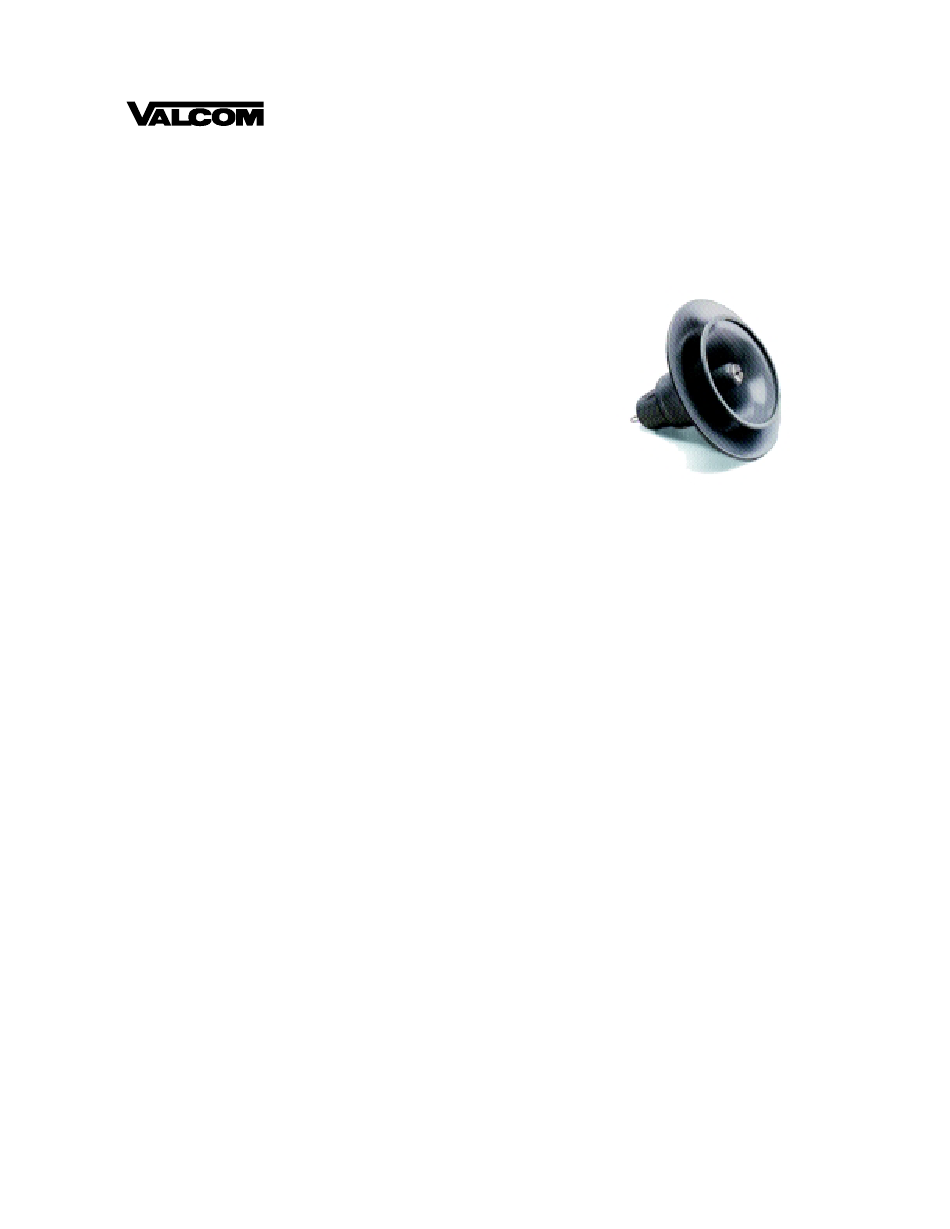

30 watt suspended-radial horn

Advertisement

Quick Links

PagePac
by
INTRODUCTION
Horn speakers that produce high sound levels are
capable of covering large noisy areas.
Minimum effective mounting height for a horn is
critical. The Suspended-Radial Horn is used
when 360° sound dispersion pattern is required.
NOTE: Speaker is provided with 10' mounting
chain. If this is not enough, additional chain must
be acquired. See suggested mounting height for
chain requirements (Figure 2).
SPECIFICATIONS
FEATURES
• High Intelligibility
• Built-in Transformer
• 360° Radial Dispersion
Nominal Specifications
• Frequency Response: 225Hz - 14kHz
• Dispersion: 360°
• 112 dB @ 1W, 1 Meter
• 70 Volt / 30 Watt
Dimensions/Weight
• 13.0"W x 11.8"H (33.0cm x 29.9cm)
10 lbs. (4.5 kg)
Environment
• Temperature: 0 to 40°C (32 to 104°F)
• Humidity: 0 to 85%
Technical Manuals Online! - http://www.tech-man.com
Technical Manuals Online! - http://www.tech-man.com
®
30 WATT SUSPENDED-RADIAL HORN
(70V) V-5331210
firealarmresources.com
INSTALLATION
MOUNTING
Attach the 10 foot metal chain supplied with the
horn to the post and ring on the horn base (see
Figure 1).
The device used to attach the chain to the ceiling
must withstand a 30 pound pull test, or the weight
specified by local construction or safety codes,
whichever is greater.
WIRE CONNECTIONS
A clear plastic cover protects the horn screw ter-
minals and provides strain relief for the wires.
1. Remove the two screws from the plastic cover.
2. Set volume adjustment to lowest setting.
3. Connect the (+) 70V side of the speaker wire to
terminal 2. Connect the (-) or common side of
the speaker wire to terminal 1 (see Figure 1).
4. Do not replace the plastic cover until final
power adjustments have been made.
1
Issue 2
947178

Advertisement

loading
Need help?

Need help?

Do you have a question about the PagePac V-5331210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Valcom PagePac V-5331210

  • Page 1 ® PagePac Issue 2 30 WATT SUSPENDED-RADIAL HORN (70V) V-5331210 INTRODUCTION Horn speakers that produce high sound levels are capable of covering large noisy areas. Minimum effective mounting height for a horn is critical. The Suspended-Radial Horn is used when 360° sound dispersion pattern is required. NOTE: Speaker is provided with 10’...
  • Page 2 (DO NOT FORCE set available and call from the job site. Call (540) PAST #7) 427-3900 and ask for PagePac Technical Sup- port, or call (540) 427-6000 for Valcom 24-hour Automated Support or visit our websites at http://www.pagepac.com and www.valcom.com. FIGURE 1...
  • Page 3 30 WATT RADIAL HORN PROJECTION DISTANCE WATTAGE SETTINGS FOR 70 VOLT SPK DISTANCE SHOWN IS THE RADIUS OF CIRCLE OR DISTANCE FROM SPK NOISE SPL-120 LEVEL SPL-114 SPL-117 SPL-111 SPL-123 IN dB 15 WATT 1.8 WATT 3.7 WATT 7.5 WATT 30 WATT 75** 70 dB...
