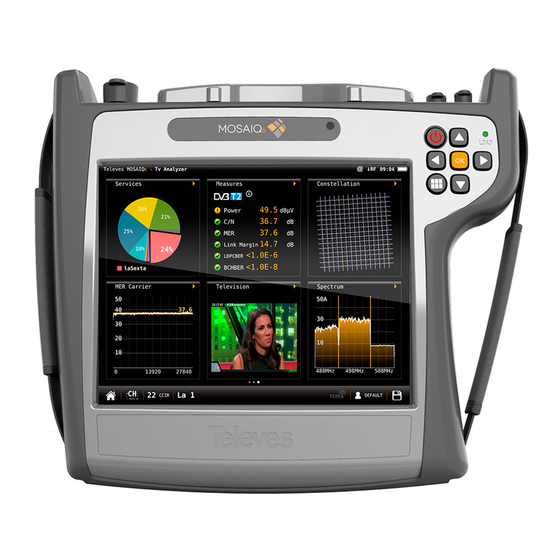

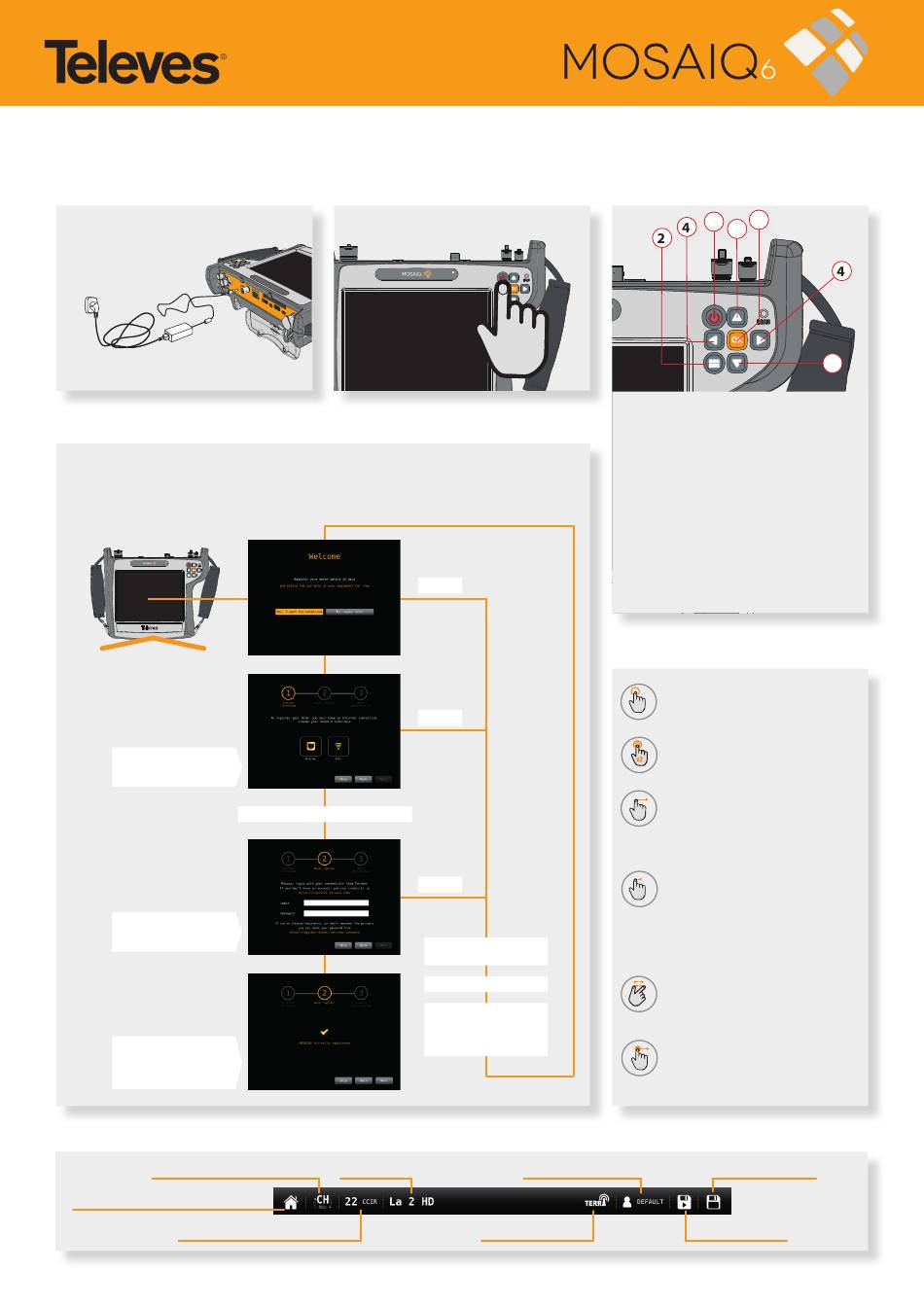

Televes MOSAIQ6 Quick Manual

Multi-touch Meter/Analyser
1.- Battery charge
3.- Registration process
First of all, please, register yourself on our website (https://register.televes.com/).
You will need your user name and password to register your MOSAIQ6.
Follow the steps shown in the screen. Further details in the user manual.
The first time you turn your
MOSAIQ6 on, you will see
a message asking you to
register your MOSAIQ6 in
our web within 30 days.
You must have connection
to the internet.
Select Ethernet or Wi-Fi.
Enter the user name and
password you use on our
website.
Registration completed
successfuly.
You get the warranty
extension for free
6.- Bottom bar
Tap to change channel/freq. tuning
Tap to direct access to TV Analyser feature
Tap to change tuned channel
2.- ON/OFF
MOSAIQ6 is connected to the internet
Tap to change selected service
ON
OFF (>3 sec.)
No
Skip
Skip
Press skip to cancel the
registration process.
You can use your MOSAIQ6
During the next 30 days,
each time you turn your
MOSAIQ6 on, the message
will appear.
Tap to change user profile
Tap to change band
Quick Guide
4.- Keyboard
1 3 5
1. Device ON/OFF button: To turn the
equipment off, press and hold for more
than 3 seconds. If the MOSAIQ6 is ON,
press ON/OFF button to enable/disable
the touch-screen
2. Menu button: First press: features
menu is shown. Second press: context
menu is shown. Third press: all menus
are hidden
3. Up/Down buttons: Changes channel
4. Left/Right buttons: Changes screen in
multi screen features
5. OK button: Selects an option
5.- Gestures
Tap: one fast touch with one
finger
Select menu/option/check.
Double tap: two fast consecutive
touches with one finger
Widget <= > Full screen.
Swipe: short swipe with one
finger
Shows menus (see section 8.-
Menus)
Spectrum = > changes channel.
Drag: drag with one finger
Main menu wheel = > feature
search.
TV and Radio Analyser = > switches
between screens.
Spectrum/Echoes/Measurements
= > moves markers.
Pinch/Spread: pinch/spread two
fingers on the screen
Spectrum = > changes span.
Constellation = > zoom in/out.
Drag and drop
Spectrum = > changes tuned
channel, dropping it to the centre
of the spectrum.
Tap to save LOG
Tap to run MacroLOG
3
