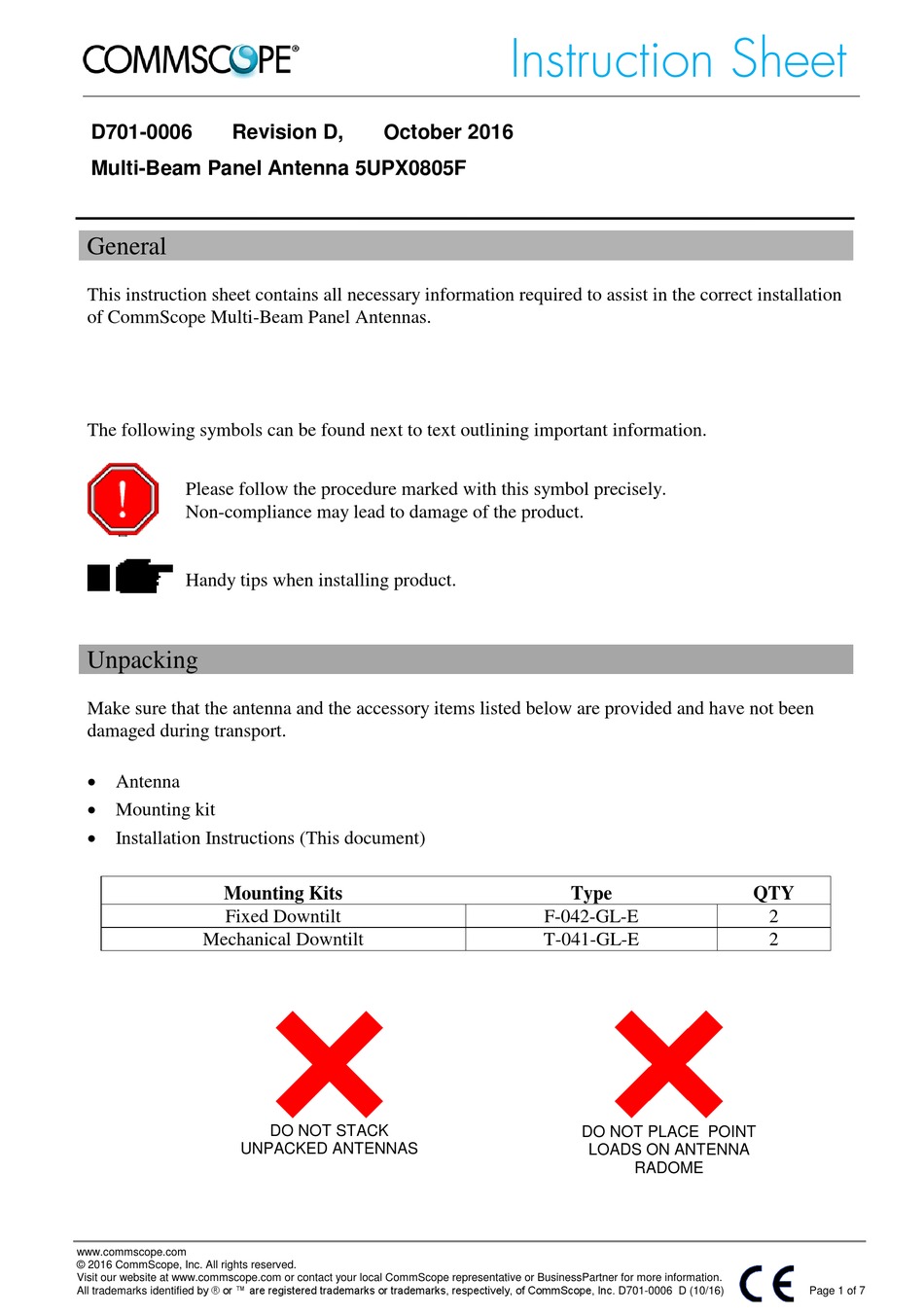

D701-0006
Revision D,
Multi-Beam Panel Antenna 5UPX0805F

General

This instruction sheet contains all necessary information required to assist in the correct installation
of CommScope Multi-Beam Panel Antennas.
The following symbols can be found next to text outlining important information.
Please follow the procedure marked with this symbol precisely.
Non-compliance may lead to damage of the product.
Handy tips when installing product.

Unpacking

Make sure that the antenna and the accessory items listed below are provided and have not been
damaged during transport.
 Antenna
 Mounting kit
 Installation Instructions (This document)
Mounting Kits
Fixed Downtilt
Mechanical Downtilt
UNPACKED ANTENNAS
www.commscope.com
© 2016 CommScope, Inc. All rights reserved.
Visit our website at www.commscope.com or contact your local CommScope representative or BusinessPartner for more information.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. D701-0006 D (10/16)
October 2016
DO NOT STACK
Type
F-042-GL-E
T-041-GL-E
DO NOT PLACE POINT
LOADS ON ANTENNA
RADOME
QTY
2
2
Page 1 of 7
